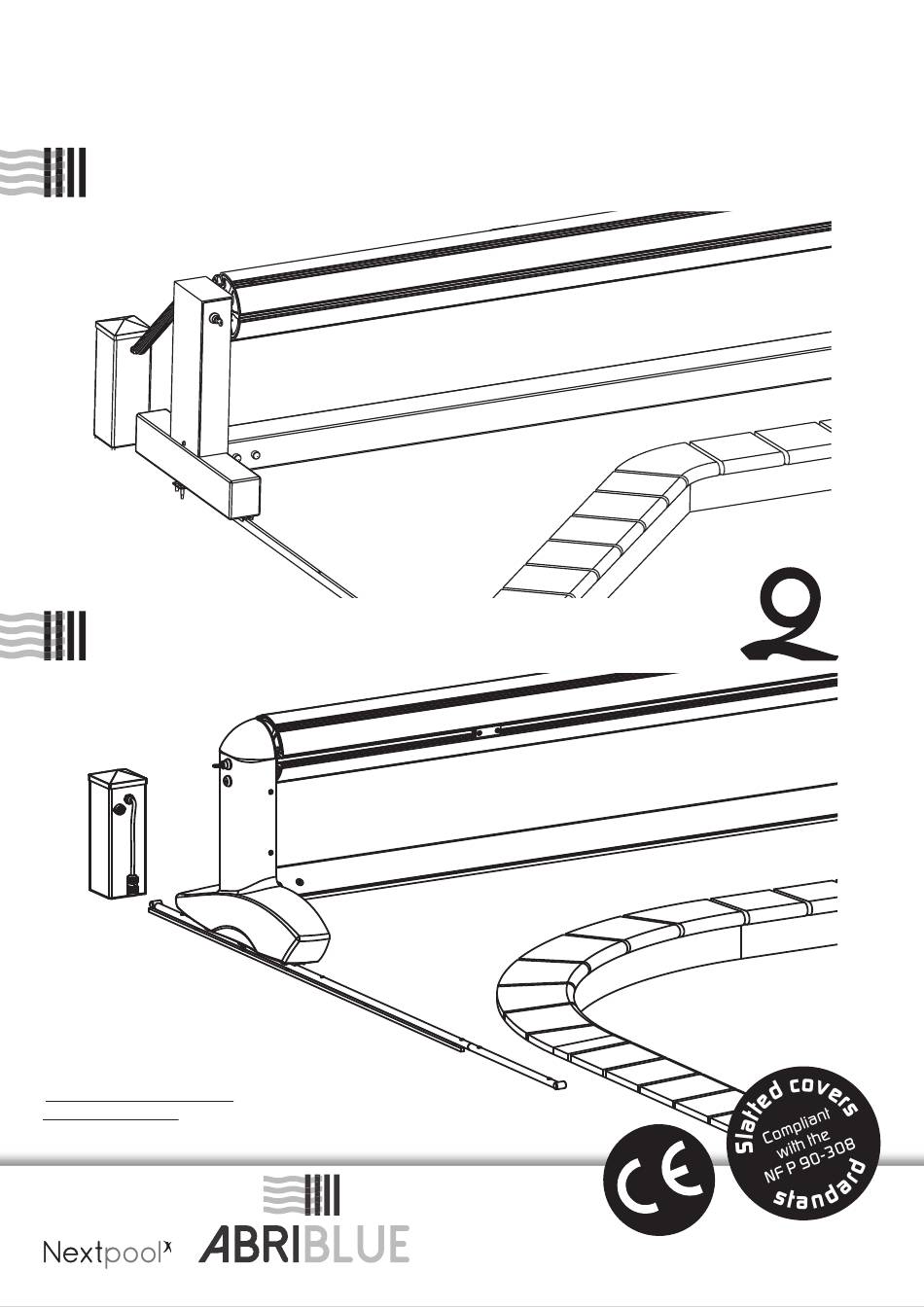

- Page 1 ABOVE WATER SLATTED SAFETY COVER OPEN SURF System ® OPEN SURF System ® Installation manual Please read carefully and keep available for later use 01/2022 Version AE-12-205-6EN/01-2022...
- Page 2 FOREWORD This manual is intended for the person who installs and commissions an ABRIBLUE slatted safety cover. This manual must then be given to the pool owner along with the safety and user instructions so that it is available for subsequent use.
-
Page 3: Table Of Contents
3/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover C O N T E N T S 1. Preparing the pool 1.1 Electric connections and cable passages 1.2 Building work 1.3 Squaring checks 2. -
Page 4: Preparing The Pool
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 4/22 1. Preparing the pool 1.1 Electric connections and cable passages 1.1.1 Power supply box (for a wired and a stand-alone version) Fig. -
Page 5: Squaring Checks
5/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover 120 mm Fig. 3 1.2.3 Skimmer When possible, plan to place the skimmers on the pool widths and not on the lengths in order to facilitate the movement of the cover. -
Page 6: Delivery And Reception
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 6/22 2. Delivery and Reception 2.1 Delivery Fig. 5 2.1.1 Plan the presence of 2 to 6 persons, or use a handling device to handle the cover. The cover is delivered in a non-recoverable wooden container 5:00 measuring at least 40 cm more than the width of... -
Page 7: Assembling The Open Surf
7/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover 3. Assembling the OPEN SURF 3.1 Composition of the rails (SURF 1 and 2) Fig. 7 3.1.1 The rail is in 2 parts, one 2.5 m part which can be 260 mm recut to length and a 0.5 m part which fits into the 2.5 m part. - Page 8 Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 8/22 Fig. 12 - Next refit it and fix it using the spacer and the CHC M6 x 40 screw. Fig. 12 Fig.
-
Page 9: Fixing The Stand (Surf 1 And 2)
9/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover 3.3.2 2 rail Fig. 19 Fig. 17 Power supply stand - Place the rail parallel to the other. Place the ... -
Page 10: Fixing The Moving Rail And Retaining Stop (Surf 1 And 2)
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 10/22 3.5 Fixing the moving rail and retaining stop Fig. 23 (SURF 1 and 2) - Next mark all the holes and drill using a Ø 6 mm bit and fit the M5 anchors with the FHC M5 x 35 screws Fig. -
Page 11: Removing The Covers: (Surf 1 And 2)
11/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover Fig. 25 Fig. 28 - Mark all the holes using a marker and drill Ø 8 mm 3.7.2 Removing Surf 2 covers: holes except for the centre hole which is Ø... -
Page 12: Cutting The Pool Sides
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 12/22 12 12 3.8 Cutting the pool sides 3.9 Removing the solar panel (OPEN SURF 2 solar) Fig. 29 Dismantle the motor cover (see § 3.6) to access the Cut the ends of the pool coping (if it overhangs the connectors. -
Page 13: Final Overall Dimensions Of The Open Surf2 Slatted Cover
13/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover 3.10 Final overall dimensions of the OPEN SURF2 slatted cover Roller shaft dimensions = Pool width + 596 mm Beam width = Pool width + 636 mm Centre distance of rails = Pool width + 700 mm Overall dimensions = Pool width + 910 mm Pool length... -
Page 14: Electric Connections
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 14/22 4. Electric connections Schéma électrique Surf modèle filaire 4.1 Cabled model OPEN SURF cabled model electric diagram. Have the electric connections made by a qualified Noir Black technician in compliance with current standards. -
Page 15: Stand-Alone And Stand-Alone Solar Models
15/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover Schéma électrique Surf modèle autonome et 4.2 Stand-alone and stand-alone solar models autonome solaire OPEN SURF stand-alone and solar stand-alone Black/white Noir/blanc model electric diagram Black... -
Page 16: Solar Cabled Model
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 16/22 4.3 Solar cabled model Schéma électrique Surf modèle filaire solaire OPEN SURF cabled solar model electric Black/white Noir/blanc diagram Black Noir Blue Bleu M22 K10... -
Page 17: Limit Switch Adjustments
17/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover 6. Limit switch adjustments 6.3 Adjustment of the end of rolling stop Fig. 36 Use the key switch to roll in the cover: if the gear motor 6.1 End of unrolling stops by itself before the entire cover has been rolled Fig. -
Page 18: For The Solar Models
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 18/22 - Rectifier test: 24 V DC (Direct Current) on the - If the voltage measured is greater than 24 V, check square rectifier: the "+"... -
Page 19: For All Models
- If, after these tests, the motor will still not run, this indicates a motor defect. This can be the result - The installer explains the operation of the ABRIBLUE of a power surge due to a thunder storm, a faulty cover to the end user and informs him/her of the connection, or a defective component. -
Page 20: Appendix: Solar Regulator
Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover - 20/22 10. Appendix: Solar regulator 10.1 Regulation operation 10.1.1 The regulator emits sound signals to warn the user - The power supply to the motor comes from two of a change in the state of the batteries: electronically regulated batteries supplied by a ... -
Page 21: Appendix: Reminder Of Installation Rules
21/22 - Installation instructions for the OPEN SURF System and OPEN SURF System 2 above-water automatic slatted safety cover 11. Appendix: reminder of 11.3 Projected shade and surrounding vegetation installation rules PLEASE REMEMBER: The SOLAR PANEL must not be in any SHADE from an object or the surrounding vegetation. -
Page 22: Solar Kit Element Winterisation
ENERGY of 168 Wh (E = P x t = U x I x t = 24 x 7 x 1 = 168 Wh). Product: OPEN SURF System® 1 OPEN SURF System® 2 Company: AS POOL Address: ZAC de la Rouvelière F-72700 SPAY- LE MANS Phone: +33 (0)811 901 331 Fax: +33 (0)243 479 850 contact@abriblue.com www.abriblue.com... - Page 23 Slatted covers Safety instructions and user guide for the automatic pool cover Please read carefully and keep available for later use 01/2022 Version AE-12-018-12EN/01-2022...
-
Page 24: Safety Advice
Safety instructions and user guide for the automatic pool cover - 2/10 C O N T E N T S 1. Safety Advice 2. Slatted cover presentation 3. Advice for use 4. Upkeep advice 5. Maintenance advice 6. Winterisation advice 7. - Page 25 3/10 - Safety instructions and user guide for the automatic pool cover 2. Slatted cover presentation The cover is controlled using a control that is locked using a key or an access code placed in the immediate pool vicinity. 2.1 Automatic pool safety cover description Casing can cover the roller for a more aesthetic look or The automatic safety cover is composed of a floating to isolate the bathing area.
- Page 26 Safety instructions and user guide for the automatic pool cover - 4/10 Check that the pool water height is compliant with its operating level. Remove all floating objects from the pool or objects on the cover. ROLLING IN THE COVER: Before uncovering the pool, unlock the pool fastening systems.
-
Page 27: Advice For Use
• Remove all floating objects that could hinder the in order to avoid deforming it. correct operation of the ABRIBLUE cover during its closure, and lock the access to the pool using the • It is essential, for safety reasons, to remove the key blocking straps. -
Page 28: Upkeep Advice
15° between the outside air and the water in order to prevent them from warping The maintenance of the ABRIBLUE automatic cover (case of a highly heated pool in a cold environment: is at the expense and under the responsibility of the mountain for example). -
Page 29: Maintenance Advice
7/10 - Safety instructions and user guide for the automatic pool cover 5. Maintenance advice 3 For the OPEN range, remove the cover or casing or PVC cap on the motor side. Disconnect wires 1, 2, 3, and 4 of the motor cable in order to slide In the event of a malfunction or a repair preventing it completely towards the shaft and remove the the closure and the securing of the pool, take all... -
Page 30: Winterisation Advice
Safety instructions and user guide for the automatic pool cover - 8/10 7. Guarantee 6. Winterisation advice Our one year guarantee only covers the replacement Winterisation advice is described below, however, it is or the repair of a defective part as well as all defects the installer's responsibility to recommend a solution or faults in the context of the installation, use, depending on the availability of the customer and the... - Page 31 9/10 - Safety instructions and user guide for the automatic pool cover Guarantee The official guarantee is in the slatted cover's container with the commissioning documents. This guarantee must be returned to the address below within eight days of the commissioning of the product. User details Installer details Company: ................
- Page 32 ....................................................................................................................................................................................................................................................................................................................................................................................................Product: SLATTED COVER line Company: AS POOL Address: ZAC de la Rouvelière F-72700 SPAY- LE MANS Phone: +33 (0)811 901 331 Fax: +33 (0)243 479 850 contact@abriblue.com www.abriblue.com...
