What's in the box?
(1) Main
antenna
boom
Assemble the antenna
1. Attach the balun housing and middle element to the antenna boom.
Line up the holes in balun housing/middle element with the holes near the middle of the boom.
Place 2 screws through the balun housing/middle element and boom as shown. Tighten the screws
so that the balun housing/middle element is securely in place.
Antenna
boom
Holes

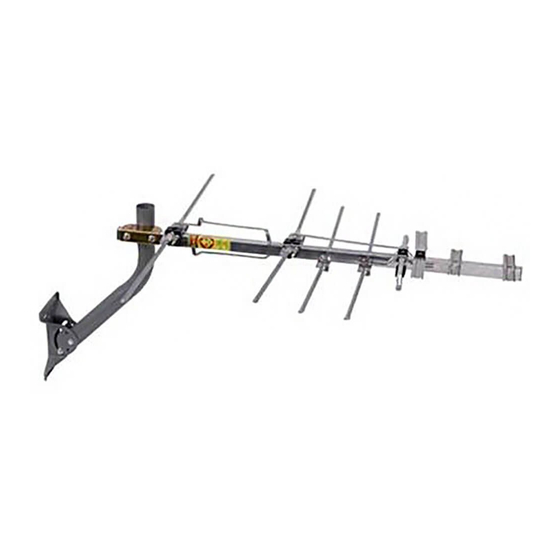

MINI YAGI
HD ANTENNA
User's Guide
(1) Rear element
(1) Balun housing and
middle element
(3) Screws
ANT721E US IB 01
(1) U-bolt
(1) Mast clamp
(12) Element
end caps
(2) Boom end
caps
Balun housing /
middle element
Screws
(2) Wingnuts
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI YAGI and is the answer not in the manual?

Questions and answers

Summary of Contents for RCA MINI YAGI

  • Page 1 ANT721E US IB 01 MINI YAGI HD ANTENNA User’s Guide What’s in the box? (1) Main (1) U-bolt (2) Wingnuts (1) Rear element antenna boom (1) Mast clamp (1) Balun housing and middle element (12) Element end caps (3) Screws...
  • Page 2 2. Attach the rear element to the antenna boom. Slide the rear element halfway through the last hole of the antenna boom. Line up the hole on the bottom of the rear element with the hole on the bottom of the antenna boom. Place the last screw through the boom and rear element.
  • Page 3: Mount The Antenna

    Mount the antenna 1. Assemble the mounting clamp on the antenna. Insert the end of the antenna boom into one side of the mast clamp as shown here. Mast clamp Antenna (bottom) Place the U-bolt through the holes on both sides of the mast clamp. Antenna (bottom) U-bolt Screw the two wingnuts on the U-bolt so that the mounting bracket is held on the antenna.
  • Page 4: 12 Month Limited Warranty

    2. Mount the antenna onto a mast (not included). Loosen the wingnuts to allow enough space for the mast to pass through the mounting clamp. Then tighten the wingnuts so that the mounting clamp holds the antenna in place on the mast.
  • Page 5: Guía De Usuario

    MINI YAGI ANTENA HD Guía de usuario ¿Qué se incluye en la caja? (1) Perno (1) Boom (2) Tuercas en “U” (1) Elemento posterior de antena mariposa principal (1) Abrazadera (1) Alojamiento del balun del mástil y elemento medio (12) Tapas...
  • Page 6 2. Coloque el alojamiento posterior en el boom de antena. Deslice el elemento posterior hasta la mitad a través del último orificio del boom de antena. Alinee el orificio ubicado en la parte inferior del elemento posterior con el orificio ubicado en la parte inferior del boom de antena.
  • Page 7 Realice el montaje de la antena 1. Coloque la abrazadera de montaje en la antena. Inserte el extremo del boom de antena en uno de los lados de la abrazadera del mástil, tal como se muestra aquí. Abrazadera del mástil Antena (parte inferior) Coloque el perno en “U”...
  • Page 8 2. Coloque la antena en un mástil (no incluido). Afloje las tuercas mariposa para permitir que exista suficiente espacio para que el mástil pase a través de la abrazadera de montaje. A continuación, apriete las tuercas mariposa de forma tal que la abrazadera de montaje sujete la antena en su lugar en el mástil.
