Puricom VYRTA direct flow User Manual

Equipment reverse osmosis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

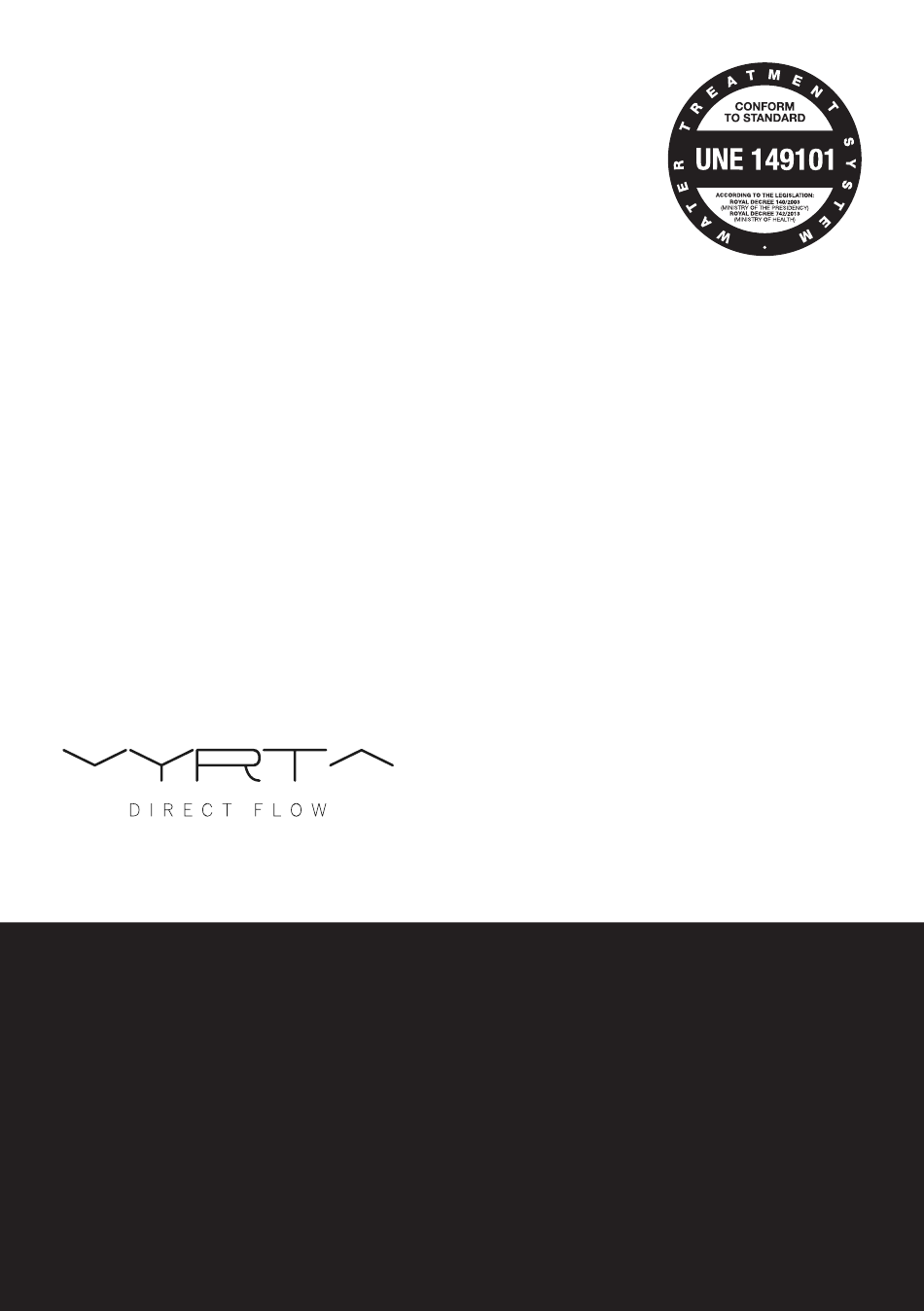

USER MANUAL
EQUIPMENT
REVERSE OSMOSIS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VYRTA direct flow and is the answer not in the manual?

Questions and answers

Related Manuals for Puricom VYRTA direct flow

Summary of Contents for Puricom VYRTA direct flow

  • Page 1 USER MANUAL EQUIPMENT REVERSE OSMOSIS...
  • Page 3 Index User manual Technical manual Sanitation procedure Technical Data sheet...

  • Page 4: Main Features

    USER MANUAL FOR REVERSE OSMOSIS EQUIPMENT 0. MAIN FEATURES CLICK ELECTRONIC ADAPTER FAST CONNECTIONS GREATER SECURITY AND MAXIMUM SECURITY AND EFFICIENCY FILTER DOUBLE CONTROL FLOW AUTOMATIC NOTIFICATION HIGHER FLOW RATE MAINTENANCE OF DISPENSED WATER SOLENOID DIRECT VALVE ACCESS IMMEDIATE CONTROL EASE OF ACCESS SAFETY MESH AND MAINTENANCE...

  • Page 5: Prior Warnings

    1. INTRODUCTION 3. PRIOR WARNINGS Congratulations. You have acquired an excellent equip- ATTENTION: Read carefully the warnings des- ment for domestic water treatment. cribed in the corresponding section of the Tech- nical Manual. This equipment will help you improve the characteris- tics of your water.

  • Page 6: Basic Operation

    • It is recommended not to use aluminum utensils for cooking with osmotic water. 4. BASIC OPERATION The mains water to be treated enters the equipment through the sediment and carbon filter. In this stage of filtration, suspended particles, chlorine, its derivatives and other organic substances are retained.
  • Page 7 7. PROBLEM IDENTIFICATION AND RESOLUTION POSSIBLE CAUSE PROBLEM SOLUTION 1. Leak to the outside Several possible causes. Call technical support. of the unit 2. Zero production. 1. There is no water supply. 1. Wait for the supply to return. 2. There is no power supply. 2.
  • Page 8 TECHNICAL MANUAL FOR REVERSE OSMOSIS EQUIPMENT 1. MAIN FEATURES APPLICATION Water treatment Reverse osmosis Improvement of the characteristics of drinking water (which complies with the requirements of the European Direc- tive on water for human consumption 98/83 or its national versions in the different member states of the European Community).

  • Page 9: Commissioning And Maintenance

    • It is recommended that the water to be treated be de- The equipment full of water weighs more, the distribu- calcified or with a maximum hardness of 15 ºHF in order tion of weights in an uneven position could cause some to obtain an optimal performance of the equipment.

  • Page 10: Installation

    the carrier within a maximum period of 24 hours after � 16 mm the receipt of the goods. � The smart faucet su- ministered with the team Remove the equipment and accessories from the card- has a cable connection. board packaging, removing the corresponding protec- The use of a 16 mm bit for tions.
  • Page 11 5.2. INSTALLATION OF FILTERS there are no leaks (for 5 min approx.) • Remove protective plastic from filters. Open the dispenser faucet. The equipment should start and supply water. Turn off the faucet again and check · Install pre-filter number 1 (PP+CB) in position. that the equipment stops.
  • Page 12 RECOMMENDED MAINTENANCE CF Prefilter PP + CB: 12 months or 3600Lts. * RO membrane: 36 months or 12000 Lts. * Postfilter GAC: 12 months or 6000 Lts. * * Lts. Litres of water produced. Maintenance must be carried out by trained personnel, who must handle the equipment properly, as well as use original spare parts to maintain the characteristics, warranty, certifications and performance of the equi-...
  • Page 13 Hydraulic scheme. 1/4” 1/4” 1/4” � 3/8” 3/8” 1/4” 1/4” IN/FEED DRAIN...

  • Page 14: Sanitization Procedure

    SANITIZATION PROCEDURE 1. SANITATION ATTENTION: Extreme hygienic measures during the handling of filters, membrane and equipment components in contact with water. Wear disposable Necessary material: gloves or wash your hands as many times as necessary to avoid risks of equipment congestion. •...
  • Page 15 • Once the assembly is installed, keep the new manual inlet valve closed and open the inlet valve connected to the wall adapter (7). The measuring cup must be empty. • Pour 0.25 liters of Hydrogen Peroxide into the dosing glass interspersed at the entrance of the equipment (8).
  • Page 16 • Pay special attention to the sanitization of the faucet spout. Use the sanitizing spray (or failing that, hydrogen peroxide, dosing it in such a way that it penetrates the tap spout) and single-use drying kitchen paper. Spray the spray on the faucet nozzle (11), rub the faucet spout and nozzle with the disposable paper and do not touch it directly with your hands(12).

  • Page 18: Technical Characteristics

    TECHNICAL SHEET FOR REVERSE OSMOSIS EQUIPMENT 1. TECHNICAL CHARACTERISTICS APPLICATION Water treatment Reverse osmosis Improvement of the characteristics of drinking water (which complies with the requirements of the European Di- rective on water for human consumption 98/83 or its national transpositions in the different member states of the European Community).

  • Page 19: Hydraulic Scheme

    PP+CB Prefilter 1 x Combined sediments / carbon. � IN � OUT RO Membrane 1 x Membrane 800 GPD. � IN � OUT/PURE � WASTE Osmotic water flow: 2 lpm. Postfiltro GAC 1 x GAC Postfilter � IN � OUT Power: 24 VDC 5 A.
  • Page 20 HYDRAULIC CONNECTION SCHEME * For salinities above 1500ppm check with your dealer. ** Higher hardness may reduce the life and functioning of certain components. *** Maximum accumulation depending on the inlet pressure. **** The flow rates can vary by 20% depending on the temperature, pressure and specific composition of the water to be treated.
  • Page 21 3.2. FUNCTIONALITIES FUNCTION ACTIONS 1. Flushing on the Whenever electrically connected the system will flush the RO membrane during start of the machine. 30 seconds. When the machine has been idly operating for 24 hours, the system will wash the 2.

  • Page 22: Warranty

    4. WARRANTY 4. WARRANTY The distributor guarantees the equipment for a period of two years in the event of any non-compliance detected in the equipment, The distributor guarantees the equipment for a period of two years in the event of any non-compliance detected in the equipment, in accordance with Royal Decree 1/2007 of 16 November (revised text of the General Law for the Defence of Consumers and Users).
  • Page 23 5. INSTALLATION REGISTER SHEET NOTES TO THE TECHNICIAN/INSTALLER: read this manual carefully. If in doubt, contact your dealer’s Technical Support Service (T.A.S.). The data marked with the symbol * must be filled in by the technician/installer and transcribed by him/herself to the WARRANTY page. This sheet must be kept by the installer and may be requested by the distributor in order to improve after-sales service and customer service.

  • Page 24: Maintenance & Service

    6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND STAMP OF TECHNICIAN START-UP COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS...
  • Page 25 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND STAMP OF TECHNICIAN START-UP COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS...
  • Page 26 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND STAMP OF TECHNICIAN START-UP COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS...
  • Page 27 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND STAMP OF TECHNICIAN START-UP COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS...
  • Page 28 NOTES...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
