  • Page 1 FAIRCHILD SA227-AC AC-583 N3114G...

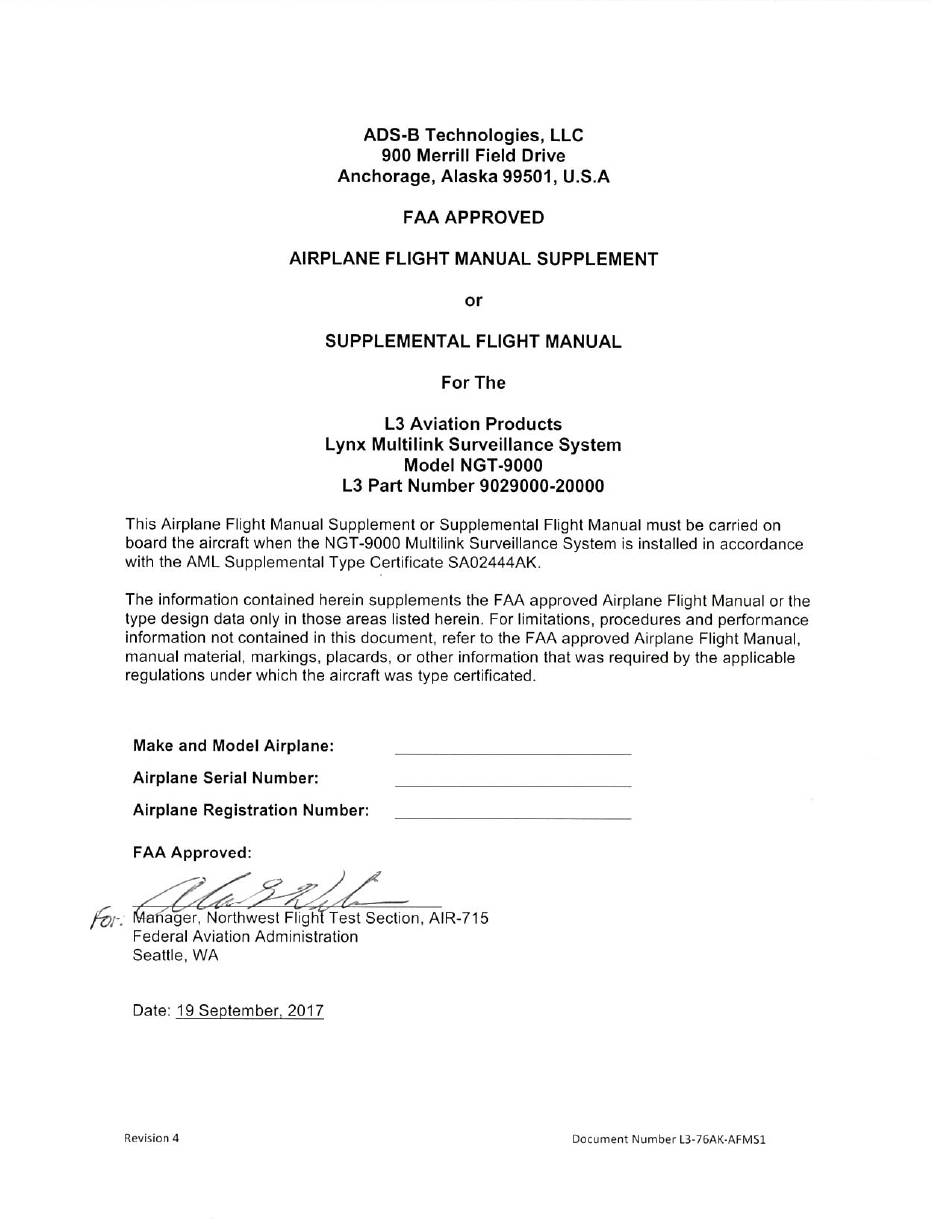

  • Page 2 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 FAA APPROVED AIRPLANE FLIGHT MANUAL SUPPLEMENT SUPPLEMENTAL FLIGHT MANUAL For The L3 Aviation Products Lynx Multilink Surveillance System Models NGT-9000 L3 Part Number 9029000-20000 RECORD OF REVISIONS Revision Date of Revision...
  • Page 3 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 This page intentionally left blank Revision 4 Issue: 9/19/17 Page 3 of 27 Document Number L3-76AK-AFMS1 FAA Approved...

  • Page 4: Table Of Contents

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 TABLE OF CONTENTS SECTION 1. GENERAL ......................6 Functional Description ....................6 NGT-9000 ADS-B Traffic Advisory System (ATAS) [Optional] ........7 NGT-9000 Terrain Awareness and Warning System (TAWS) [Optional] ...... 7 NGT-9000+ Traffic Awareness Overview [Optional] ............
  • Page 5 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 TABLE OF FIGURES Figure 1-1: Lynx NGT-9000 ......................6 Figure 1-2: Typical NGT-9000 Traffic Screen ................10 Figure 1-3: NGT-9000 Connections and Functions ..............12 Figure 1-4: Installation Configuration Data ................13 TABLE OF TABLES Table 1-1: Typical Target Symbology ..................

  • Page 6: General

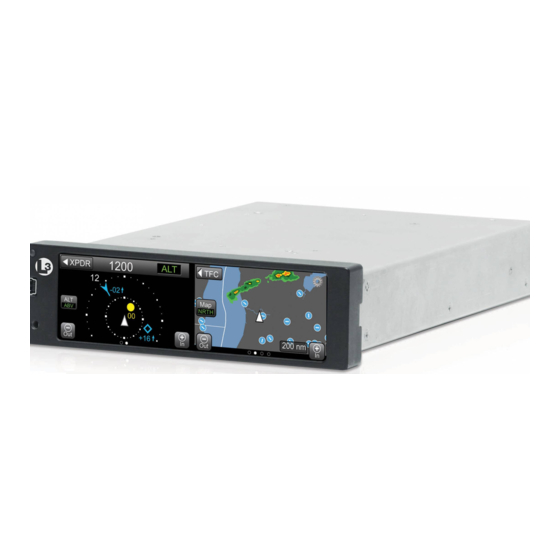

    GENERAL Functional Description The Lynx MultiLink Surveillance System (also referred to in this manual as the Lynx NGT-9000) is a Mode S Level 2 dens Class 1 Transponder with an integrated GPS receiver providing Automatic Dependent Surveillance-Broadcast (ADS-B) output using a 1090ES (Extended Squitter).

  • Page 7: Ngt-9000 Ads-B Traffic Advisory System (Atas) [Optional]

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 NGT-9000 ADS-B Traffic Advisory System (ATAS) [Optional] The ADS-B Traffic Advisory System (ATAS) is a passive system that monitors ADS-B, ADS-R and TIS-B ADS-B IN data and alerts the flight crew via on-screen alerts aural traffic calls and an optional Traffic Alert lamp to nearby aircraft and assists the pilot in the visual acquisition of aircraft that may represent a danger.

  • Page 8: Ngt-9000+ Traffic Awareness Overview [Optional]

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 There are four TAWS configurations available with the NGT-9000: • Disabled • TAWS B – Default Aural Phrases • TAWS B – Alternate Aural Phrases • Display Only – No Alerts When a TAWS configuration is enabled with audio, an Audio Acknowledge button will cancel the current aural announcement.

  • Page 9: L-Band Uat Antenna

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 L-Band UAT Antenna The L-Band antenna is used by the Lynx NGT-9000 to transmit and receive 1090 MHz ADS-B and receive 978MHz ADS-B (UAT). At least one L-band antenna must be located on the bottom of the aircraft.

  • Page 10: 1.13 Traffic Displays

    Check with an L3 approved avionics dealer or contact L3 Aviation Products for a current list of approved traffic displays. Figure 1-2: Typical NGT-9000 Traffic Screen 1.13.1 Traffic Priority Traffic is displayed on the screen using the following priority scheme: 1.

  • Page 11: Table 1-1: Typical Target Symbology

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 1-1: Typical Target Symbology * To promote cockpit commonality, installation configuration options are available to set the airborne PA & OT traffic color to either cyan or white. Revision 4 Issue: 9/19/17 Page 11 of 27 Document Number L3-76AK-AFMS1...

  • Page 12: 1.14 Interaction Of Major Components

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 1.14 Interaction of Major Components Figure 1-3 shows how the major components of the NGT-9000 connect to other aircraft systems. Figure 1-3: NGT-9000 Connections and Functions Revision 4 Issue: 9/19/17 Page 12 of 27 Document Number L3-76AK-AFMS1 FAA Approved...

  • Page 13: 1.15 Installation Configuration For This Aircraft

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 1.15 Installation Configuration for This Aircraft Figure 1-4 should be completed by a licensed installer. Model NGT-9000: P/N 9029000-20000 Model NGT-9000+: P/N 9029000-20000 Model NGT-9000D: P/N 9029000-20000 Model NGT-9000D+: P/N 9029000-20000 Aircraft Specific N3114G Tail Number:...

  • Page 14: Limitations

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 SECTION 2. LIMITATIONS Minimum Documentation The L3 Pilot’s Guide for the NGT-9000 Part Number 0040-17000-01 (Rev K, or later revision) must be carried on board the aircraft at all times. Minimum Equipment The NGT-9000 must have the following system interfaces in Table 2-1 fully functional in order to be compliant with the requirements for 14 CFR 91.225 and 91.227 ADS-B OUT operations:...

  • Page 15: Terrain Awareness

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Terrain Awareness a. Navigation must not be predicated on the use of TAWS; b. To avoid giving unwanted alerts, the TAWS must be inhibited when landing at an airport that is not included in the airport database;...

  • Page 16: Emergency Procedures

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 SECTION 3. EMERGENCY PROCEDURES Emergency Procedures 3.1.1 Terrain Warning Alert (Display Alert, Audio Alert, or Terrain Warning (Red) Lamp TAWS Display PULL UP, Audio Alert of “Terrain, Terrain; Pull Up, Pull UP” or “Obstacle, Obstacle;...

  • Page 17: Abnormal Procedures

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 3.1.4 Loss of GPS/SBAS Position Data Loss of GPS/SBAS indicated by a GPS failure message on the NGT-9000/CP-2500 and a PULL NGT CIRCUIT BREAKER. SLOW blinking ADS-B FAIL light (if installed) ..WAIT 5 SECONDS AND RESET.
  • Page 18 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions Message page contains The following internal tests do not create a fail message messages that do not in the system status page.
  • Page 19 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions • Display indicator ADS Traffic A traffic mode indicator that is shown when TAS/TCAS is ONLY (Models with failed (or not available) and ADS-B is operating.
  • Page 20 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions Display indicator TRAFFIC Traffic ADS-B is operational but heading and track are invalid or UNAVAILABLE (Amber text) GPS is failed.
  • Page 21 1. Aircraft is out of the selected TAS/TCAS altitude targets are not showing up range (Above/Below/Unrestricted) on the display. 2. The installed Lynx NGT-9000 does not have TAS/TCAS functionality. 3. The TAS/TCAS Configuration option was not enabled during installation. 4. The TAS/TCAS requires other aircraft to be equipped with equipped with an active ATCRABS transponder.
  • Page 22 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions No TIS-B Coverage Traffic The No Coverage Indicator is shown on the traffic Indicator display for the following reasons: 1.
  • Page 23 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions No FIS-B Coverage Weather The No Coverage Indicator is shown on the weather Indicator display for the following reasons: 1.
  • Page 24 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions • ADS-B Out Fail lamp Weather GPS is Acquiring (In Air – no previous position fix). flashes (1 second 1.
  • Page 25 Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Table 3-1: Troubleshooting for the Panel Mount NGT-9000 Symptom Screen Cause/Corrective Actions • Display indicator TAWS Displayed when an alert fault causing loss of terrain TERRAIN DISPLAY display. Alerting is still operational. FAILED (Amber text) 1.

  • Page 26: Normal Procedures

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 SECTION 4. NORMAL PROCEDURES The procedures described below are specific only to the NGT-9000. Reference the Pilot's Operating Handbooks and AFM Supplements for operating instructions specific to any installed displays or peripheral devices.

  • Page 27: Lightning Detection Sources [Optional]

    Airplane Flight Manual Supplement or Supplemental Flight Manual for the NGT-9000 Lightning Detection Sources [Optional] The WX-500 Stormscope is required for installation configured for lightning detection. The WX- 500 detects electrical discharges from thunderstorms within a 200 nmi radius of the aircraft. This information plots the location of the thunderstorms and is shown on the right application screen of the NGT-9000.
