VIBIA Swing Assembly Instructions page 2

1
R
S1
3
4
D
5
nd
2
Maintenance
-Use a slightly-wet cotton cloth for cleaning.
-In case of malfunction or damage, please contact the retailer who sold the lamp.
ASSEMBLY INSTRUCTIONS
2
N
R
S2
B
C
A
F
E
st
1
10 mm.
10 mm.
IMPORTANT NOTICE:
Caution: to avoid possible electrical shock, make
C
certain electricity is shut off at main panel before
wiring.

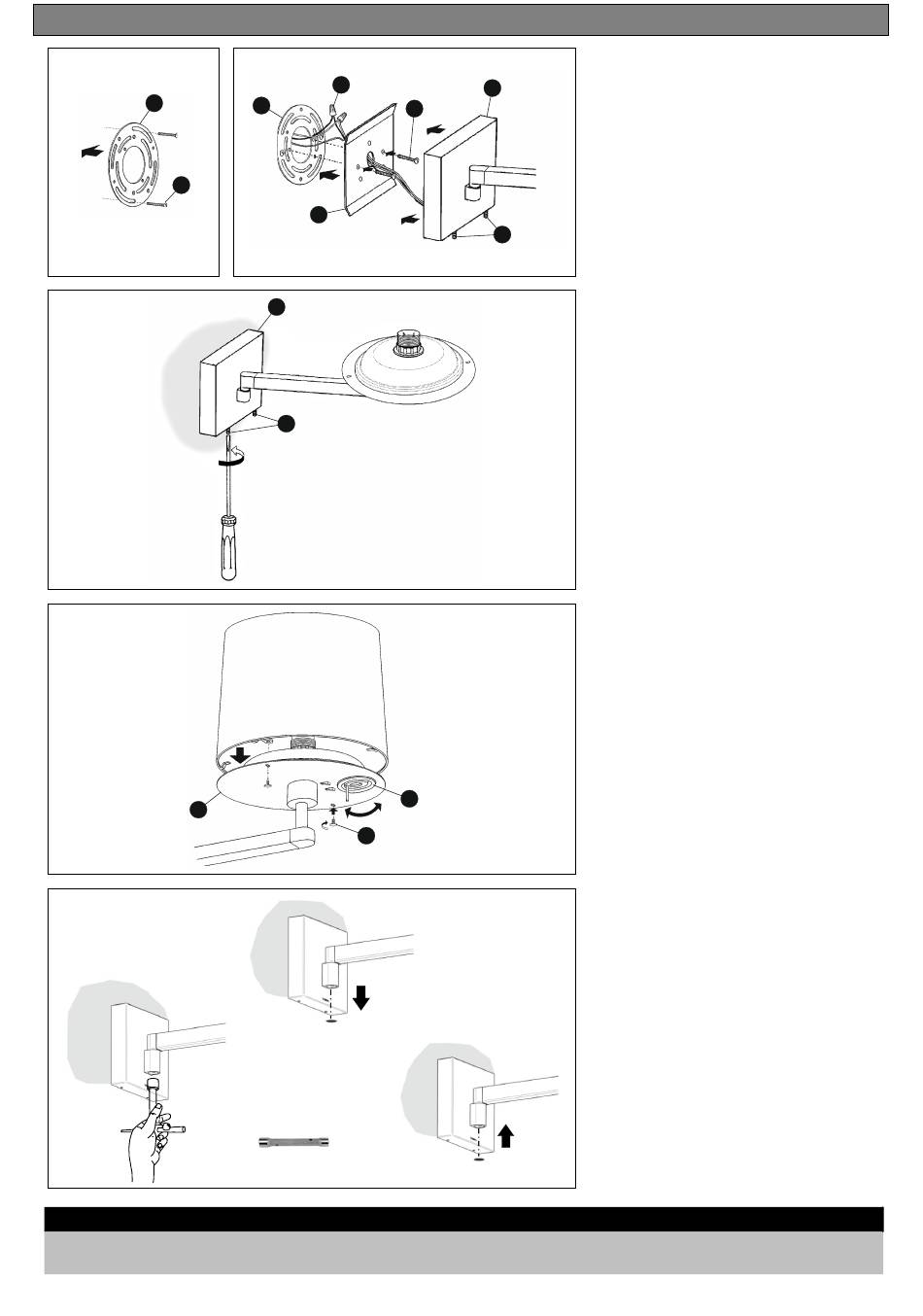

1. Making certain that the threads of the cross bar
screws are pointing away from the wall, secure the round
cross bar (R) to the junction box using the mounting
screws (S1).
2. Unfasten the dowels (A) to release the counter-plaque
(B). Connect the white fixture wire to the white wire of
A
the supply circuit. Connect the black fixture wire to the
black wire of the supply circuit. Secure with the wire nuts
(N) and tape connections with electrical tape. Connect
the fixture copper ground wire and the supply ground
wire to the ground screw on the round cross bar using
the ground terminal.
Push the connections and all excess wire to the interior
of the junction box. Spread the electrical splices on the
so that the black wires are on one side of the junction
box and the white wires on the other.
Secure the counter-plaque (B) to the round cross bar
using the screws (S2).
3. Fix the base (C) to the counter-plate (B) fastening the
dowels (A). In this way the lamp will be fixed to the wall.
4. After installing the bulb, position the shade on the
plaque (D) and fix it with the supplied screws (E).
NOTE: The spotlight (H) is orientable as indicated by the
arrow.
5. To adjust the stiffness of the movement, first remove
the cover as shown in the illustration. Second, make the
necessary adjustment using a 10mm socket spanner
and finally replace the cover.
rd
3
