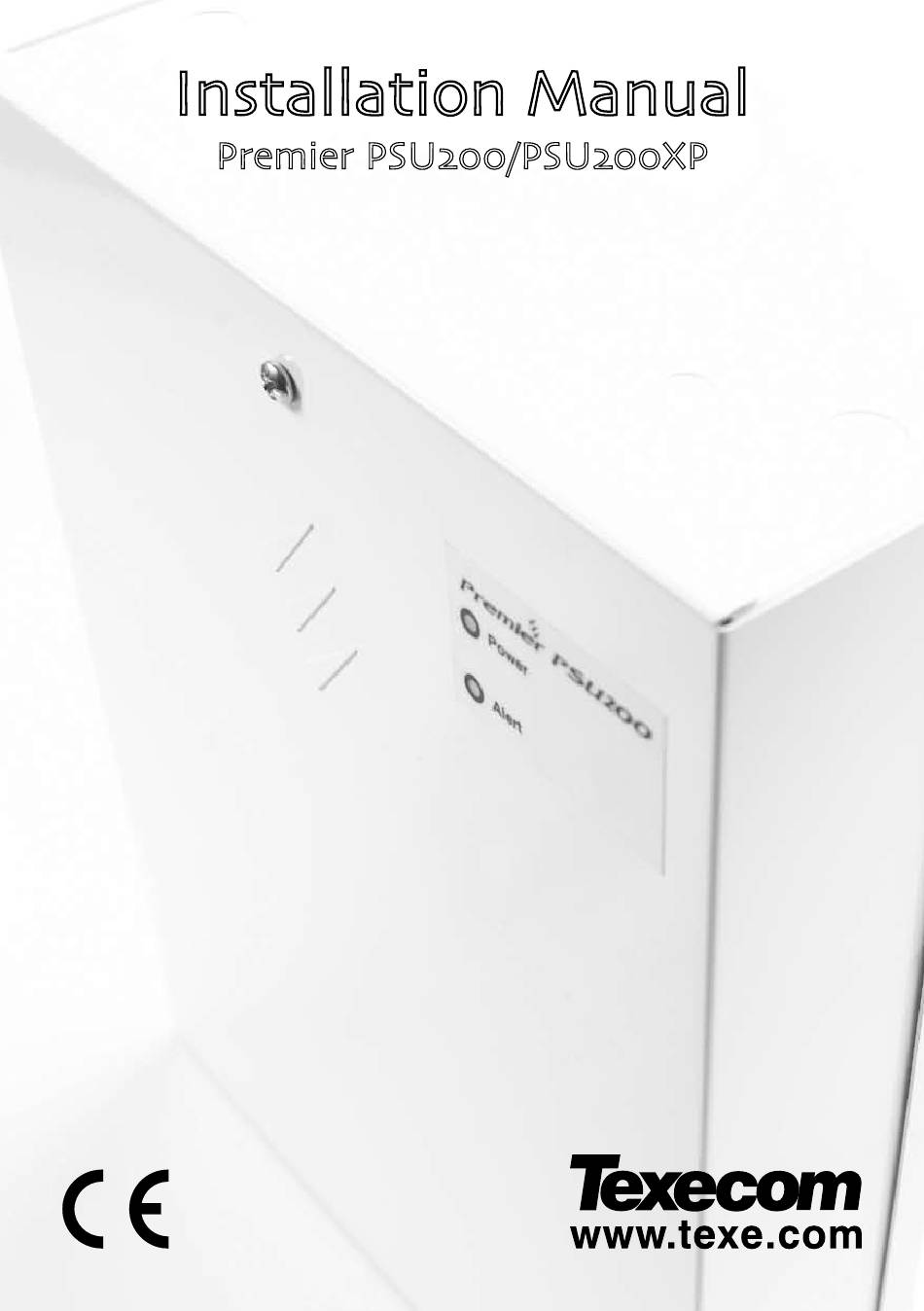

Installation Manual Premier PSU200/PSU200XP Issue 1...
Page 2
PSU200 & PSU200XP Installation Manual Introduction The Premier PSU200 is a standalone intelligent 2 Amp power supply unit designed to meet the requirements of Grade 3 under EN50131-6 and PD6662. The Premier PSU200XP is a PSU200 combined with a Premier 8XP zone expander to create a fully monitored power supply unit via the control panel network.
Page 3
PSU200 & PSU200XP Installation Manual NETWORK IN NETWORK OUT LED’s Remote Power 2 3 4 Kick Start 2 JP8 1 Load Batteries A = Ext Load B = 500mA Aux Input C = 500mA OUTPUTS Tamp Led Load Figure 1. PSU200 & PSU200XP Layout INS314...
Page 4
PSU200 & PSU200XP Installation Manual PCB Layout and Terminals The figure below shows the PCB layout of the PSU200 and PSU200XP: LED’s Kick Start 2 JP8 1 Load Batteries A = Ext Load B = 500mA C = 500mA Tamp Led Load Figure 2.
PSU200 & PSU200XP Installation Manual 18Vac from mains transformer. " Earth connection. Normally closed fault outputs and status led’s. Battery kick start switch. Battery 1 and 2 connections. & 12V output protection fuse (1.6A). Number of batteries connected. Normally closed tamper output. Alert Led disable input.
Page 6
PSU200 & PSU200XP Installation Manual Supply Output Two sets of terminals are provided to allow connection to auxiliary 12V devices. The output is protected by a 1.6A fuse. Tamper Protection The power supply is both front and back tamper protected by the use of a tamper switch which is connected to the PCB via a jumper plug JP2.
PSU200 & PSU200XP Installation Manual Standby Battery One or two 12V 7Ah batteries or one 12V 17Ah battery can be fitted inside the power supply case to provide continued operation in the event of a mains supply failure. The table below show various battery arrangements and recharge times against rated output (maximum continuous current) for the required standby period: Battery Rated Output (Amps)
PSU200 & PSU200XP Installation Manual Deep Discharge Protection The power supply has a deep discharge protection circuit that prevents the standby battery from being fully discharged when the mains supply has failed. The standby batteries will be electronically disconnected when the terminal voltage reaches 10.0V. When powering up the power supply without a mains supply (battery only), the ‘Kick- Start’...
Replace the front cover screw. Wiring Diagrams Premier PSU200XP Connected to Premier Control Panel For a list of supported control panels, see page 1. From Control Panel To Next Expander/Keypad Premier PSU200 Network In Network Out Premier 8XP (D5055-02) Com1...
Page 10
V7.0 onwards. Premier PSU200 Connected to a non Premier Control Panel The Premier PSU200 can be fully monitored by other makes of control panels, by using the fault and tamper terminals. The zones on the control panel will need to be programmed for PSU monitoring functionality.
As the Premier PSU200 and PSU200XP are not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the Premier PSU200 or PSU200XP failed to function correctly. Due to our policy of continuous improvement Texecom reserve the right to change specification without prior notice.
Page 12
Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1278 411707 Email: techsupport@texe.com...
