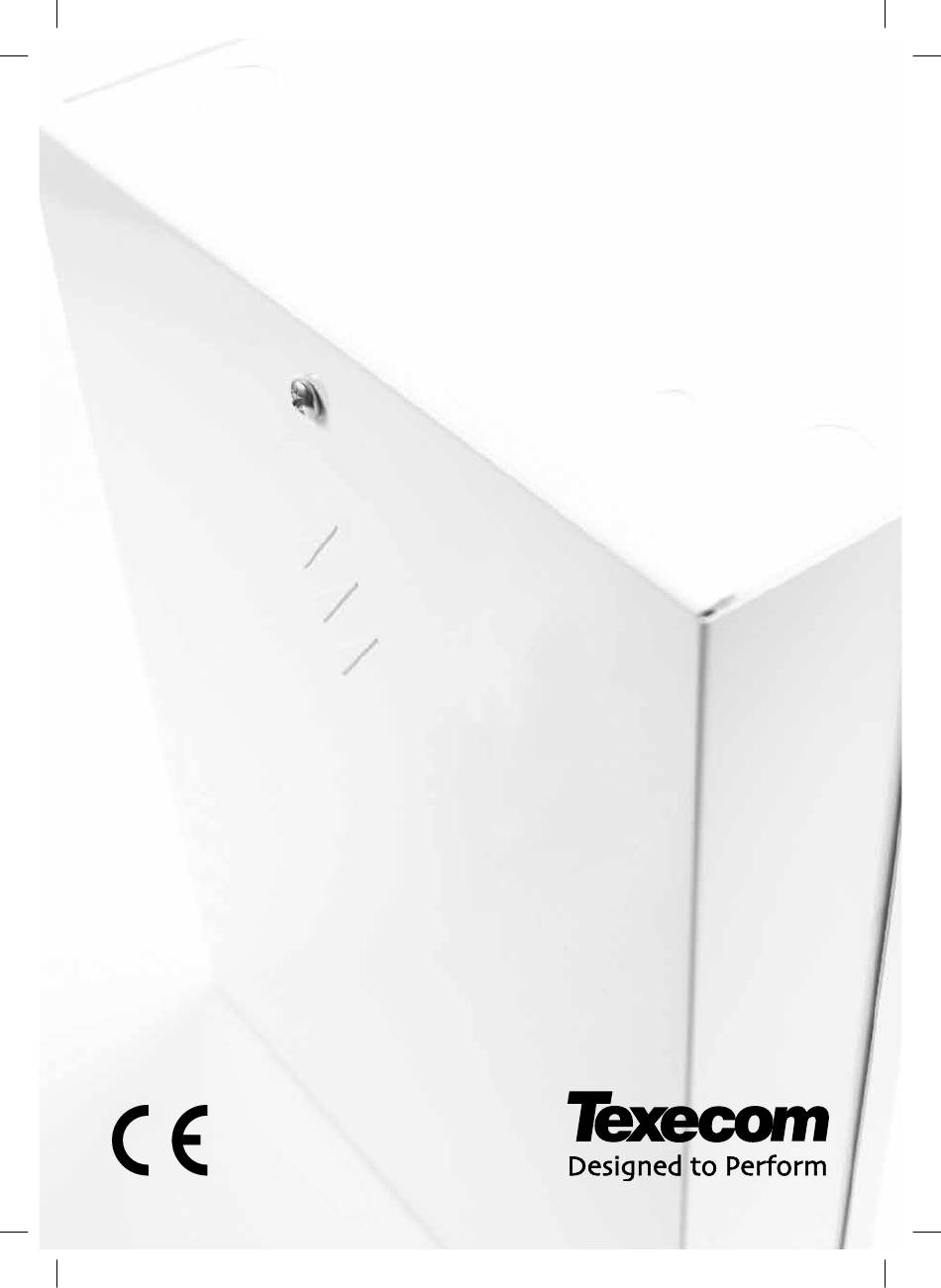

- Page 1 Installation Manual Premier Elite PSU200/PSU200XP INS314-3...
- Page 2 Premier Elite PSU200 & PSU200XP Installation Manual Introduction The Premier Elite PSU200 is a standalone intelligent 2.5 Amp PSU200 and PSU200XP Layout power supply. The Premier Elite PSU200XP is a PSU200 combined with a Premier Elite 8XP zone expander to create a Texecom Power Supply fully monitored power supply unit via the control panel network.
- Page 3 Premier Elite PSU200 & PSU200XP Installation Manual PCB Layout and Terminals The figure below shows the PCB layout of the PSU200 and Mains Supply Connection PSU200XP: The mains supply is connected to a 3 way fused terminal block, which is fitted with a 3.15A slow blow protection fuse.
-
Page 4: Standby Battery
Premier Elite PSU200 & PSU200XP Installation Manual Standby Battery One or two 12V 7Ah batteries or one 12V 17Ah battery can be fitted inside the power supply case to provide continued operation in the event of a mains supply failure. The table below show various battery arrangements and recharge times against rated output (maximum... -
Page 5: Installation
Premier Elite PSU200 & PSU200XP Installation Manual Pass all necessary cables through the cable entries and Installation fix the base to the wall using not less than 30mm x No 10 screws. Remove the screw from the front cover and carefully... -
Page 6: Specifications
Premier Elite PSU200 and PSU200XP are not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the Premier Elite PSU200 or PSU200XP failed to function correctly. Due to our policy of continuous improvement Texecom reserve the right to change specification without prior notice. - Page 7 Premier Elite PSU200 & PSU200XP Installation Manual Notes: INS314-3...
- Page 8 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
