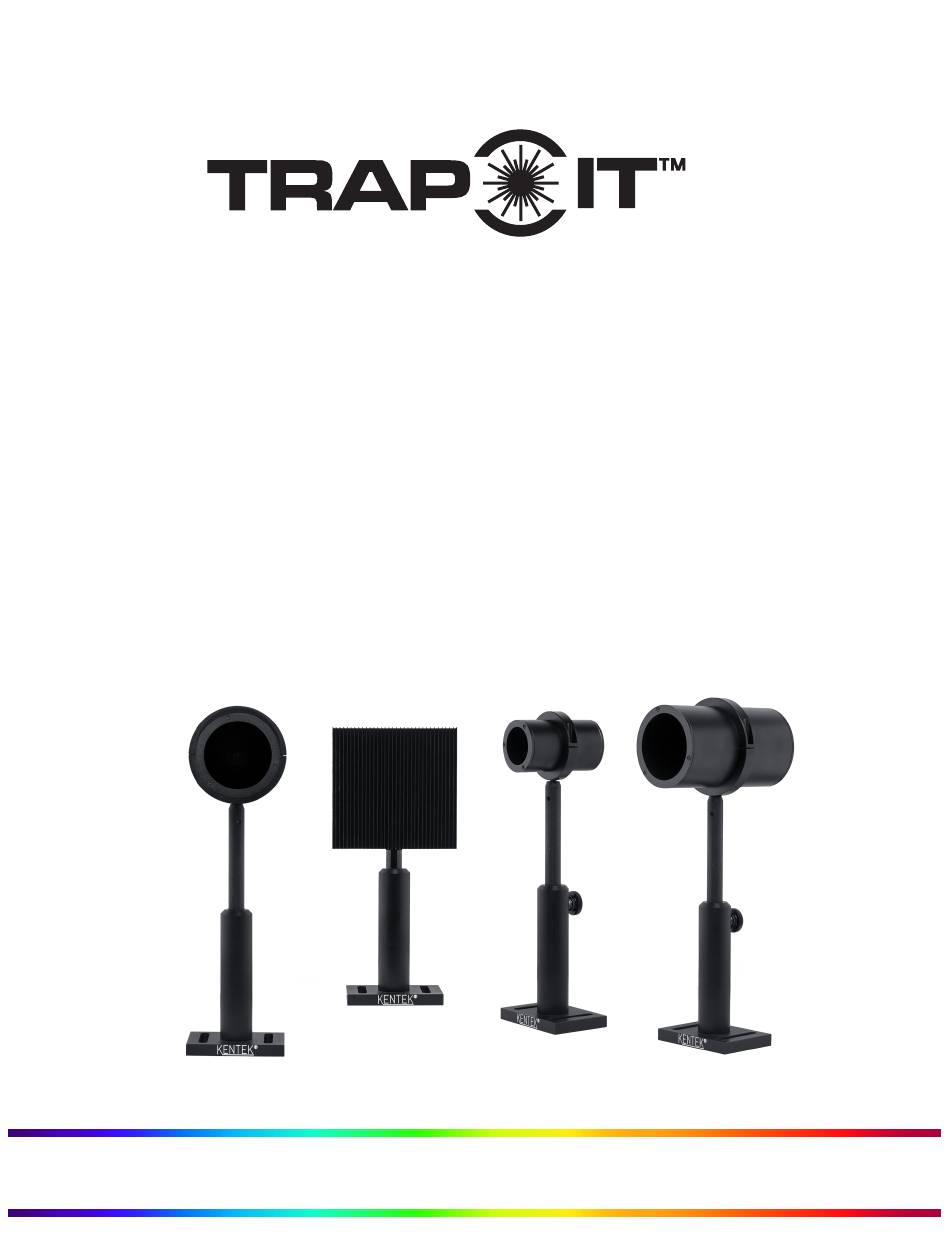

- Page 1 OPERATION MANUAL Caution: Always Wear Laser Protective Eyewear...
- Page 2 DESCRIPTION TRAP-IT™ low reflectance beam dumps and targets are designed to dissipate incoming laser power via heat dissi- pation. The surface finish provides < 3.5% reflectance from 190-10,600nm. Place these safety devices in a position along the optical beam path to provide a final beam stop.
-
Page 3: Laser Safety
2. Never place the product in a location above the maximum suggested power density as damage could occur to the product finish. 3. Position the laser beam centerline within the TRAP-IT™ target. 4. If this product is to be used as a control measure make sure it is fastened to the table to prevent it from being moved or knocked over. -
Page 4: Preventive Maintenance
• Verify that the absorbing target surface hasn’t been damaged by the laser. • Clean with ethanol, IPA, or acetone, very light pressure coating sensitive to physical damage. COMPLIANCE This product line is RoHS, Reach, ISO 9001:2015, AS9100 TRAP-IT® LR BEAM DUMP AND TARGET... -
Page 5: Warranty
WARRANTY Kentek warrants TRAP-IT™ products to be free from defects caused by faulty material or poor workmanship. Liability under this warranty is limited to the obligation to repair or, at Kentek’s sole option, to replace without charge, any part found to be defective under normal use within one year from date of invoice. - Page 6 3.54 x 3.54 inch [90 x 90mm] 190-10,600nm 50 watts Convection Cooled ABDLRT-50 20 watts/cm2 2.00 inch [50.8mm] 190-10,600nm 20 watts Convection Cooled STAND-ITM Optical Stand with M6 Thread TRAP-IT® LR BEAM DUMP AND TARGET TRAP-IT® LR BEAM DUMP AND TARGET...
- Page 7 Rev. 07/22 kenteklaserstore.com ©Kentek Corporation. All rights reserved.
