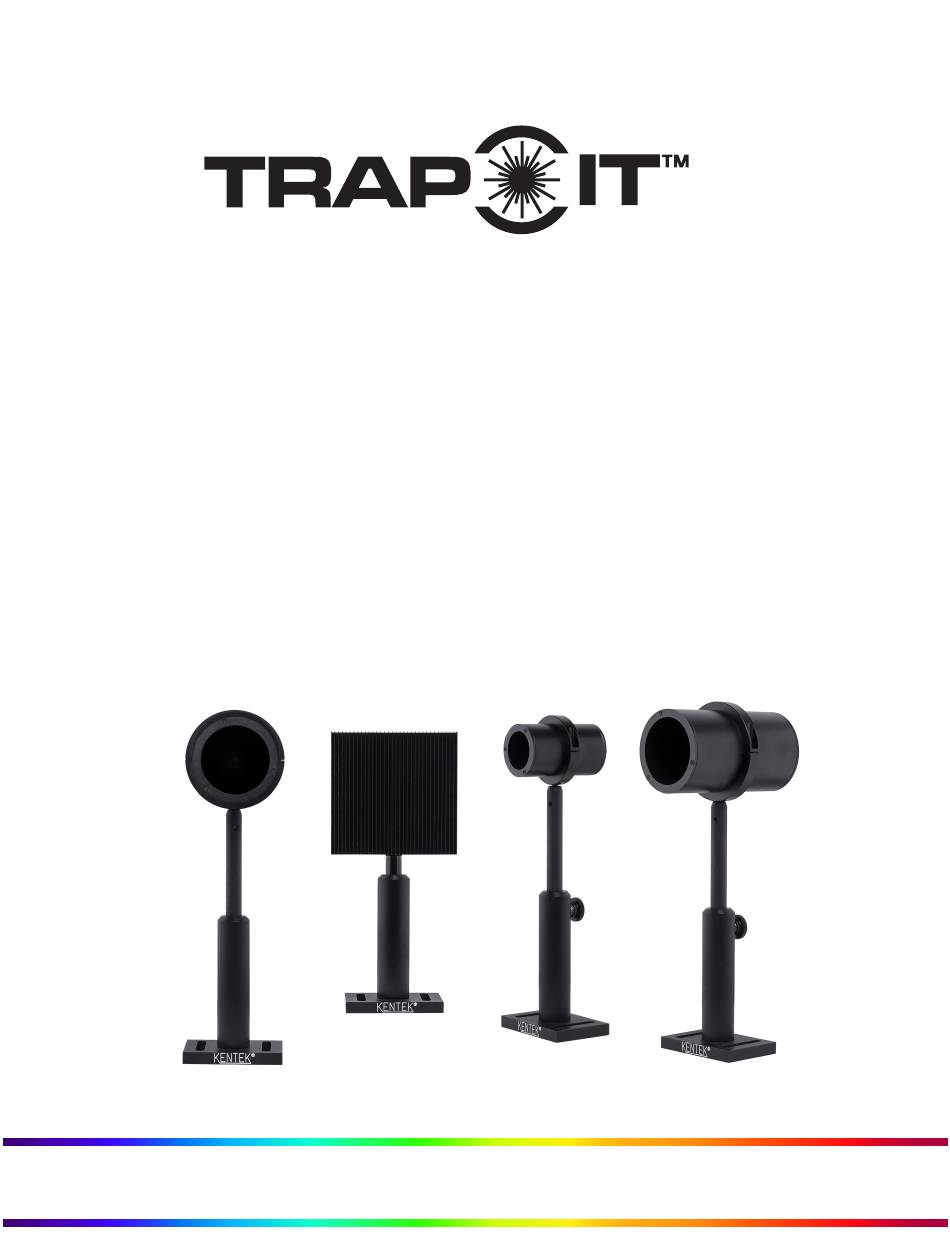

- Page 1 OPERATION MANUAL Caution: Always Wear Laser Protective Eyewear...
- Page 2 DESCRIPTION TRAP-IT™ Low Reflectance beam dumps are safety devices that dissipate incoming laser power. The surface finish pro- vides < 3.5% reflectance from 190-10,600nm. Place beam dumps in a position along the optical beam path to provide a final beam stop. For applications that range outside product specifications, we recommend users expand the beam size with a negative lens to lower the power density level.
- Page 3 Exposure) limits, there may be a significant risk of eye injury. Under such conditions, we recommend using appropriate laser protective eyewear. Laser protective eyewear must be evaluated in accordance with ANSI Z136.1 Standard for the Safe Use of Lasers. TRAP-IT® LR BEAM DUMPS...
- Page 4 2. Never place the product in a location above the maximum suggested power density, as damage could occur to the product finish. 3. Position the laser beam centerline within the TRAP-IT™ LR target. 4. If this product is used as a control measure, make sure it is fastened to the table to prevent it from being moved or knocked over.
- Page 5 • Verify that the absorbing target surface hasn’t been damaged by the laser. • Clean with methanol alcohol or acetone, use very light pressure as coating is sensitive to physical damage. COMPLIANCE This product line is RoHS, REACH, ISO 9001:2015, AS9100 compliant. TRAP-IT® LR BEAM DUMPS...
- Page 6 ABDLRT-90NP 20 watts/cm2 3.54 x 3.54 inch [90 x 90mm] 190-10,600nm 50 watts Convection Cooled ABDLRT-50 20 watts/cm2 2.00 inch [50.8mm] 190-10,600nm 20 watts Convection Cooled STAND-ITM Optical Stand with M6 Thread TRAP-IT® LR BEAM DUMPS TRAP-IT® LR BEAM DUMPS...
- Page 7 Rev. 04/23 kenteklaserstore.com ©Kentek Corporation. All rights reserved.
