sweezz STE-UNI Instruction Manual
Hide thumbs
Also See for STE-UNI:
- Mounting instructions (12 pages) ,
- Instructions for mounting (6 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for sweezz STE-UNI
Summary of Contents for sweezz STE-UNI
- Page 1 Sweezz instruction manual...
-
Page 2: Table Of Contents

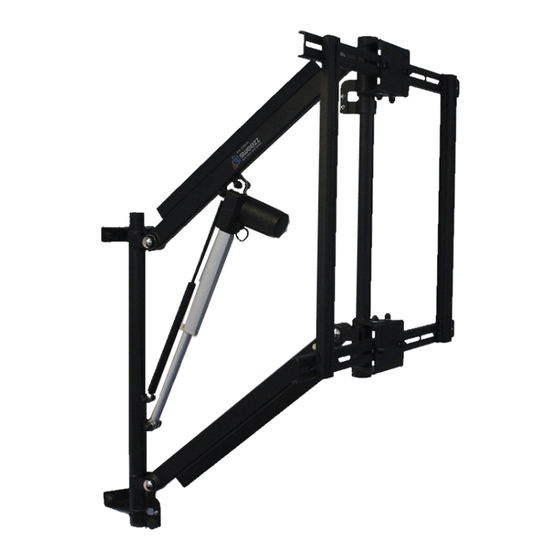

Contents Sweezz STE-UNI and STE-PLUS Mounting the frame Mounting frame with column Mounting Touchscreen Securing Lay-out Guarantee www.sweezz.com www.sweezz.com... - Page 3 The engine is ‘push only’. Your screen drops gradually and if there is any gas spring 500N resistance the motor goes into neutral. The maximum height adjustment is 68 cm. There are 2 types of Sweezz to suit max. weight 60kg different weights of touchscreen.
-
Page 4: Mounting The Frame
Comes with 2 expansion spring and motor in place and these must NOT be fully tightened. There must be room left for unhindered sockets M10 (KBS-04) movement when raising or lowering the Sweezz. Screw in place but DO NOT tighten fully! www.sweezz.com www.sweezz.com... -
Page 5: Mounting Touchscreen
Place the vertical profiles behind the screen. Pull the Sweezz down with your full weight against the Tip: Mount the screen on the Sweezz on a table; it can pressure of the gas spring; mount the screen. then be raised out of the box. -
Page 6: Lay-Out
Securing Lay-out Please take note of the height of the ceiling and other Make sure cables are protected. obstacles within range of the Sweezz. www.sweezz.com www.sweezz.com... -
Page 7: Guarantee
STE-UNI Guarantee Sweezz frame + universal touchscreen frame + mounting set STE-PLUS ± 97 x 88 x 14 cm (complete) + motor + gas absorber or gas spring STE-PLUS + Sweezz Electric ± 29 kg Guarantee 5 years/Jahre/ans/jaar. wall support BM-01 for Touch-Screens Motor/moteur 3 years/ Jahr/ans/jaar. - Page 8 Veuillez conserver aux instructions pour référence ultérieure. De handleiding s.v.p. bewaren voor latere raadpleging. Made in Holland Eur. Patent 2380060 and other patents © TeachYou BV / Sweezz.com Subject to change / Änderungen vorbehalten / Sous bénéfice d’ínventaire / Wijzigingen voorbehouden www.sweezz.com...
