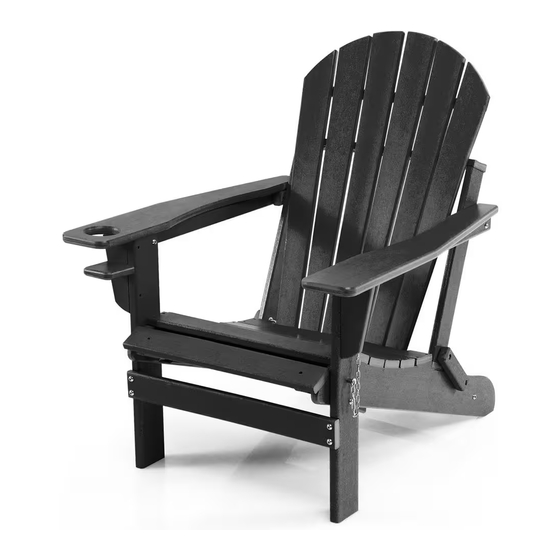

- Page 1 USER’S MANUAL NP10509 Folding Adirondack Chair THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Tools Required
NOTICE Do not over-tighten screws. (Insert all screws before tightening screws.) • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and nuts before use. •... - Page 3 M6x80mm M6x50mm M6 NUT WASHER BOLT SCREW x 12 x 12 ALLEN WRENCH WRENCH PARTS CHAIR LEG UPPER CHAIR BACKREST CHAIR SEAT CHAIR ARM FRONT RAIL LOCKING BLOCK FOOTREST BACK RAIL SUPPORTING LEG LEG RAIL x 2(270X43MM) x 1(345X38MM)
- Page 4 PRODUCT ASSEMBLY - OVERALL VIEW Look at following overall view of this chair and learn the exact position of each part to be assembled. Attach part D to part B Chair Seat with 1pc of No 4 bolt. Attach H with I 2pcs of No 2 bolt, No 8 washer and No 7 Nut.
- Page 5 Same as step 1, attach part D to part B Chair Seat with 1pc of No 4 bolt. Attach part H with 2pcs of No 1 bolt. After completing steps 1 and 2, stand the chair up. Attach part F to part D with 4pcs of No 2 bolt.
- Page 6 Attach part C to part D Chair Leg with 2pcs of No 4 bolt, No 8 washer and No 7 Nut. Attach part A to part C with 2pcs of No 5 bolt. Attach part G to part A and part B with 4pcs of No 3 bolt, No 8 washer and No 7 Nut.
