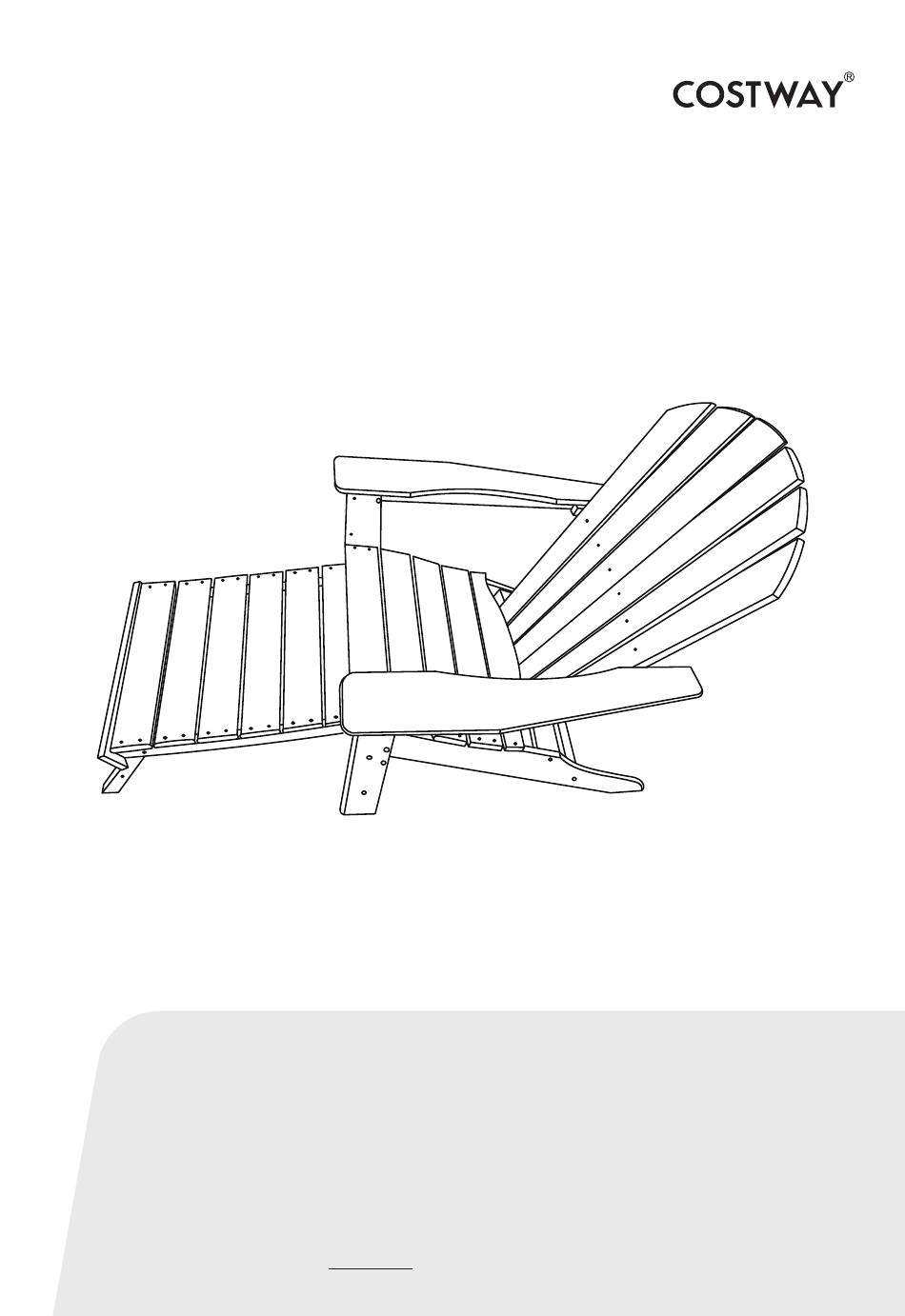

- Page 1 USER’S MANUAL Adirondack Chair NP10510 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Tools Required
NOTICE Do not over-tighten screws. (Insert all screws before tightening screws.) • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and nuts before use. •... - Page 3 HARDWARE M6x30mm M6x40mm M6x60mm BOLT BOLT BOLT 2pcs 8pcs 2pcs M6x50mm M6x80mm M6 NUT SCREW SCREW 8pcs 2pcs 4pcs M6 WASHER MRENCH ALLEN WRENCH 4pcs...
- Page 4 PARTS CHAIR CHAIR SEAT UPPER BACKREST CHAIR ARM CHAIR LEG FRONT RAIL BACK RAIL 2 pc LEG RAIL SUPPORTING LEG FOOTREST x 2(270X43MM) x 1(345X38MM)
-
Page 5: Product Assembly

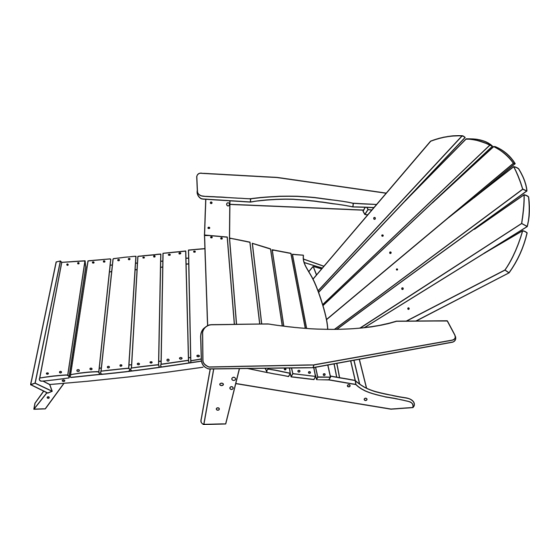

PRODUCT ASSEMBLY - OVERALL VIEW Look at following overall view of this chair and learn the exact position of each part to be assembled. PRODUCT ASSEMBLY 1. Attach part D to part B Chair Seat with 3pcs of No 2 bolt. - Page 6 2. Same as step 1, attach part D to part B Chair Seat with 3pcs of No 2 bolt. Attach part G with 2pcs of No 1 bolt. 3. After completing steps 1 and 2, stand the chair up. 4. Attach part F to part D with 2pcs of No 5 bolt.
- Page 7 5. Attach part C to part D Chair Leg with 2pcs of No 3 bolt, No 7 washer and No 6 Nut. 6. Attach part A to part C with 2pcs of No 4 bolt. Attach part A and part B with 2pcs of No 5 bolt.
- Page 9 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
