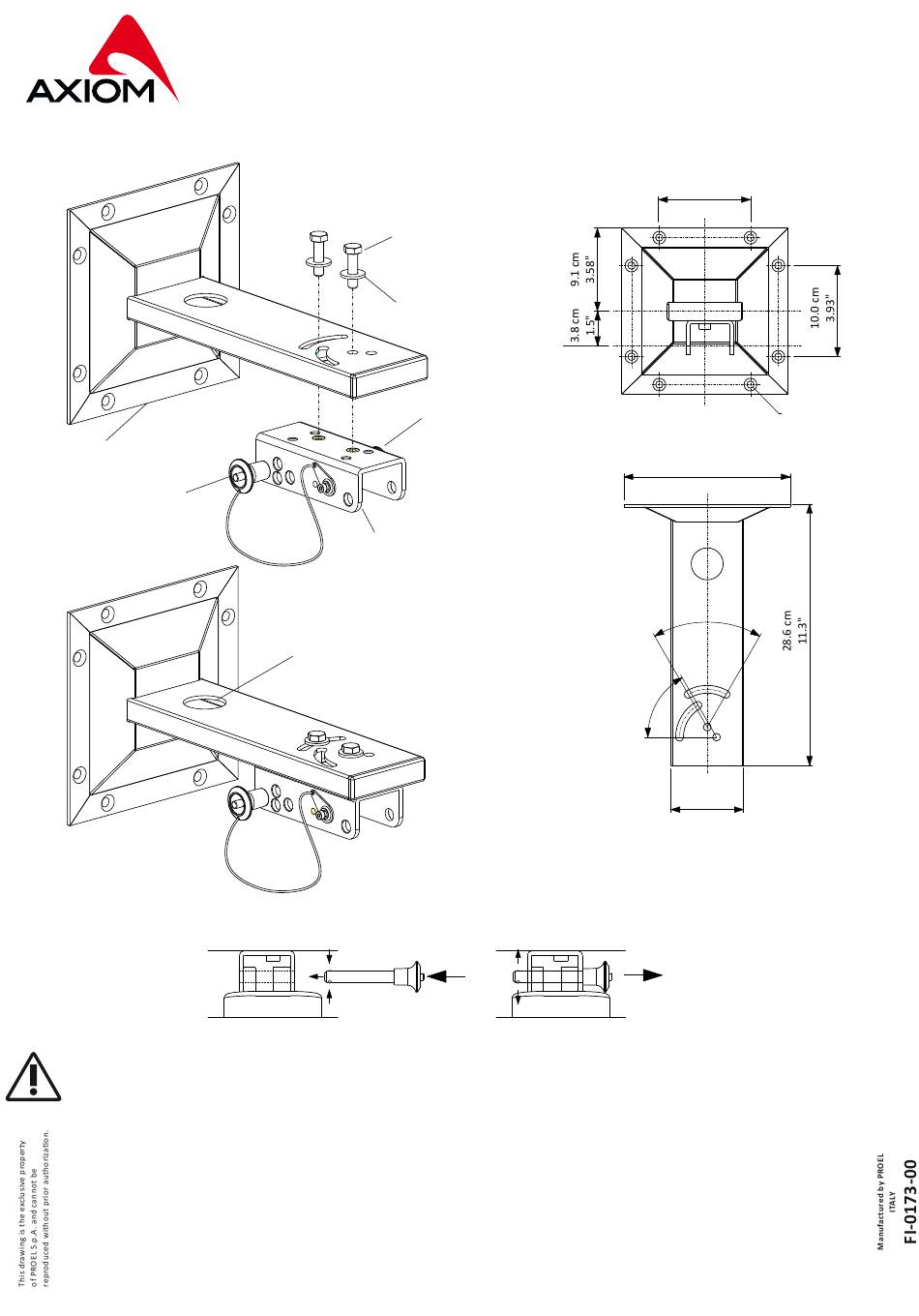

SUPPLIED MATERIALS
WALL BRACKET
(STRONG VERSION)
LOCKING PIN
(94SPI10555)
TYPICAL TOP ASSEMBLY
WARNINGS:
• No hardware is supplied to install the KPTWAX16CL to the walls: the hardware to be used depends on the wall structure.
Use always the best hardware available taking in considera�on the whole weight of loudspeakers and accessories.
• Brackets MUST be installed by qualified personnel in accordance with safe installa�on prac�ces.
• A maximum of 2 x AX16CL or 1 x AX16CL + 2 AX8CL speakers can be installed using the KPTWAX16CL as top
and the KPTWAX16CLL as bo�om wall brackets.
• A maximum of 4 x AX16CL speakers can be installed using the KPTWAX16CL as top and bo�om wall brackets.
PROEL S.p.A. - Via alla Ruenia 37/43 - 64027 Sant'Omero (Te) - ITALY Tel: +39 0861 81241 www.axiomproaudio.com

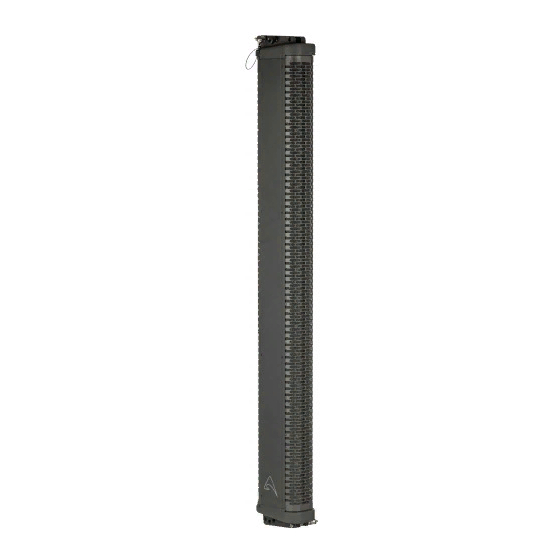

AX16CL WALL BRACKETS
CODE: KPTWAX16CL
Assembly Instruc�ons
M8x30 NUT SCREW
M8 WASHER
M6 KNOB
COLUMN
SPEAKER
ADAPTER
THIS HOLE ALLOWS
THE PASSAGE OF A
SPEAKON CABLE
LOCKING PIN INSERTION
press and
insert
DIMENSIONS and DRILLING
0° PIN HOLE
60.0°
release and
lock
10.0 cm
3.93"
ø 8 mm
0.315"
18.2 cm
7.17"
60.0°
8.0 cm
3.15"
Advertisement
Table of Contents
Related Manuals for Axiom AX16CL
Summary of Contents for Axiom AX16CL
- Page 1 • Brackets MUST be installed by qualified personnel in accordance with safe installa�on prac�ces. • A maximum of 2 x AX16CL or 1 x AX16CL + 2 AX8CL speakers can be installed using the KPTWAX16CL as top and the KPTWAX16CLL as bo�om wall brackets.
- Page 2 7 - Tighten the bolts (I). 8 - Tighten the knobs (L). IMPORTANT NOTE • For installing 2x AX16CL columns, the bo�om bracket can be the KPTWAX16CLL, as shown to the le�. • For installing 3x or 4x AX16CL columns, the bo�om bracket must be KPTWAX16CL as shown to the right.
