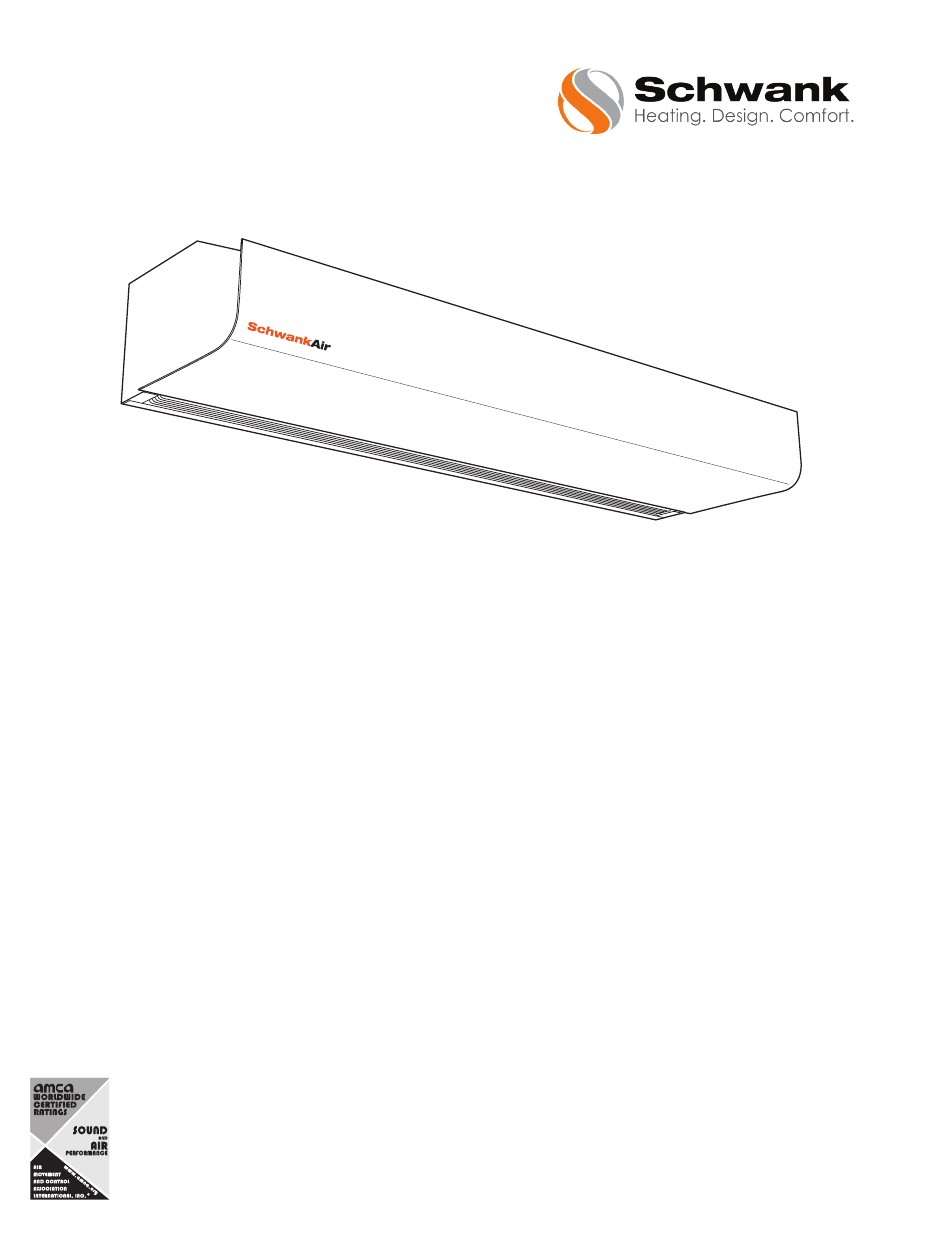

Installation Manual
SchwankAir 3200 Series
The air curtains shown herein are licensed to bear the AMCA Seal. The ratings shown are based on tests and
procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply
with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to
airflow rate, average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free
delivery only.
schwankgroup.com/schwankair

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SchwankAir 3200 Series

Summary of Contents for SchwankAir 3200 Series

  • Page 1 SchwankAir Installation Manual SchwankAir 3200 Series The air curtains shown herein are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

  • Page 2: Technical Specification

    AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to airflow rate, average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free delivery only. schwankgroup.com/schwankair...
  • Page 3 Supply water temperature: 140 °F Water temperature: 140/104 °F Room temperature: +64 °F Room temperature: +64 °F Outlet air temperature: +95 °F 1. Recommended outlet air temperature for good comfort and optimized output. 2. Nominal output at given supply and return water temperature. schwankgroup.com/schwankair...
  • Page 4 The introduction pages consist mainly of pictures. For translation of the English texts used, see the respective language pages. Les pages de présentation contiennent principalement des images. Pour la traduction des textes en anglais, consultez la page correspondante à la langue souhaitée. schwankgroup.com/schwankair...
  • Page 5 All Models 0.39 All Models AC-TW72-23 AC-TA36-23 8.22 All Models 80.5 AC-TA72-23 AC-TE36-20[48][60] 6.57 All Models AC-TE72-20[48][60] AC-TW36-23 6.49 All Models AC-TW72-23 41.1 AC-TA36-23 4.68 All Models 62.1 AC-TA60-23 AC-TE36-20[48][60] 8.22 All Models AC-TE60-20[48][60] AC-TW60-23 AC-TW36-23 1.96 All Models schwankgroup.com/schwankair...

  • Page 6: Open The Unit

    Gland Gland ø17,5 ø17,5 Knock-out ø32,5 Knock-out ø25,5 Gland ø20,5 Knock-out ø17,5 Fig. 2 [inch] 0.69 0.81 1.00 1.28 Open the unit schwankgroup.com/schwankair...

  • Page 7: Minimum Distance

    Fig. 3: Open the unit. Minimum distance Fig. 4 1.18 in 2.36 in Fig. 5 schwankgroup.com/schwankair...
  • Page 8 Mounting with wall brackets G [x3] Ø8 (3x) Ø7 [inch] Ø16 10.24 1.46 8.39 2.95 1.38 0.79 0.31 0.28 0.63 2 pcs 36" Models 2 pcs 60" Models 3 pcs 72" Models Fig. 6: Mounting with wall brackets schwankgroup.com/schwankair...
  • Page 9 JC-0752-XX - 3/4 Plumbing Kit for Water Heated Models Kit includes: • Valve kit: TAC, pressure independent regulation and adjustment valve + shut off valve • Nipple connection for valve, female thread [x2] • Actuator ON/OFF 230V Nipple • Bypass valve JC-0752-XX Water Heated Plumbing Kit schwankgroup.com/schwankair...
  • Page 10 Wiring Diagram - SchwankAir 3200 Series Ambient & Water Heated 208V1~ 5A x 3 Only 72” version S E NS OR 0 - 10V DOOR PE N 6 5 4 AF T E R WAT E R Only water PE N...
  • Page 11 Wiring Diagram - SchwankAir 3200 Series Electric Heated 208V 0 -10V N H1H2 N F 1 F 2 F 3 Yellow Blue R ed White schwankgroup.com/schwankair...
  • Page 12 Wiring Diagram - SchwankAir 3200 Series Electric Heated 480V/600V 0 - 10V N H1H2 N F 1 F 2 F 3 Y ello w B lue R ed White schwankgroup.com/schwankair...
  • Page 13 Replacement parts list SchwankAir 3200 Series - Ambient Item Description Part # Model # 3200 Air Curtain Front Cover 36” [Surface] JC-0501-10 AC-TA36-23 3200 Air Curtain Front Cover 60” [Surface] JC-0501-15 AC-TA60-23 3200 Air Curtain Front Cover 72” [Surface] JC-0501-20 AC-TA72-23 3200 Air Curtain Impellor-R 36”...
  • Page 14 3200 Air Curtain Left Cover JC-0508-XX AC-TA36-23 AC-TA60-23 AC-TA72-23 3200 Air Curtain Right Cover JC-0509-XX AC-TA36-23 AC-TA60-23 AC-TA72-23 schwankgroup.com/schwankair...
  • Page 15 Replacement parts list SchwankAir 3200 Series - Electric Item Description Part # Model # 3200 Air Curtain Front Cover 36” [Surface] JC-0501-10 AC-TE36-20 AC-TE36-48 AC-TE36-60 3200 Air Curtain Front Cover 60” [Surface] JC-0501-15 AC-TE60-20 AC-TE60-48 AC-TE60-60 3200 Air Curtain Front Cover 72” [Surface]...
  • Page 16 JC-0504-20 AC-TE72-20 AC-TE72-48 AC-TE72-60 3200 Air Curtain Nozzle Bracket JC-0505-XX AC-TE36-20 AC-TE36-48 AC-TE36-60 AC-TE60-20 AC-TE60-48 AC-TE60-60 AC-TE72-20 AC-TE72-48 AC-TE72-60 3200 Series Internal Sensor JC-0506-XX AC-TE36-20 AC-TE36-48 AC-TE36-60 AC-TE60-20 AC-TE60-48 AC-TE60-60 AC-TE72-20 AC-TE72-48 AC-TE72-60 3200 Air Curtain PCB. JC-0507-XX AC-TE36-20 AC-TE36-48...
  • Page 17 3200 Air Curtain Heating Rod - 208V 36” Front JC-0526-XX AC-TE36-20 3200 Air Curtain Heating Rod - 208V 60” Front JC-0527-XX AC-TE60-20 3200 Air Curtain Heating Rod - 208V 60” Back JC-0528-XX AC-TE72-20 Air Curtain Thermal Cut-Off Electric Heated JC-0529-XX AC-TE36-20 AC-TE36-48 AC-TE36-60 AC-TE60-20 AC-TE60-48 schwankgroup.com/schwankair...
  • Page 18 AC-TE60-60 AC-TE72-20 AC-TE72-48 AC-TE72-60 3200 Air Curtain Contactor Electric Heated JC-0530-XX AC-TE36-20 AC-TE36-48 AC-TE36-60 AC-TE60-20 AC-TE60-48 AC-TE60-60 AC-TE72-20 AC-TE72-48 AC-TE72-60 schwankgroup.com/schwankair...
  • Page 19 Replacement parts list SchwankAir 3200 Series - Hot Water Item Description Part # Model # 3200 Air Curtain Front Cover 36” [Surface] JC-0501-10 AC-TW36-23 3200 Air Curtain Front Cover 60” [Surface] JC-0501-15 AC-TW60-23 3200 Air Curtain Front Cover 72” [Surface]...
  • Page 20 3200 Series Internal Sensor JC-0506-XX AC-TW36-23 AC-TW60-23 AC-TW72-23 3200 Air Curtain PCB. JC-0507-XX AC-TW36-23 AC-TW60-23 AC-TW72-23 3200 Air Curtain Left Cover JC-0508-XX AC-TW36-23 AC-TW60-23 AC-TW72-23 3200 Air Curtain Right Cover JC-0509-XX AC-TW36-23 AC-TW60-23 AC-TW72-23 3200 Air Curtain Water Filter Holder...
  • Page 21 EN: Maximum fuse value [A] FR: Intensité de courant électrique maximale FR: Calibre maximum du fusible [A] pour L1, L2 ou L3 [A] ≤ 10A ≤ 15A ≤ 20A ≤ 25A ≤ 35A ≤ 50A ≤ 65A ≤ 80A 100A ≤ 102A 125A schwankgroup.com/schwankair...

  • Page 22: General Instructions

    Application more than 133 °F. 3200 series is a compact air curtain with a 4. Lock the nuts against the brackets. [Fig.6D] recommended installation height of up to 11 feet.
  • Page 23 Note that the unit shall be preceded by a regulating valve, see SchwankAir valve kit. Service, repairs and maintenance The water coil is connected on top of the unit For all service, repair and maintenance first carry via steel pipes with valve [3/4’’] terminals,...

  • Page 24: Maintenance

    The cut-out will automatically reset when If there is no heat, check the following: the motor temperature has returned to within the • The functions, internal sensor and settings of motor’s operating limits. the built-in control system. schwankgroup.com/schwankair...
  • Page 25 The product should not be disposed of mixed with general household waste but delivered to a designated collection point for environmental recycling. Please contact the local authority for further details of your nearest designated collection point. schwankgroup.com/schwankair...
  • Page 26 External on/off Eg time switch. External potential free closure = off Factory setting dip-switches - Unit without heating or Factory setting dip-switches - Unit with water heating with electrical heating Dip Switch 3 is used for Door Contact Switch schwankgroup.com/schwankair...

  • Page 27: Functional Test

    Fan and heatings steps are tested in 10-second switch. intervals which is indicated by lighted LEDs. 2. Determine the cause of overheating and rectify the fault. When the test is completed, all LEDs will flash for 30 3. Reconnect the unit. seconds. schwankgroup.com/schwankair...

  • Page 28: Montage

    La ventilation doit donc être Appareil sans chauffage ou avec chauffage à équilibrée. eau chaude. Connecté via le circuit imprimé avec cordon de 4.9 ft. schwankgroup.com/schwankair...
  • Page 29 être précédé d'une vanne de est transformée au 230V~par le transformateur régulation ; voir le kit de vannes SchwankAir. interne et cheminée via 2x 10A fusibles dans la La batterie à eau est à connecter à la partie boîte de raccordement prinicpale.

  • Page 30: Entretien

    Voir les pages relatives au système de régulation. ensuite la partie courbe en bas de l'appareil. [Fig.3] 3. Retirer le filtre et le nettoyer à l'aspirateur ou le laver. Si le filtre est obstrué ou endommagé, il peut être nécessaire de le changer. schwankgroup.com/schwankair...

  • Page 31: Dépannage

    Si les ventilateurs ne démarrent pas ou ne l'environnement. fonctionnent pas correctement, contrôler les points suivants : • Vérifier les fonctions et réglages du système de régulation intégré. • Propreté de la grille/du filtre de prise d'air. schwankgroup.com/schwankair...
  • Page 32 à introduire la fiche, à régler et nettoyer l'appareil ou à en effectuer la maintenance. ATTENTION: Certaines parties de l'appareil peuvent devenir très chaudes et provoquer des brûlures. Il est nécessaire de prêter particulièrement attention en présence d'enfants ou de personnes vulnérables. schwankgroup.com/schwankair...
  • Page 33 MARCHE Réglage d’usine des commutateurs DIP - Appareil Réglage d’usine des commutateurs DIP - Appareil sans chauffage ou avec chauffage électrique avec chauffage à eau chaude Le commutateur DIP n°3 est utilisé pour le commutateur de contact de porte. schwankgroup.com/schwankair...
  • Page 34 Les étapes de ventilation et de chauffage sont entièrement isolé. testées à intervalles de 10 secondes indiquées par 2. Déterminer la cause de la surchauffe et y des DEL. Quand le test est terminé, toutes les DEL remédier. clignotent 30 secondes. 3. Remonter l’appareil. schwankgroup.com/schwankair...

  • Page 35: Caractéristiques Techniques

    230V/1ph/60Hz est differente des données indiquées. Indice de protection pour les appareils avec chauffage électrique : IP20. Indice de protection pour les appareils sans chauffage et appareils avec chauffage à eau : IP21. Marquage CE. schwankgroup.com/schwankair...
  • Page 36 AMCA 311 et sont conformes aux exigences du programme de classification certification AMCA. Le sceau de classification certifié AMCA s'applique au débit d'air, à la vitesse moyenne de sortie, à l'uniformité de la vitesse de sortie, à la projection de vitesse et à la puissance nominale à la livraison gratuite uniquement. schwankgroup.com/schwankair...
  • Page 37 LIMITED WARRANTY CERTIFICATE Warranty SchwankAir 3200 Series Air Curtains The Manufacturer warrants that this product is free from defects in material or workmanship under normal use and service subject to the terms of this document. Five Year Limited Warranty Subject to the conditions and limitations stated herein, during the term of this limited warranty, we will supply any component part [at our option a new or repaired component part] of the air curtain as defined below, which the Manufacturer’s exami-...
  • Page 38 SchwankAir 1-877-686-3779 [toll-free] 1-706-554-6191 csr@schwankgroup.com schwankgroup.com/schwankair Canada 2 Schwank Way, 5285 Bradco Blvd., Waynesboro, GA Mississauga, ON 30830 L4W 2A6 schwankgroup.com/schwankair...
