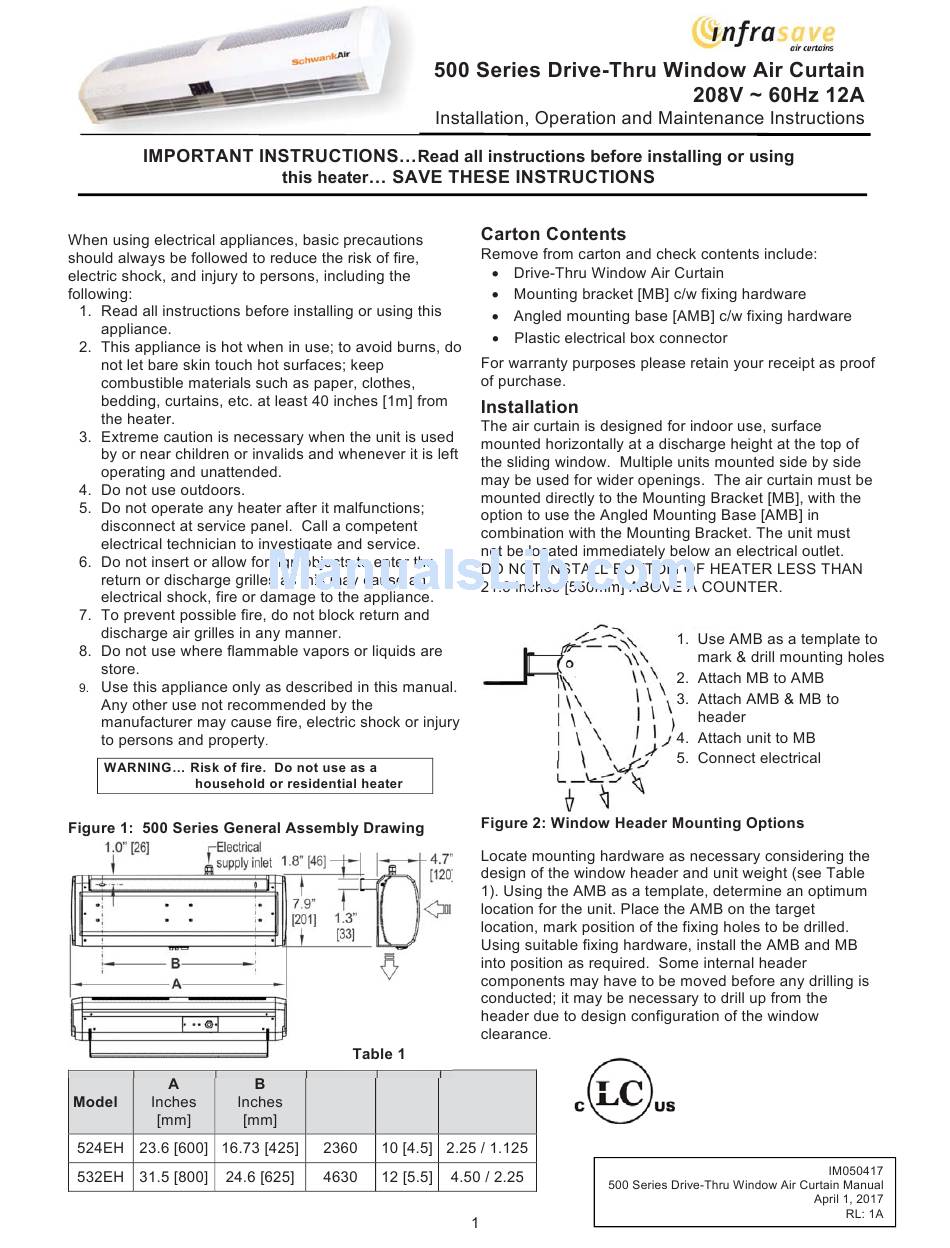

- Page 1 SchwankAir IMPORTANT INSTRUCTIONS Conforms to: 208V 208V Heat Weight CAN CSA-C22.2 no.46-13 Electrical Output lb [kg] & UL 2021(Ed.3): 2013 Input (W) (kW)
- Page 2 Figure 3: Mounting Bracket Alignment Align and position mounting bracket into the two slots on the rear plate of the unit (refer to Figure 3). Ensure the serrated lock washer, at each end of the air curtain, is positioned between the mounting bracket and the internal bracket (see Figure 4).
- Page 3 Always disconnect and isolate the main electrical supply before installing, maintaining or repairing this equipment. All maintenance/repairs should only be carried out by a competent electrician or Schwank/Infrasave appointed technician. To ensure the air curtain operates efficiently, the air inlet and outlet grilles, fan impellers, housings and motors must be kept free of dust and debris.
