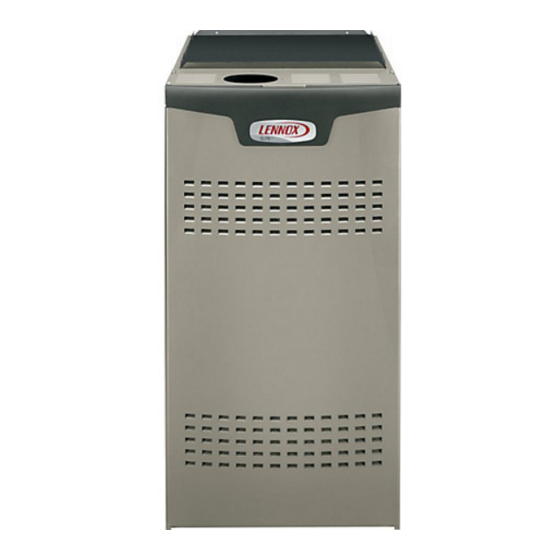

Lennox DAVE SIGNATURE SL280DFV Installation Instructions Manual

Gas furnace downflow air discharge
Hide thumbs Also See for DAVE SIGNATURE SL280DFV:
Table of Contents

Advertisement

Quick Links

Download this manual
2022 Lennox Industries Inc.
©
Dallas, Texas USA
CAUTION
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
This is a safety alert symbol and should never be
ignored. When you see this symbol on labels or in man-
uals, be alert to the potential for personal injury or death.
Contents
Unit Dimensions - inches (mm) ......................................2
Parts Arrangement..........................................................3
Shipping and Packing List ..............................................4
Safety Information ..........................................................4
Use of Furnace as Construction Heater .........................5
General ...........................................................................5
Combustion, Dilution & Ventilation Air ............................6
Setting Equipment ........................................................10
Filters ............................................................................ 11
Duct System / Venting ..................................................12
Gas Piping ....................................................................18
Electrical .......................................................................20
INSTALLATION
INSTRUCTIONS
SL280DFV
DAVE LENNOX SIGNATURE®
COLLECTION GAS FURNACE
DOWNFLOW AIR DISCHARGE
508246-01
02/2022
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
A thermostat is not included and must be ordered
separately.
• A Lennox communicating thermostat must be used in
communicating applications.
• In non-communicating applications, the Lennox
ComfortSense
7500 thermostat may be used, as well
®
as other non-communicating thermostats.
In all cases, setup is critical to ensure proper system
operation. Field wiring for both communicating and non-
communicating applications is illustrated in diagrams,
which begin on Page 22.
Integrated Control .........................................................29
Integrated Control DIP Switch Settings - ......................30
Blower Data ..................................................................33
Unit Start-Up .................................................................37
Proper Combustion.......................................................38
High Altitude .................................................................39
Heating Sequence of Operation ...................................40
Service..........................................................................42
Repair Parts List ...........................................................43
Integrated Control Diagnostic Modes ...........................44
Program Unit Capacity / Size Mode .............................51
Page 1
WARNING
NOTICE
