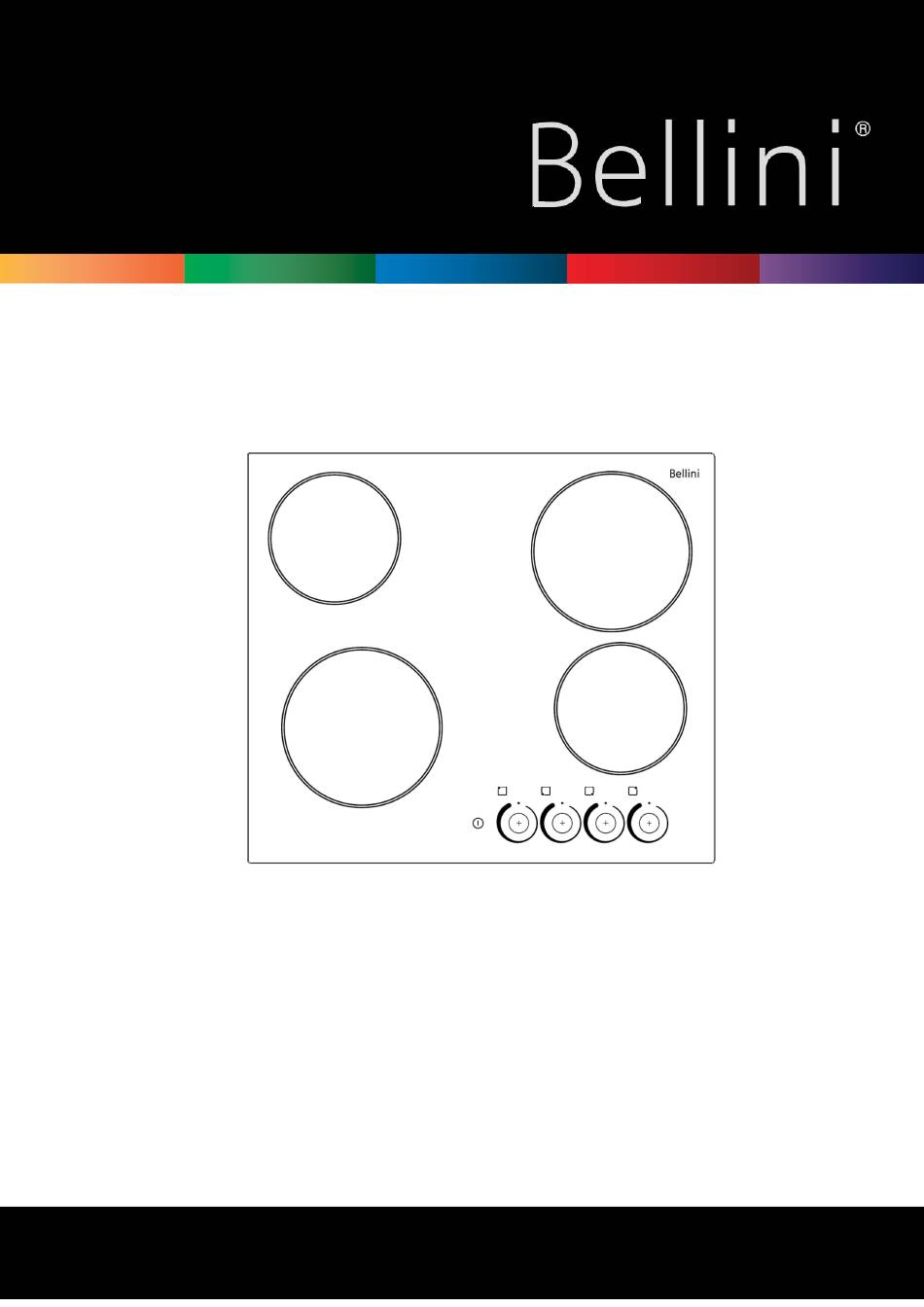

- Page 1 USER MANUAL Ceramic Hob Model No. BCA64GK GSM Retail Australia Pty Ltd ABN: 53 007 582 475 V2 July 2022 For Warranty and technical queries: Australia 1300 373 199 For Warranty and technical queries: New Zealand 0800 764 912 www.belliniappliances.com.au...
- Page 2 Thank you. Thank you for choosing Bellini Appliances. Bellini appliances carry a 3 year in home warranty, be sure to retain your user manual and receipt. For all warranty and technical queries please phone: Australia 1300 373 199 New Zealand 0800 764 912...
-
Page 3: Table Of Contents
Contents Safety instructions ……………......4 - 6 Installation ……………………....... 6 - 10 Description of the Ceramic Hob surface layout ... 10 - 13 Using the ceramic hob ………………………..13 - 17 Hob guidelines …………………………………..17 - 18 Maintenance and cleaning ………………………… 18 - 19 Environmental note …………………………………... -
Page 4: Safety Instructions
Safety instructions This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so it is easily available for future reference; for you or any person not familiar with the operation of the appliance. - Page 5 General Safety This product can be worked but not This appliance is not intended for through outside timer and remote use by persons (including children) control. with reduced physical, sensory or Warning: If the surface is cracked, mental capabilities, or lack of switch off the appliance to avoid the experience and knowledge, unless...
-
Page 6: Installation
Care should be taken to avoid separation in all active (phase) touching heating elements. conductors, the instructions shall If a stationary cooktop is not state that such means for provided with a supply cord and a disconnection shall be incorporated plug or by other means of in the fixed wiring according to the disconnection from the supply... - Page 7 Preparing the unit for a built-in appliance WARNING The appliance can be installed on a work surface with a thickness of between 30 and 40 mm and rear of the appliance should be ≥40mm away from the wall and kept ≥100mm away from the side of the work surface. Carry out all cutting of the unit and work surface then carefully remove shavings or sawdust before inserting the appliances.
- Page 8 Remove the material and envelope of documents from the packaging. Before proceeding with installation, read the work instructions carefully. Step.1 Put a towel or cloth on the work surface. Place the hob face down on the protected surface. Step.2 Apply the strip seal, supplied with the hob, which is for sealing it onto the work surface.
- Page 9 1N～ 50-60Hz 2N～ 50-60Hz H05VV-F 4G2.5 BCA64GK H05VV-F 3G2.5 - The cable connections must be in accordance with the diagram located on the bottom of the hob. - The cable type must be connected to the corresponding power supply terminal box.
-
Page 10: Description Of The Ceramic Hob Surface Layout
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced appropriately. The mains supply cable should be replaced in accordance with the following instructions: Switch the appliance off at the control switch. ... - Page 11 Display and control mode 1.1 Display mode ü Cooking zone working indicator: the corresponding indicator light displays when the cooking zone is working; ü Cooking zone residual heat indicator: the corresponding indicator flashes when the cooking zone stops working (once every 1 second); ü...
-
Page 12: Using The Ceramic Hob
NOTED: Description for each kind of blinking indicator light ü Power on: After the appliance is powered on, all of the indicator lights on the display screen will light up for 2s, then the appliance goes into shutdown mode. ü Standby mode: Under shutdown status, press and hold “ ”... - Page 13 3. Heating control ü Under standby mode, you can set the power level by the corresponding programming knobs. In the process of adjusting the power level, clockwise rotation can increase the power level from 0 to 15 (maximum), and then rotate back to “0” for a cycle;...
- Page 14 ü When all the default timing is reached, the cooking zones will switch off automatically and enter into standby mode. 7. Protection function ü High temperature protection: The electronic temperature sensor on the control panel will transmit the real time temperature to the chip of the control panel.
-
Page 15: Hob Guidelines
How to use the hot plate Put the pot in the center of the heating zone, turn the knob clockwise and anticlockwise to turn on the hob. High temperature indication light: When the glass plate is too hot, the high temperature indication light will light up, don’t touch the glass plate until the indication light goes out. -
Page 16: Maintenance And Cleaning
If these rules are not followed, then there will be a great loss of heat and energy. Heat not absorbed by the saucepan, will spread to the hob, frame and surrounding cabinets. Preferably cover pans with a lid to permit cooking at a lower heat. ... - Page 17 Cleaning table Type of deposit Remove Remove when What should I use immediately? the appliance to remove the has cooled deposit? down? Sugar or food/liquid Ceramic hob scraper containing sugar Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic Ceramic hob cleaner discolouration...
-
Page 18: Environmental Note
Environmental note Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. This product must not be disposed together with domestic waste. - Page 19 Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
- Page 20 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
