Heavy Duty Adjustable Machine Pedestal

Setup

The 67500 Adjustable Machine Pedestal will be pallet shipped to its destination. The following details will describe the

steps required for initial setup before mounting of machinery and use. Read through the entire setup procedure to fully

understand its requirements before trying to mount machinery.

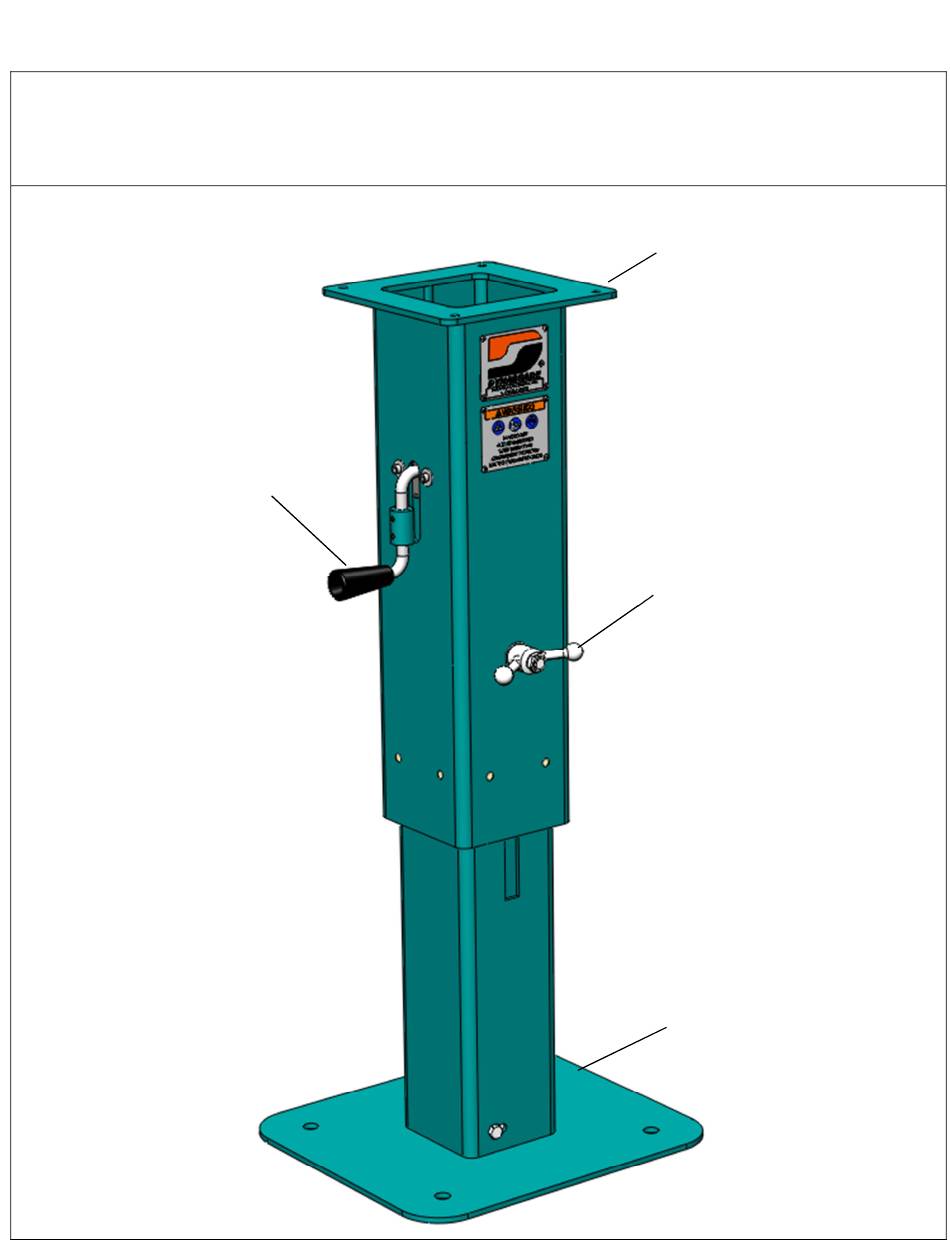

Tool

Mounting

Plate

Crank Arm

Lock Down

Handle

Bolt Down

Base

Table of Contents

Need help?

Do you have a question about the 67500 and is the answer not in the manual?

Page 1 Heavy Duty Adjustable Machine Pedestal Setup The 67500 Adjustable Machine Pedestal will be pallet shipped to its destination. The following details will describe the steps required for initial setup before mounting of machinery and use. Read through the entire setup procedure to fully understand its requirements before trying to mount machinery.
Page 2 Heavy Duty Adjustable Machine Pedestal Setup The Adjustable Machine Pedestal must be securely bolted to the floor. After determining a location, use dimensions below to layout the hole locations before beginning to drill into concrete floor. The base mounting holes were sized to be used with a threaded concrete anchor and ½”...
Page 3 Heavy Duty Adjustable Machine Pedestal Setup Before mounting of tool, be sure to lock pedestal to a fixed position by turning the Lock Down Handle clockwise until tight. This will insure a stable assembly for positioning your tool to the mounting plate surface. Align tool base to hole pattern on pedestal and insert 5/16”...
Page 4 Heavy Duty Adjustable Machine Pedestal Setup You can now begin to adjust the pedestal to your desired work height. Begin by turning the lock down handle counter clockwise just until loose. To raise the pedestal, rotate the crank arm in the clockwise direction until you reach the desired height.
