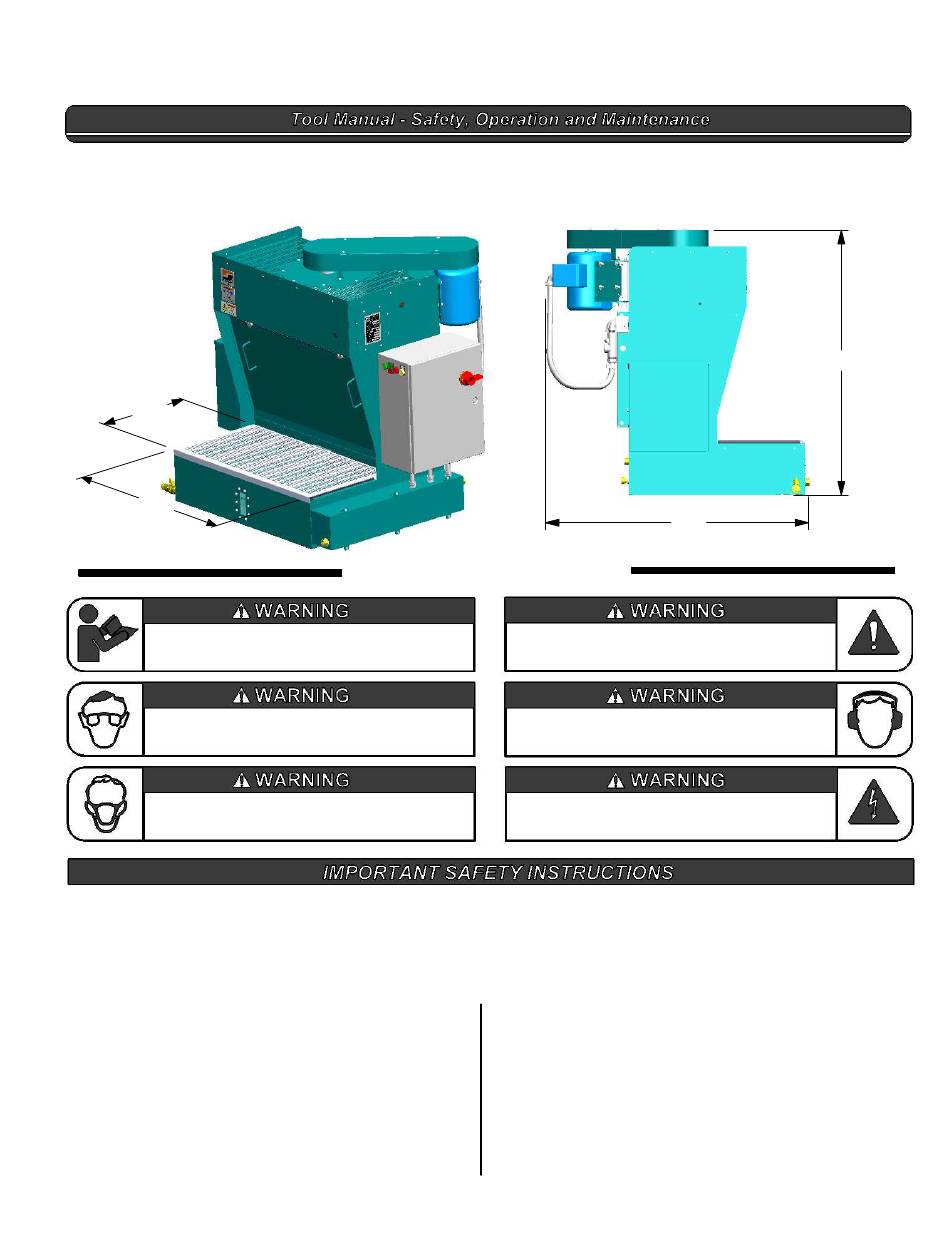

Dynabrade 64300 Safety, Operation And Maintenance

36" metal capture station

Advertisement

Quick Links

36" Metal Capture Station
Models:
64300: 230 VAC 3 PHASE
64304: 460 VAC 3 PHASE
64350: 230 VAC 3 PHASE
64354: 460 VAC 3 PHASE
18
36
Read and understand tool manual before
work starts to reduce risk of injury to
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
When operating this equipment, basic precautions should always be strictly followed
METAL CAPTURE STATION SAFETY INSTRUCTIONS
1. Always use a grounded power supply. There is an increased risk
of electric shock with an ungrounded power supply.
2. Don't expose to rain or wet conditions. There is an increased risk
of electric shock if the switch, cord or motor are wet.
3. Do not abuse the power cord. Never use the cord to move the
station. Never use the cord to pull the plug out of the outlet. A
damaged cord increases the risk of electric shock.
4. Do not block more than 25% of work surface inlet holes
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
SAFETY LEGEND
operator, visitors and tool.
limit values required by law
including the instructions listed below:
Parts Page Reorder No. PD.11.14
Practice safety requirements. Work alert.
have proper attire and do not operate tools under
the influence of alcohol or drugs
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
Local statues, ordinances and/or regulations
Electric shock hazard. Avoid bodily contact with
grounded objects, bodies of water.
Do not damage cord set.
5. Use caution when opening or closing guards, screens, etc. Switch
power off and unplug cord before opening. Remove all work
pieces and tools before opening to avoid injury. Keep fingers and
hands clear when closing to avoid injury
6. Never use to exhaust chemical vapors
7. Vibration may occur if unit is not level.
8. Unplug power cord when accessing blower compartment area
9. Power lockout disconnect switch must be off when servicing station
Effective March 2011
46
45

Advertisement

loading
Need help?

Need help?

Do you have a question about the 64300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynabrade 64300

  • Page 1 Parts Page Reorder No. PD.11.14 Effective March 2011 36" Metal Capture Station Models: SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL 64300: 230 VAC 3 PHASE 64304: 460 VAC 3 PHASE 64350: 230 VAC 3 PHASE 64354: 460 VAC 3 PHASE SAFETY LEGEND Read and understand tool manual before Practice safety requirements.
  • Page 2: Machine Setup

    Metal Capture Station Machine Setup The 64300 & 64350 Series Metal Capture Stations will be pallet shipped to their destination. The following details will describe the steps required for initial machine setup before operation. Read through the entire setup procedure to understand its requirements before trying to run machine.
  • Page 3 Metal Capture Station Machine Setup There is a water level window located at the front of the machine, which indicates the proper fill level in the “OFF” position. Continue filling the machine until the water is approximately ¼” short from the Water Level Line as indicated in detail.
  • Page 4 Metal Capture Station Machine Setup 64300: NEMA L15-20 250 VAC 20A Next you will need to provide a power 64304: NEMA L16-20 480 VAC 20A source for your machine. Refer to the parts 64350: NEMA L15-20 250 VAC 20A page, as the model number will be used for...
  • Page 5 Metal Capture Station Machine Setup It is also important to recognize when wiring your machine, proper rotation of the impeller is essential for operation. From the top of the machine you can gain viewing access to the blower assembly. Blower should rotate in a counter- clockwise direction from this view of the machine as shown.
  • Page 6 Metal Capture Station Optional Shield Installation To begin installing the machines shielding assembly, screw qty 6 locking knobs into the threaded holes located around the perimeter of the main tank. Leave a 1/8” gap as shown at all 6 locations, to allow for the installing of the panels.
  • Page 7: Machine Operation

    Metal Capture Station Machine Operation Once the green pilot light glows constant, you can then turn on the machine. Press and release the “Start” button. The machines impeller will reach its optimal operating speed in approximately 10 seconds and air filtration will begin. You can now begin to grind your work piece.
  • Page 8 Metal Capture Station Maintenance Guide Before beginning any maintenance to your machine, first make sure the lockout disconnect is in the off position. Remove work surface to gain access to the interior of the tank. After machine use, sludge will collect at the bottom of the tank.
  • Page 9 Metal Capture Station Maintenance Guide To change water: Remove cap from drain valve and connect a garden hose, open valve and remove all water from tank. When tank is completely empty of water, remove garden hose, re-install cap on drain valve and lock valve in the closed position.
  • Page 10: Maintenance Schedule

    Maintenance Every 30 Days Every 180 Daily Schedule of use Days of use √ Check Water Level Remove sludge from √ collection tank Remove any √ accumulated dust Rinse mist traps with √ clean water Replace water in √ collection tank √...
  • Page 11: Troubleshooting

    The machine will now require a reset. Press the reset button briefly until it illuminates and then release. At this time, the machine will go back to the Ready to Start Dynabrade: 1-800-828-7333 mode as indicated above.
  • Page 25: Specification
