BB5/6COM
Board Revision 1.0
Hardware Reference
SSV Embedded Systems
Heisterbergallee 72
D-30453 Hannover
Phone: +49 (0)511/40 000-0
Fax:
+49 (0)511/40 000-40
Document Revision: 1.0
E-mail: sales@ist1.de
Date: 2008-03-05
F
.
-
.
OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW
SSV
EMBEDDED
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB5/6COM and is the answer not in the manual?

Questions and answers

Related Manuals for SSV Embedded Systems BB5/6COM

Summary of Contents for SSV Embedded Systems BB5/6COM

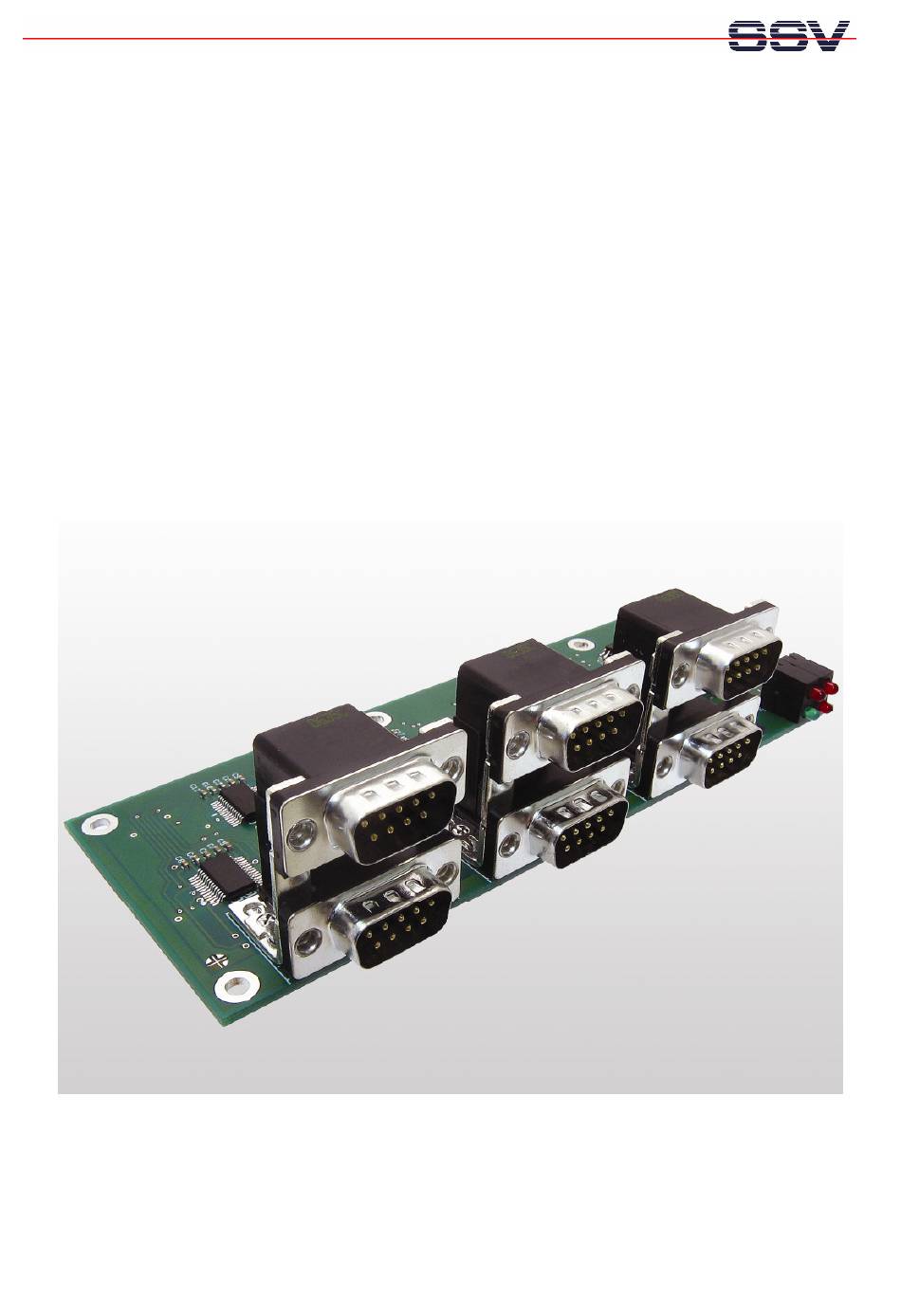

  • Page 1 BB5/6COM Board Revision 1.0 Hardware Reference SSV Embedded Systems Heisterbergallee 72 D-30453 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.0 E-mail: sales@ist1.de Date: 2008-03-05 OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW EMBEDDED...

  • Page 2: Table Of Contents

    BB5/6COM - Hardware Reference CONTENT INTRODUCTION .......................3 Safety Guidelines........................3 Conventions ...........................3 Block Diagram........................4 Features and Technical Data....................4 BOARD LAYOUT ......................5 PINOUTS ..........................6 COM5 – COM10 Connector (RS232)...................6 COM9 – COM10 Connector (RS422)...................6 COM9 – COM10 Connector (RS485)...................6 COM9 Mode Jumpers – J6 – J10 ..................7 COM9 RS422/485 Termination Resistors –...

  • Page 3: Introduction

    BB5/6COM - Hardware Reference INTRODUCTION This document describes the hardware components of the BB5/6COM. For further informa- tion about the individual components of this product you may follow the links from our web- site at http://www.ssv-comm.de. Our website contains a lot of technical information, which will be updated in regular periods.

  • Page 4: Block Diagram

    BB5/6COM - Hardware Reference Block Diagram Figure 1: Block diagram of BB5/6COM Features and Technical Data 4x COM connectors (Sub-D PC99) with RS232 driver only • 2x COM connectors (Sub-D PC99) with RS232/422/485 drivers • Maximum Baud rate for all six COM connectors: 115.200 Baud •...

  • Page 5: Board Layout

    BB5/6COM - Hardware Reference BOARD LAYOUT Figure 2: Board layout BB5/6COM Figure 3: LED position and function B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 0...

  • Page 6: Pinouts

    BB5/6COM - Hardware Reference PINOUTS COM5 – COM10 Connector (RS232) Pin Name Function COM Connector, DCD Pin COM Connector, RXD Pin COM Connector, TXD Pin COM Connector, DTR Pin Ground COM Connector, DSR Pin COM Connector, RTS Pin COM Connector, CTS Pin COM Connector, RI Pin Table 2: Pinout COM5 –...

  • Page 7: Com9 Mode Jumpers - J6 - J10

    BB5/6COM - Hardware Reference COM9 Mode Jumpers – J6 – J10 Jumper RS232 RS422/485 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Table 5: Jumper settings for COM9 mode COM9 RS422/485 Termination Resistors –...

  • Page 8: Com10 Mode Jumpers - J14 - J18

    BB5/6COM - Hardware Reference COM10 Mode Jumpers – J14 – J18 Jumper RS232 RS422/485 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Pin 1-2 Pin 2-3 Table 7: Jumper settings for COM10 mode COM10 RS422/485 Termination Resistors –...

  • Page 9: M2M Expansion Slot Connector 1 - J1

    BB5/6COM - Hardware Reference M2M Expansion Slot Connector 1 – J1 Pin Name Function 5 VDC Power Input Ground Not Connected Not Connected COM5_1 COM5 Serial Port, DCD pin (5 V TTL) COM5_6 COM5 Serial Port, DSR pin (5 V TTL)

  • Page 10: M2M Expansion Slot Connector 2 - J2

    BB5/6COM - Hardware Reference M2M Expansion Slot Connector 2 – J2 Pin Name Function Not Connected Ground IDE1 LED IDE1 LED IDE2 LED IDE2 LED COM8_1 COM8 Serial Port, DCD pin (5 V TTL) COM8_6 COM8 Serial Port, DSR pin (5 V TTL)

  • Page 11: Mechanical Dimensions

    M3 screws. Figure 4: Mechanical dimensions of BB5/6COM B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 0...

  • Page 12: Helpful Literature

    SSV Embedded Systems Heisterbergallee 72 D-30453 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 E-mail: sales@ist1.de Internet: www.ssv-embedded.de Support: www.ssv-comm.de/forum For actual information about the BB5/6COM visit us at www.ssv-comm.de. DOCUMENT HISTORY Revision Date Remarks Name 2008-03-05 first version The content of this document can change any time without announcement.
