eSOM/SK2 eSOM/9263
Embedded Linux Starter Kit
First Steps
SSV Embedded Systems
Dünenweg 5
D-30419 Hannover
Phone: +49 (0)511/40 000-0
Fax:
+49 (0)511/40 000-40
Document Revision: 1.0
E-mail: sales@ssv-embedded.de
Date: 2010-05-14
F
.
-
.
OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW
SSV
EMBEDDED
DE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SSV Embedded Systems eSOM/SK2
Summary of Contents for SSV Embedded Systems eSOM/SK2
- Page 1 Embedded Linux Starter Kit First Steps SSV Embedded Systems Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.0 E-mail: sales@ssv-embedded.de Date: 2010-05-14 OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW...
-
Page 2: Table Of Contents
- First Steps CONTENT INTRODUCTION .......................3 Safety Guidelines........................3 Conventions ...........................3 Features and Technical Data....................4 GETTING STARTED......................5 Serial Link between BB6/eSOM and PC................5 Ethernet Link between BB6/eSOM and PC ................6 Connecting Power Supply and Power-up the Starter Kit............7 Using Serial Link with Terminal Program ................8 Power-up eSOM/9263 with RCM disabled................9... -
Page 3: Introduction

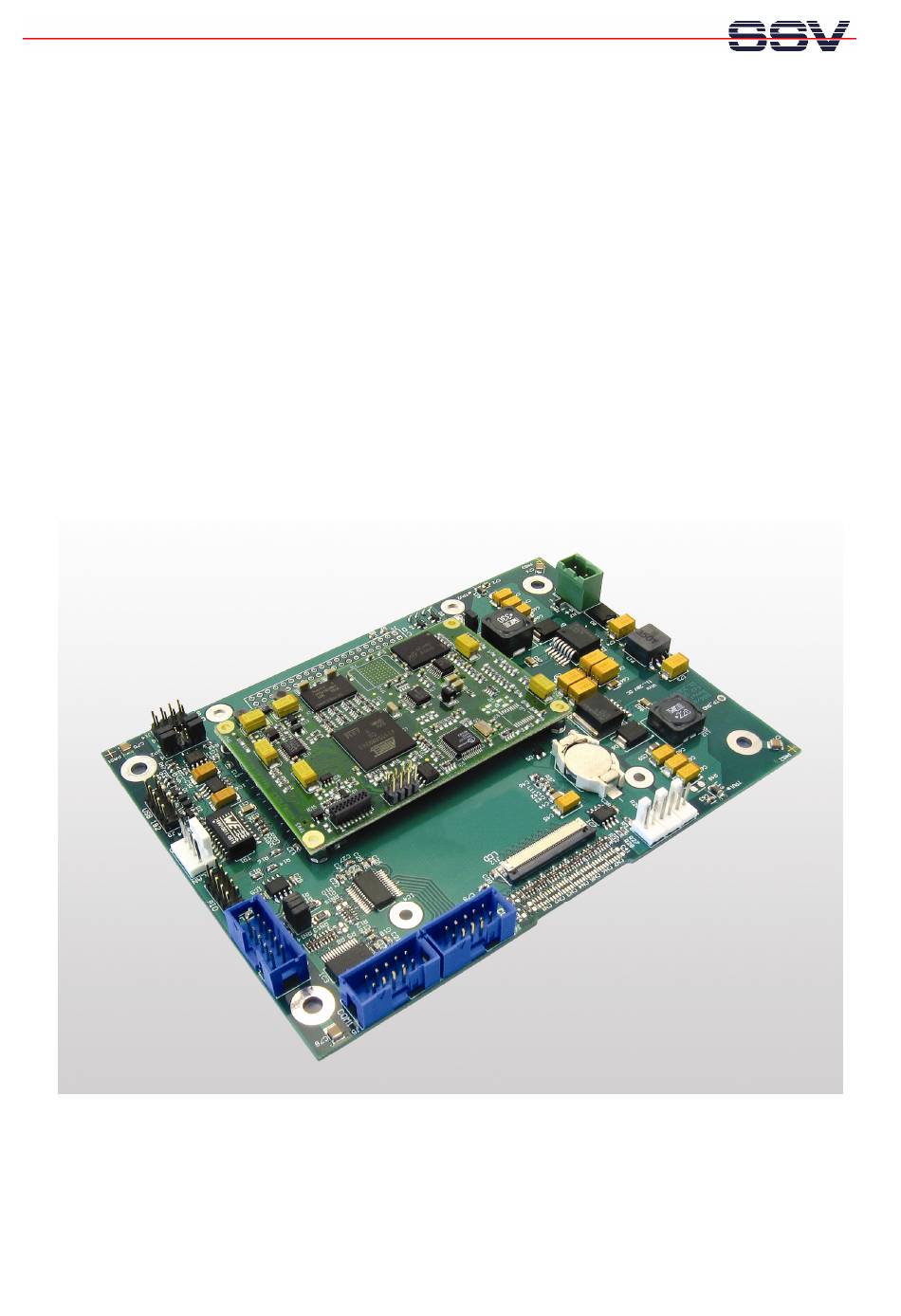

- First Steps INTRODUCTION The Starter Kit eSOM/SK2 contains everything you need to get started with your embedded networking application. The Starter Kit includes an eSOM/9263 module with a pre-installed U-Boot boot loader and an embedded Linux, the Evaluation Board BB6/eSOM, power sup- ply, serial interface (null modem) cable, a CD-ROM with software and documentation and a printed user manual for the first steps with the Starter Kit. -
Page 4: Features And Technical Data
- First Steps Features and Technical Data The eSOM/SK2 comes with a pre-installed U-Boot boot loader and an Embedded Linux op- erating system. The eSOM/9263 Linux consists of two main components: 1. the Linux ker- nel and 2. the root file system. -
Page 5: Getting Started
- First Steps GETTING STARTED Serial Link between BB6/eSOM and PC Setup the serial link between the Evaluation Board BB6/eSOM and your PC. Use a null mo- dem cable for this connection. Figure 1: Serial link between BB6/eSOM and PC Connect one end of the null modem cable with an unused COM port of your PC. -
Page 6: Ethernet Link Between Bb6/Esom And Pc
- First Steps Ethernet Link between BB6/eSOM and PC Setup the Ethernet LAN link between the Evaluation Board BB6/eSOM and your PC. Use an Ethernet cross-over cable or a switch-based infrastructure for the LAN connection. Figure 2: Ethernet link between BB6/eSOM and PC Please note: The eSOM/9263 comes with the default IP address 192.168.0.126. -
Page 7: Connecting Power Supply And Power-Up The Starter Kit
- First Steps Connecting Power Supply and Power-up the Starter Kit Connect the 12 VDC power supply with the barrel plug with the Evaluation Board BB6/eSOM. Please note: Make sure that all cable connections are OK. Then power-up the Starter Kit. -
Page 8: Using Serial Link With Terminal Program
- First Steps Using Serial Link with Terminal Program Run HyperTerminal on your Windows-PC, minicom or a similar simple terminal emulation program on your Linux-based PC. Figure 5: Direct connection setup with HyperTerminal Setup a direct connection with the parameters of table 2. Make sure, that the PC COM port supports 115.200 bps. -
Page 9: Power-Up Esom/9263 With Rcm Disabled
- First Steps Power-up eSOM/9263 with RCM disabled After power-up the eSOM/9263 starts an automatic boot process from the on-board flash memory chip. This process consists of two steps: 1. Directly after power-up, the eSOM/9263 runs the U-Boot boot loader program for some milliseconds. -
Page 10: Power-Up Esom/9263 With Rcm Enabled
- First Steps Power-up eSOM/9263 with RCM enabled The eSOM/9263 boot sequence with RCM enabled is similar to the boot procedure with RCM disabled. Only the first step is different: 1. The eSOM/9263 runs the U-Boot boot loader program. This software shows a wait message over the eSOM/9263 COM1 serial interface if RCM is enabled (please see the eSOM/9263 hardware reference manual for details). - Page 11 - First Steps Figure 10: After a login the serial console offers a Linux command line interface Wait until the Linux boot process finishes. Please use the username root and the pass- word root. Then press Enter. M a n u a l R e v i s i o n 1 . 0...
-
Page 12: Esom/9263 Linux File System
- First Steps eSOM/9263 Linux File System After booting the eSOM/SK2 all directories in the root file system are read-only. There are only three exceptions, which are shown in the following table: Directory Remark /flash R/W directory, non-volatile memory within Flash... -
Page 13: Checking Ip Address Of Pc
- First Steps Checking IP Address of PC Make sure that your PC is using the right IP address for the Ethernet-based TCP/IP com- munication with the eSOM/9263. Please use 192.168.0.1 or 192.168.0.254 for your PC and 192.168.0.126 for the eSOM/9263. -
Page 14: Checking Ethernet-Based Tcp/Ip Communication
- First Steps Checking Ethernet-based TCP/IP Communication Check the Ethernet-based TCP/IP communication between the eSOM/9263 and the PC with a simple ping command. Figure 13: Windows-PC TCP/IP communication check with ping First check the cable connections and then the IP addresses if your ping does not work. -
Page 15: Using A Telnet Connection
- First Steps 2.10 Using a Telnet Connection Run a Telnet client program on your PC with the IP address of the eSOM/9263. You can use a Telnet session for remote entering Linux commands. Figure 14: Run the Windows Telnet client program Wait until the eSOM/9263 Linux requests a user name. -
Page 16: Checking Ftp Server
Checking FTP Server The eSOM/SK2 Linux comes with a pre-installed FTP server. This server allows the file transfer via Ethernet between a PC and the eSOM/SK2. Run an FTP client program like FileZilla on your PC for a test. Figure 16: FileZilla as FTP client to access the FTP server Use for the FTP login the IP address 192.168.0.126, the username root and the... -
Page 17: Checking Tftp Client
2.12 Checking TFTP Client The eSOM/SK2 Linux comes with a pre installed TFTP client. This client allows the file transfer via Ethernet between a PC and the eSOM/SK2. Run a TFTP server like TFTPD32 on your PC for a test. -
Page 18: Checking Http Server
The browser shows the file index.html which is stored in the directory /www of the eSOM/SK2. Into this directory you can load own files. Figure 18: Checking the Web server of the eSOM/SK2 with a browser... -
Page 19: Changing Ex Factory Ip Address
2.14 Changing Ex Factory IP Address The default IP address of the eSOM/SK2 is 192.168.0.126. The IP address settings are stored in the file /etc/network/interfaces. Run a Telnet session and start the editor nano which is part of the Linux with the following command:... -
Page 20: Linux Boot Messages
IGW/400-UART – Linux Boot Messages LINUX BOOT MESSAGES Linux version 2.6.24.7 (mha@hareangle-saturn) (gcc version 4.1.2) #2 PREEMPT Thu Jul 2 15:42:14 CEST 2009 CPU: ARM926EJ-S [41069265] revision 5 (ARMv5TEJ), cr=00053177 Machine: SSV Hardware 9263/1 Memory policy: ECC disabled, Data cache writeback Clocks: CPU 192 MHz, master 96 MHz, main 16.000 MHz CPU0: D VIVT write-back cache CPU0: I cache: 16384 bytes, associativity 4, 32 byte lines,... - Page 21 - First Steps Intel/Sharp Extended Query Table at 0x010A Intel/Sharp Extended Query Table at 0x010A Intel/Sharp Extended Query Table at 0x010A Intel/Sharp Extended Query Table at 0x010A Intel/Sharp Extended Query Table at 0x010A Using buffer write method cfi_cmdset_0001: Erase suspend on write enabled...
-
Page 22: Bb6/Esom Hardware Reference
- First Steps BB6/ESOM HARDWARE REFERENCE The following chapters describe the main hardware components of the BB6/eSOM. BB6/eSOM Board Layout Figure 20: Board layout of BB6/eSOM Please note: Before using the CAN, SPI, PIO and USB connectors, please contact our support staff at support@ssv-embedded.de. -
Page 23: Pinout Com1 Connector - J5
- First Steps Pinout COM1 Connector – J5 Pin Name Function 1 DCD COM1 Serial Port, DCD Pin 2 DSR COM1 Serial Port, RXD Pin 3 RXD COM1 Serial Port, TXD Pin 4 RTS COM1 Serial Port, DTR Pin... -
Page 24: Pinout Com3 Connector - J7
- First Steps Pinout COM3 Connector – J7 Name Function 1 --- 2 --- 3 RX/TX+ COM3 Serial Port, RX/TX+ Pin (RS485) 4 RX/TX- COM3 Serial Port, RX/TX- Pin (RS485) 5 --- 6 --- 7 --- 8 ---... -
Page 25: Helpful Literature
Information in this document is provided ‘as is’ without warranty of any kind. Some names within this document can be trademarks of their respective holders. © 2010 SSV EMBEDDED SYSTEMS. All rights reserved. M a n u a l R e v i s i o n 1 . 0...
