SSV Embedded Systems eSOM/3517 Hardware Reference Manual

System-on-module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

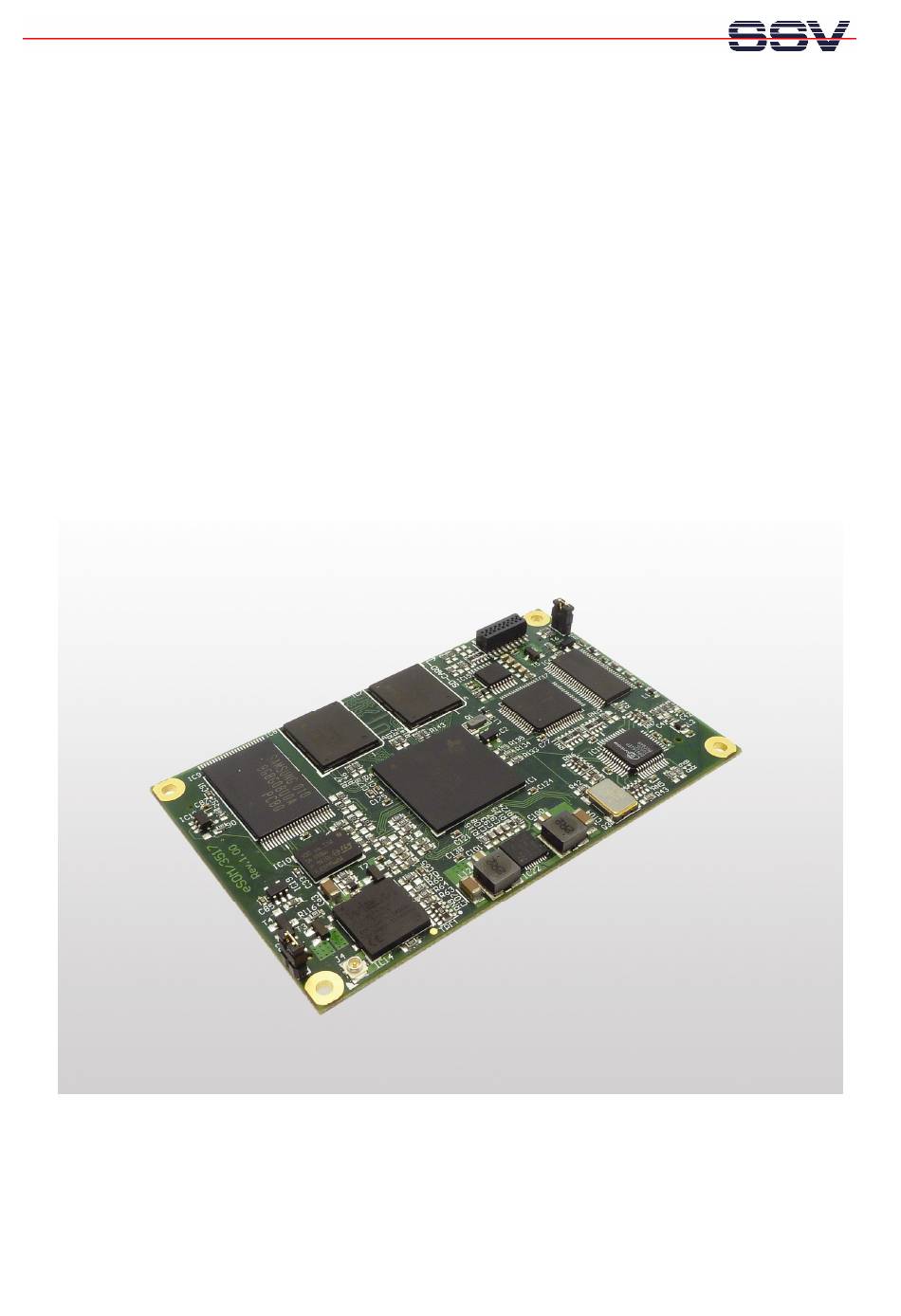

System-on-Module eSOM/3517
Board Revision 1.0
Hardware Reference
SSV Embedded Systems
Dünenweg 5
D-30419 Hannover
Phone: +49 (0)511/40 000-0
Fax:
+49 (0)511/40 000-40
Document Revision: 1.1
E-mail: sales@ssv-embedded.de
Date: 2012-08-08
F
.
-
.
OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW
SSV
EMBEDDED
DE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eSOM/3517 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSV Embedded Systems eSOM/3517

Summary of Contents for SSV Embedded Systems eSOM/3517

  • Page 1 System-on-Module eSOM/3517 Board Revision 1.0 Hardware Reference SSV Embedded Systems Dünenweg 5 D-30419 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 Document Revision: 1.1 E-mail: sales@ssv-embedded.de Date: 2012-08-08 OR FURTHER INFORMATION REGARDING OUR PRODUCTS PLEASE VISIT US AT WWW...

  • Page 2: Table Of Contents

    System-on-Module eSOM/3517 - Hardware Reference CONTENT INTRODUCTION .......................3 Safety Guidelines........................3 Conventions ...........................3 Block Diagram........................4 Features and Technical Data....................5 BOARD LAYOUT ......................6 PINOUTS ..........................7 2 x 100 Pin Connector – J1 (1. Part)..................7 2 x 100 Pin Connector – J1 (2. Part)..................8 2 x 100 Pin Connector –...

  • Page 3: Introduction

    System-on-Module eSOM/3517 - Hardware Reference INTRODUCTION This document describes the hardware components of the System-on-Module eSOM/3517. For further information about the individual components of this product you may follow the links from our website at http://www.ssv-embedded.de. Our website contains a lot of technical information, which will be updated in regular periods.

  • Page 4: Block Diagram

    Block Diagram Figure 1: Block diagram of System-on-Module eSOM/3517 B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 1...

  • Page 5: Features And Technical Data

    System-on-Module eSOM/3517 - Hardware Reference Features and Technical Data Texas Instruments AM3517 32-bit ARM Cortex-A8 SoC @ 600 MHz • 256 MB DDR2 SDRAM • 1 GB NAND Flash Memory for O/S Boot Image and Data Files • 8 MB NOR Flash Memory •...

  • Page 6: Board Layout

    BOARD LAYOUT Figure 2: Board layout System-on-Module eSOM/3517 B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 1...

  • Page 7: Pinouts

    System-on-Module eSOM/3517 - Hardware Reference PINOUTS 2 x 100 Pin Connector – J1 (1. Part) Name Group Function 1 VCC 3.3 Volt Power Input 2 VCC 3.3 Volt Power Input 3 PA0 GPIO GPIO - Parallel Port A, Bit 0...

  • Page 8: X 100 Pin Connector - J1 (2. Part)

    System-on-Module eSOM/3517 - Hardware Reference 2 x 100 Pin Connector – J1 (2. Part) Name Group Function 41 D2 EXPBUS Expansion Bus, Data Bit 2 42 D10 EXPBUS Expansion Bus, Data Bit 10 43 D3 EXPBUS Expansion Bus, Data Bit 3...

  • Page 9: X 100 Pin Connector - J1 (3. Part)

    System-on-Module eSOM/3517 - Hardware Reference 2 x 100 Pin Connector – J1 (3. Part) Name Group Function 81 A20 EXPBUS Expansion Bus, Address Bit 20 82 A21 EXPBUS Expansion Bus, Address Bit 21 83 A22 EXPBUS Expansion Bus, Address Bit 22...

  • Page 10: X 100 Pin Connector - J2 (1. Part)

    System-on-Module eSOM/3517 - Hardware Reference 2 x 100 Pin Connector – J2 (1. Part) Name Group Function 101 VCC3 3.3 Volt Power Input 102 VCC3 3.3 Volt Power Input 103 DCD1 Serial I/O, UART COM1 DCD Pin 104 I2SRX Serial I/O, I2S Interface RXD Pin...

  • Page 11: X 100 Pin Connector - J2 (2. Part)

    System-on-Module eSOM/3517 - Hardware Reference 2 x 100 Pin Connector – J2 (2. Part) Name Group Function 141 GND Ground 142 GND Ground 143 I2CSDA3 I2C Interface 3 Serial Data Line 144 LVDS3P LVDS Channel 3 Data+ 145 I2CSCL3 I2C Interface 3 Serial Clock Line...

  • Page 12: X 100 Pin Connector - J2 (3. Part)

    System-on-Module eSOM/3517 - Hardware Reference 2 x 100 Pin Connector – J2 (3. Part) Name Group Function 181 PB4 GPIO GPIO - Parallel Port B, Bit 4 182 PB0 GPIO GPIO - Parallel Port B, Bit 0 183 PB5 GPIO...

  • Page 13: Microsd Card Slot - J3

    System-on-Module eSOM/3517 - Hardware Reference microSD Card Slot – J3 Pin Name Function 1 SDDAT2 SD Card Data 2 2 SDDAT3 SD Card Data 3 3 SDCMD SD Card Command 4 VCC 3.3 VDC 5 SDCLK SD Card Clock 6 GND...

  • Page 14: Rcm Jumper - Jp1

    3.10 Boot Mode Selection Jumper – JP2 The boot mode selection jumper offers the possibility to boot the eSOM/3517 from the onboard NAND Flash memory or an external source like a microSD card. To boot from the onboard memory remove the jumper cap of the boot mode selection jumper.

  • Page 15: Memory Map

    256 MByte SDRAM 16-bit MEM R/W Table 12: System memory map of System-on-Module eSOM/3517 * GPMC = General Purpose Memory Controller B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 1...

  • Page 16: Mechanical Dimensions

    All length dimensions have a tolerance of 0.5 mm. The drillings are suitable for M2 screws. Figure 3: Mechanical dimensions of System-on-Module eSOM/3517 B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 1...

  • Page 17: Helpful Literature

    © 2012 SSV EMBEDDED SYSTEMS. All rights reserved. B o a r d R e v i s i o n 1 . 0 / M a n u a l R e v i s i o n 1 . 1...
