Safety Instructions, Installation & Operator's Manual For
IMPORTANT !
THIS KIT NOT INTENDED FOR
USE ON ANY SERIES OF HZ/HZS
YARD CRUISERS.
COPYRIGHT © 2000
SNAPPER INC.
ALL RIGHTS RESERVED

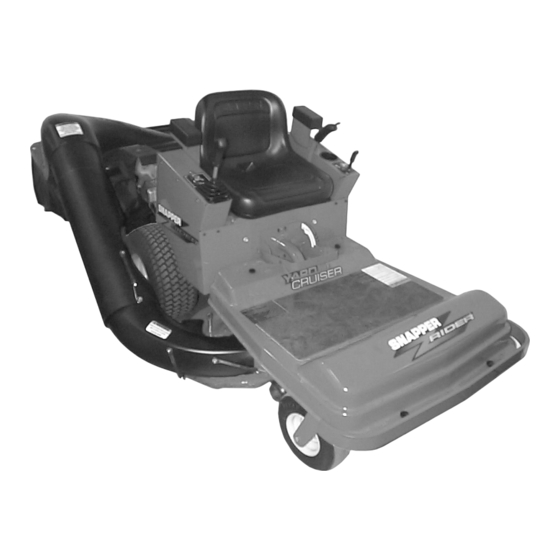

#6-3172 SINGLE BAG GRASS CATCHER KIT
FOR 38" YARD CRUISERS SERIES 2
MODEL YZ145382BVE
MANUAL No. 7-3955 (REV. 1, 12/08/00)
Advertisement
Table of Contents
Related Manuals for Snapper 6-3172
Summary of Contents for Snapper 6-3172
- Page 1 Safety Instructions, Installation & Operator’s Manual For #6-3172 SINGLE BAG GRASS CATCHER KIT FOR 38” YARD CRUISERS SERIES 2 MODEL YZ145382BVE IMPORTANT ! THIS KIT NOT INTENDED FOR USE ON ANY SERIES OF HZ/HZS YARD CRUISERS. COPYRIGHT © 2000 SNAPPER INC.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING All safety instructions and operating instructions in the manuals provided with the Snapper Yard Cruiser and this Grass Catcher attachment must be followed. Read, understand, and follow ALL instructions and warnings in the Operator’s Manual provided with the machine, with this attachment, and ALL instructions and warnings on the machine, engine and attachment. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..............2 TABLE OF CONTENTS..................3 SECTION 1 - ASSEMBLY INSTRUCTIONS ............ 4-8 Introduction..........................4 Bumper Bracket Installation....................4 Muffler Heat Shield Installation....................4 Front Weight Plate Installation....................5 Mounting Strap Installation ....................5 Deck Adapter Installation ....................5-6 Dust Skirt &... -
Page 4: Section 1 - Assembly Instructions
SECTION 1 – ASSEMBLY INSTRUCTIONS INTRODUCTION: The #6-3157 Single Bag Grass Catcher Kit fits Snapper Yard Cruiser YZ145382BVE, Series 2, models only. This Kit is not intended for use on Series 1 YZ models or any Series of HZ and HZS Yard Cruisers. -
Page 5: Front Weight Plate Installation
SECTION 1 – ASSEMBLY INSTRUCTIONS WARNING WARNING The lower end of the spring is held under tension by Front weight plates must be installed before the spring slot and can cause injury to the hand or operating machine with grass catcher. fingers when it is released. -
Page 6: Dust Skirt & Frame Assembly Installation
SECTION 1 – ASSEMBLY INSTRUCTIONS STEP 5 C. Position catcher frame over rear bumper and DECK ADAPTER INSTALLATION secure in place with (2) 5/16” diameter clevis pins E. Secure the front of the adapter to the gage wheel and (2) hairpins. NOTE: Skirt must be behind mounting bracket with the mounting strap. -
Page 7: Grass Bag Assembly
SECTION 1 – ASSEMBLY INSTRUCTIONS STEP 6 B. Rotate latch down to secure bag into place. See DUST SKIRT & FRAME ASSEMBLY INSTALLATION Figure 1.14. A. Align (5) holes in the plastic catcher top with the studs on the frame assembly. Secure in place using (5) special nuts (2-9840). -
Page 8: Deck Baffle Installation
SECTION 1 – ASSEMBLY INSTRUCTIONS Place the baffle onto bracket bolts and reinstall nuts onto bolts to hold baffle in position. Do not completely tighten at this time. NOTE: If there are two existing holes in deck it 3-6547 BLADE will not be necessary to drill new holes. -
Page 9: Section 2 - Operation & Maintenance
WARNING Follow operation and maintenance instructions in DO NOT attempt to remove any clogs from deck, the Operator’s Manual provided with the Snapper adapter, or tube with engine or blade running. Yard Cruiser Riding Mower. STOP engine. STOP blade. Engage parking brake. -
Page 10: Single Bag Assembly Components
SINGLE BAG GRASS CATCHER ILLUSTRATION (Continued on Page 12) - Page 11 SINGLE BAG GRASS CATCHER PARTS LIST (Continued on Page 13) ITEM PART NO. DESCRIPTION 5-7983 TOP, Container 7-1679 SKIRT, Dust 2-9840 WASHER, Faceted (5) 4-6651 FRAME, Grass Bag (Weldment) 2-9841 CLEVIS PIN, 5/16 x 1-11/16” (2) 3-1725 LATCH, Grass Catcher 9-0532 SCREW, 10-32 x 1-11/16”...
- Page 12 SINGLE BAG GRASS CATCHER ILLUSTRATION (Continued From Page 10)
- Page 13 SINGLE BAG GRASS CATCHER PARTS LIST (Continued From Page 11) ITEM PART NO. DESCRIPTION 5-7983 TOP, Container 7-1679 SKIRT, Dust 2-9840 WASHER, Faceted (5) 4-6651 FRAME, Grass Bag (Weldment) 2-9841 CLEVIS PIN, 5/16 x 1-11/16” (2) 3-1725 LATCH, Grass Catcher 9-0532 SCREW, 10-32 x 1-11/16”...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 Safety Instructions, Installation & Operator’s Manual For #6-3172 SINGLE BAG GRASS CATCHER KIT FOR 38” YARD CRUISERS SERIES 2 MODEL YZ145382BVE COPYRIGHT © 2000 SNAPPER INC. ALL RIGHTS RESERVED MANUAL No. 7-3955 (REV. 1, 12/08/00)
