Touchsafe
Wireless Nursecall System
_________________________________________________________________________________________________
Aidcall operates a policy of continual product improvement and
reserves the right to modify the specification of its products.
If any variation to the details in this document are suspected please
contact Aidcall's Technical Support.
Aidcall, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
T: +44 (0)
1670 357 431 www.aidcall.co.uk
________________________________________________________________

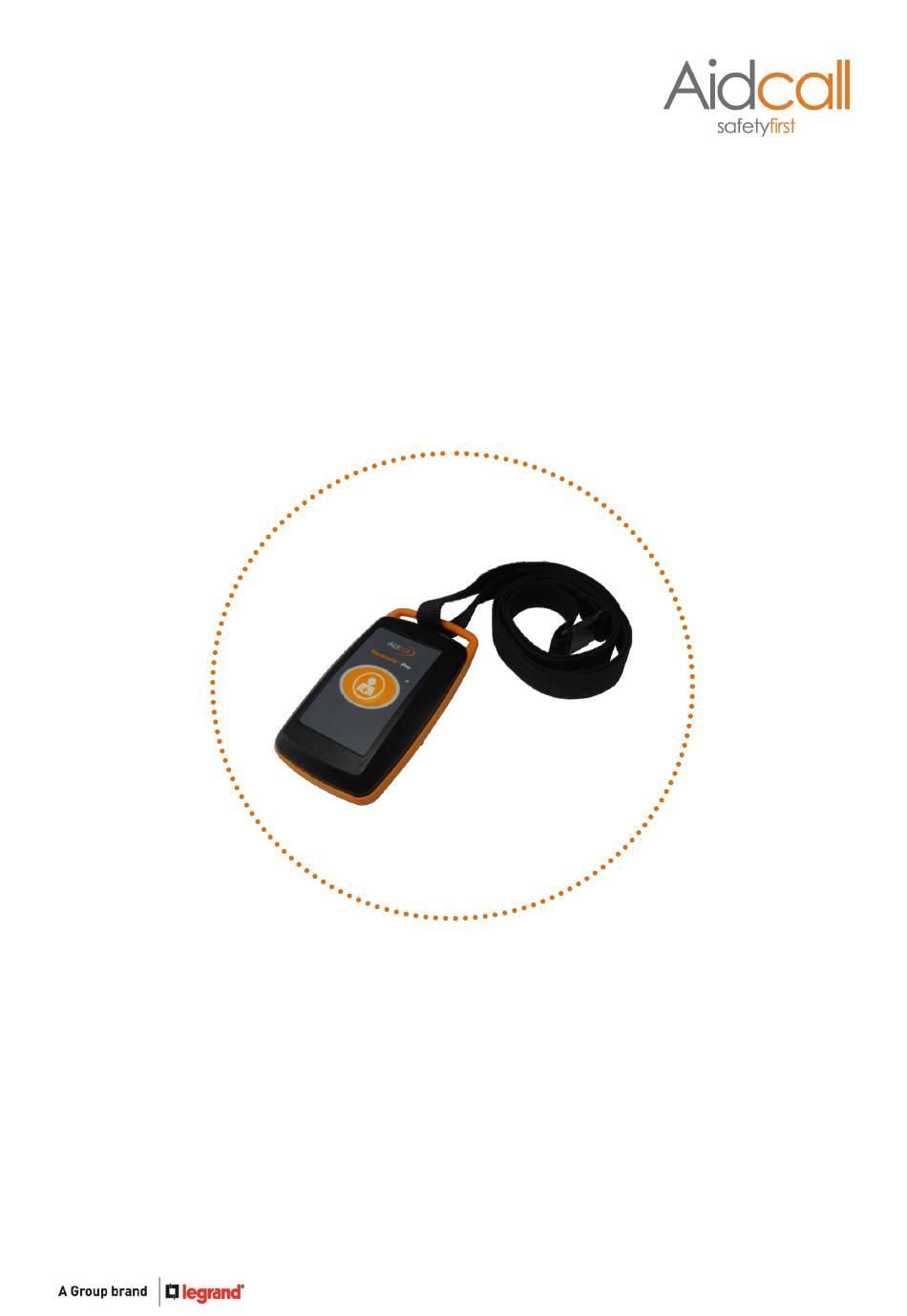

Pro
®
Location Pendant
Installation Guide
Doc No. FM5541 issue A Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Aidcall Touchsafe Pro
Summary of Contents for LEGRAND Aidcall Touchsafe Pro
- Page 1 If any variation to the details in this document are suspected please contact Aidcall’s Technical Support. Aidcall, a business unit of Legrand Electric Ltd Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF. T: +44 (0) 1670 357 431 www.aidcall.co.uk...
-
Page 2: Table Of Contents
CONTENTS Section Topic Page Product Overview Important Safety Instructions Regulatory Information Maintenance & Care Location Pendant Features Setting the Location Pendant ID Touchsafe Pro Panel Programming Testing the Location Pendant Replacing the Battery Specification CONTENTS 1. PRODUCT OVERVIEW Touchsafe Pro Location Pendants are battery powered and communicate using a standard 169MHz Telecare site-wide radio transmission and a short range infrared transmission. -
Page 3: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS Read and understand these instructions before use. Keep these instructions for future reference. Do not disassemble this product or attempt to repair it yourself. No user serviceable parts inside. Refer all servicing to qualified service personnel. This product should only be powered by 1 x 3.6V ½... -
Page 4: Regulatory Information
3. REGULATORY INFORMATION We declare this product complies with the relevant UK legislation on condition that it is used in the manner intended, and in accordance with the current installation standards and/or the manufacturer's recommendations. A copy of the full UKCA Declaration of Conformity is available on request. We declare this product complies with the relevant European legislation on condition that it is used in the manner intended, and in accordance with the current installation standards and/or the manufacturer's recommendations. -
Page 5: Location Pendant Features
5. LOCATION PENDANT FEATURES The key features of the Location Pendant are identified below; Aidcall Part No. ZNC663 Neck Lanyard with Safety Closure Orange Call Button Call Reassurance LED Refer to the Touchsafe Pro Location Pendant User Guide (Aidcall Doc No. FM5546) for details on how the unit operates Doc No. -
Page 6: Setting The Location Pendant Id
6. SETTING THE LOCATION PENDANT ID The Location Pendant can be programmed with an infrared ID in the range 1-99, however this range is also used by Touchsafe Pro Buddies and Touchsafe Pro Pagers for Nurse Present mode. Care must be taken to program the Location Pendant with an ID that is not currently being used by any other device. -
Page 7: Touchsafe Pro Panel Programming
7. TOUCHSAFE PRO PANEL PROGRAMMING From the Touchsafe Pro Master Panel; Logon as an Engineer or a Manager, then from the main menu page touch the Telecare button to open the screen shown below… On-screen keypad Enter Location Pendant 8 Digit ID Set the Enable Location checkbox Call Point ID here... -
Page 8: Testing The Location Pendant
8. TESTING THE LOCATION PENDANT Activate the Location Pendant and check the call is displayed on the Nursecall panel. If both the alarm radio transmission and the infrared location information is received, the panel will display “Pendant Location” with details of where the Pendant is located and whose Pendant it is. If the radio transmission only is received (i.e. -
Page 9: Replacing The Battery
9. REPLACING THE BATTERY When the Location Pendant battery is running low; a “Device Status” alarm will be displayed on the Nursecall panel to indicate which Pendant is affected. Always replace the battery within 72 hours of a low battery warning. If the warning changes to CRITICAL replace the battery IMMEDIATELY. -
Page 10: Specification
10. SPECIFICATION Aidcall Part No. ZNC663 Approvals Safety Compliance to EN 62368-1 Compliance to EMC 2014/30/EU Radio Compliance to RED 2014/53/EU Materials Compliance to RoHS 2011/65/EU Transmission Radio Frequency 169.48125MHz Radio Range 80m to 100m Typical (indoor) Radio ID Range 20000001 to 20999999 (factory programmed) Infrared Peak Wavelength 940nm...
