  6. Original instructions manual

movomech EASYCRANE Original Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E A S Y C R A N E
EN
Translation of the original instructions
2022-07-18
Easycrane - frontpage

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EASYCRANE and is the answer not in the manual?

Questions and answers

Related Manuals for movomech EASYCRANE

Summary of Contents for movomech EASYCRANE

  • Page 1 E A S Y C R A N E Translation of the original instructions 2022-07-18 Easycrane - frontpage...
  • Page 2 The customer is reminded that in the purchase of Movomech’s products for application on the job or elsewhere, there is supplementary, current information that could not be included in the catalogue in terms of recommendations on each product’s suitability regarding different combinations of Movomech’s comprehensive product line.

  • Page 3: Table Of Contents

    User instructions ......................16 The crane ........................16 Lifting equipment ......................16 Service, maintenance and running .................. 17 Components ....................... 18 Service record — Easycrane ..................32 Troubleshooting......................32 Curcuit diagram ......................33 EC certificate ........................39 Appendices: APPENDIX 1:...

  • Page 4: Safety

    Safety Movomech’s equipment is manufactured in accordance with the latest technological advances, and according to the latest applicable European standards and directions. The aim of this documentation is to provide the user with practical instructions for safe operation and simple maintenance of the equipment.
  • Page 5 Faults should be corrected immediately! knowledge of the equipment and its function. Note in particular: • The Easycrane and the attached equipment is only to be operated • Consider using ear-defenders. by personnel that have read and understood the contents of this •...

  • Page 6: Description

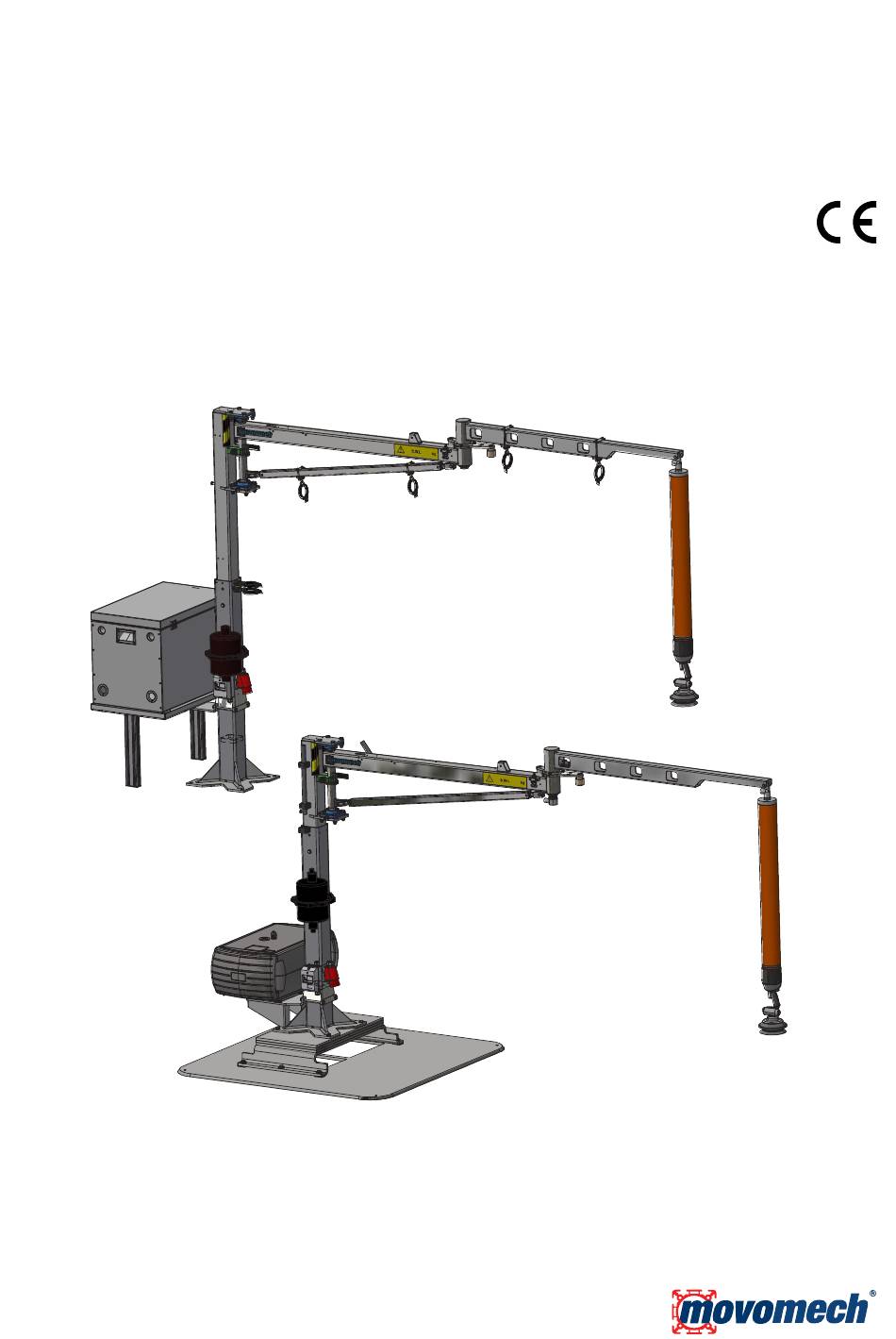

    The crane has a vacuum pump to create the vacuum for the suction cup. The vacuum pump is mounted The Easycrane has an inner and an outer jibarm which can be locked on a bracket on the crane mast.

  • Page 7: Technical Data

    3. Technical data B ( 1 : 30 ) 1480 Dimensions and weight a [mm] b [mm] c [mm] d [mm] Weight [kg] A - Mobile foot plate 0 A - Mobile foot plate 1 A - Mobile foot plate 2 A - Mobile foot plate 3 A - Mobile foot plate 4 A - Mobile foot plate 5...

  • Page 8: Installation

    8 \ Easycrane Doc 2022-07-18 \ Installation 4. Installation See relevant sections in Annex 1 also. Preparations ØD NB: Carefully read chapter 2 on safety before starting installation of the crane. Before you install the crane, you must check whether: •...
  • Page 9 Installing to floor The crane is mounted in the floor using four expander bolts (part no. 743573 HST3 M16x135). The floor must be of concrete and be of min 125 C20/25 quality, with a minimum thickness of 140 mm. Place the mast in position on the floor. Use the floor plate of the mast as a template to drill four holes, Ø16 mm to a depth of 108 mm (see image).

  • Page 10: Crane With A Mobile Foot Plate And Adjustable Tower

    10 \ Easycrane Doc 2022-07-18 \ Installation Crane with a mobile foot plate and adjustable tower The crane is delivered assembled. Place the crane in position on the floor. Adjust the levelling screws at the corners of the mobile foot plate so that these touch the floor and the crane is standing securely.

  • Page 11: Crane With Mobile Foot Plate And Fixed Tower

    Crane with mobile foot plate and fixed tower This version is delivered in three parts: • mobile foot plate • fixed tower • inner and outer arms Assembling the tower to the mobile foot plate Place the foot plate on the floor and remove the screws (A) Place the tower on the foot plate, and make sure that the tower and the foot plate are facing as per the illustration.

  • Page 12: Wall-Mounted Crane

    12 \ Easycrane Doc 2022-07-18 \ Installation 4.5 Wall-mounted crane The crane is delivered assembled: For the installation, you will need: 16 pcs Nut M12, grade 8.8 4 each 8.8 threaded rod M12 Length = thickness of wall/pillar + 90mm...

  • Page 13: Adjusting The Jib

    4.6 Adjusting the jib When the jib is adjusted, the lifting equipment must be attached but no load is to be carried (empty). Commence by setting the crane height. Undo the tension screws (1), remove the wing nut (3), and remove the screw.

  • Page 14: Adjusting The Inner Brake

    14 \ Easycrane Doc 2022-07-18 \ Installation Adjusting the inner brake The inner brake (dee image) is adjusted so that the crane jib does not turn. Set the lock handle of the inner brake in the open position. Adjust the brake by tightening or releasing the lock nut (see image).

  • Page 15: Adjusting The Rotation Limiter

    Mount the vacuum pump and connect it according to “6.4 Cur- cuit diagram” on page 33. Connect the Easycrane to the mains. Connect by using an extension cable with a socket outlet (400 V, 16 A) to the connector of the crane (1).

  • Page 16: User Instructions

    16 \ Easycrane Doc 2022-07-18 \ User instructions 5. User instructions NB! Before any kind of work is performed on or with the Easycrane, A complete work station that includes a Easycrane, must have a the chapter ”Safety” must have been carefully read and understood.

  • Page 17: Service, Maintenance And Running

    6. Service, maintenance and running A general review and functional control tests are performed on a regular basis during commissioning. All service and maintenance shall be recorded. The user should make sure that material for the purpose is easily available. NOTE: Make sure that damaged components are replaced immediately in order to avoid possible personal and material damage.

  • Page 18: Components

    18 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running Components 743440 Adjustable tower EC25 Article nr. Designation Quantity 743200 Lower tower-weld 743201 Upper tower-weld 743226 Adjustment plate 743263 Bearing unit Ø35 743267 Screw M6S M10x140, half thread 743268 Wing nut M10...
  • Page 19 744733 Adjustable tower EC32/50 Article nr. Designation Quantity 743200 Lower tower-weld 743201 Upper tower-weld 743226 Adjustment plate 743263 Bearing unit Ø35 743267 Screw M6S M10x140, half thread 743268 Wing nut M10 743269 Adjustable hand lever M12x40 743417 Edge protection 30x30x10 744765 Hosebracket - pillar R: spare part S: wear part...
  • Page 20 20 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 743441 Adjustable tower +500 EC25 Article nr. Designation Quantity 743200 Lower tower-weld 743202 Upper tower +500 -weld 743226 Adjustment plate 743263 Bearing unit Ø35 743267 Screw M6S M10x140, half thread...
  • Page 21 744734 Adjustable tower +500 EC32/50 Article nr. Designation Quantity 743200 Lower tower-weld 743202 Upper tower +500 -weld 743226 Adjustment plate 743263 Bearing unit Ø35 743267 Screw M6S M10x140, half thread 743268 Wing nut M10 743269 Adjustable hand lever M12x40 743417 Edge protection 30x30x10 744765 Hosebracket - pillar...
  • Page 22 22 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 744732 Tower, fixed height EC25 Article nr. Designation Quantity 743226 Adjustment plate 743263 Bearing unit Ø35 743417 Edge protection 30x30x10 743452 Vacuum pipe-Tower 743954 Tower, fixed height-weld R: spare part S: wear part...
  • Page 23 744735 Tower, fixed height EC32/50 Article nr. Designation Quantity 743226 Adjustment plate 743263 Bearing unit Ø35 743417 Edge protection 30x30x10 743954 Tower, fixed height-weld 744765 Hosebracket - pillar 744735 R: spare part S: wear part Tower EC32/50, fixed height...
  • Page 24 24 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 743255 Wall mounting Article nr. Designation Quantity 743203 Wall mounting-weld 743263 Bearing unit Ø35 743417 Edge protection 30x30x10 Shims-dok Shim washer Article nr. Designation Quantity 743506 Shim washer 743974 Rotation limiter 743255 Article nr.
  • Page 25 743443 Inner arm EC25, 1m Article nr. Designation Quantity 743270 Ball bearing 743271 Fork link M16, right-threaded 743272 Fork link M16, left-threaded 743278 Indexing plunger 743204 Inner arm 1m,-weld 743460 Inner brake -> 743207 Support rod 1m 743459 Vacuum pipe 1m 743444 Inner arm EC25, 1,5m Article nr.
  • Page 26 26 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 744736 Inner arm EC32/50, 1m 744737 Inner arm EC32/50, 1,5m Article nr. Designation Quantity Article nr. Designation Quantity 743270 Ball bearing 743270 Ball bearing 743271 Fork link M16, right-threaded 743271...
  • Page 27 730904 743279 743416 743460 Inner brake Article nr. Designation Quantity 730904 Locking nut M10 743461 743279 Disc spring Ø28x10,2x1,5 743416 Cam clamping lever M10 743462 743461 Brake pad 743462 Pressure washer 731793 Threaded bar M10 731793 Position 743446 Outer arm, EC25 1m Article nr.
  • Page 28 28 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 744739 Outer arm, EC32/50 1m Article nr. Designation Quantity 744769 Hose bracket - outer arm 743465 Outer arm, TP 1m 738975 Rubber damper 50/30x36 744740 Outer arm, EC32/50 1,5m Article nr.
  • Page 29 744744 Pump C with silence box 744745 Pump D with silence box Article nr. Designation Quantity Article nr. Designation Quantity 860074 Silencing box pump C 660001- D40 Pump BE 40 660001- C25 Pump BE 25 860067 Silencing box pump D 744746 Pump F with silence box 744747...
  • Page 30 30 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 744750 Pump K with silence box Article nr. Designation Quantity 860066-20 Silencing box pump K 660001-K60 Pump BE 60 744751 Electrical interface 1,6-2,5 A 743422 Electrical interface 2,5-4 A Article nr.
  • Page 31 Pump shelf-dok Pump shelfes Article nr. Designation Quantity 744743 Pump shelf F, G, H, I, K 744742 Pump shelf C, D Pump shelf-dok R: spare part S: wear part...

  • Page 32: Service Record - Easycrane

    32 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running 6.2 Service record — Easycrane Client/ place: The service record shall be kept by the client/user. Service Date:  Visual inspection, examine whether the product exhibits damages  Auditory inspection, examine whether the product exhibits discordant sound * If applicable.

  • Page 33: Curcuit Diagram

    6.4 Curcuit diagram...
  • Page 34 34 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running...
  • Page 36 36 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running...
  • Page 38 38 \ Easycrane Doc 2022-07-18 \ Service, maintenance and running...

  • Page 39: Ec Certificate

    EC certificate EC declaration of conformity of the machinery TRANSLATION (according to 2006/42/EG, annex 2A) Manufacturer Movomech AB Tel: +46 (0)44 28 29 00 Box 9083 Fax: +46 (0)44 28 29 28 291 09 Kristianstad E-mail: info@movomech.se Web: www.movomech.com Sweden...
