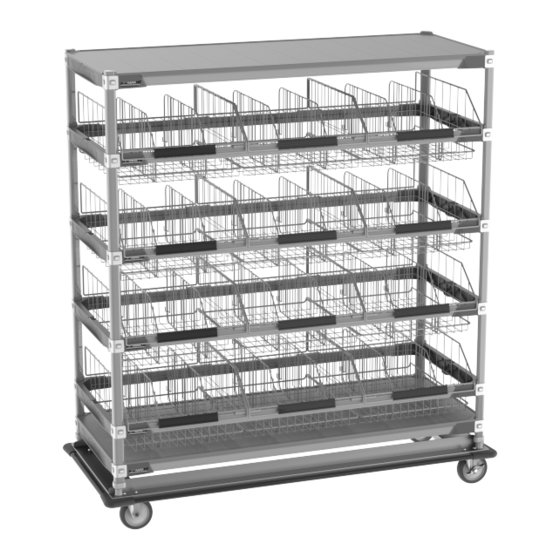

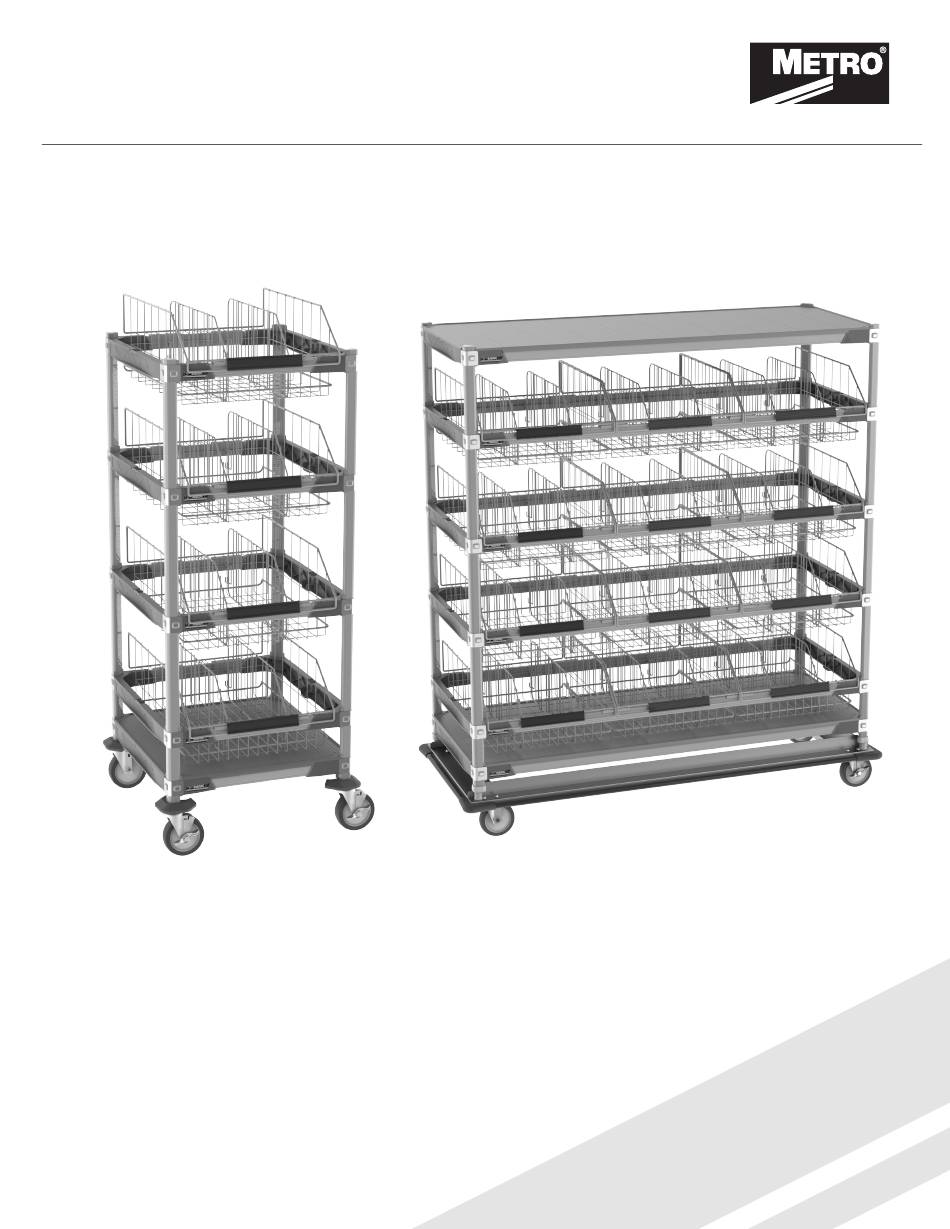

- Page 1 INSTRUCTIONS FOR USE I.V. SOLUTION HANDLING SYSTEM MXIV1, MXIV2 MXIV4, MXIV5, MXIV6, MXIV7 STEM CASTER CART DOLLY MOUNTED CART...
- Page 2 I.V. SOLUTION HANDLING SYSTEM — INSTRUCTIONS FOR USE Assembly of MXIV1-Stem Caster Cart TWO PEOPLE REQUIRED TO ASSEMBLE UNIT Trilobal Bumper Trilobal Post Press The Caster Until C-ring The C-ring Compresses And Fits Inside The Post. Brake Caster Swivel Caster...
- Page 3 I.V. SOLUTION HANDLING SYSTEM — INSTRUCTIONS FOR USE Groove # 54 (Typ) Groove # 25 (Typ) Groove # 40 (Typ) L01-169 REV B 12/21 www.metro.com...
- Page 4 I.V. SOLUTION HANDLING SYSTEM — INSTRUCTIONS FOR USE Divider Beam Cap (4 Per Frame) I.V. Basket MOUNTING BASKET IN HORIZONTAL POSITION L01-169 REV B 12/21 www.metro.com...
- Page 5 I.V. SOLUTION HANDLING SYSTEM — INSTRUCTIONS FOR USE Label Holder MOUNTING BASKET IN SLANTED POSITION THIS COMPLETES THE ASSEMBLY OF STEM CASTER CART L01-169 REV B 12/21 www.metro.com...
- Page 6 I.V. SOLUTION HANDLING SYSTEM — INSTRUCTIONS FOR USE Assembly of MXIV7-Dolly Mounted Cart TWO PEOPLE REQUIRED TO ASSEMBLE UNIT Trilobal Post Groove # 5 (Typ) Wedge Leveling Leg Groove # 24 (Typ) Frame REPEAT STEPS 8-10 OF PAGE 2 FOLLOW STEP 7 TO INSTALL REMAINING FRAMES ON GROOVES 37, 51...
- Page 7 I.V. SOLUTION HANDLING SYSTEM — INSTRUCTIONS FOR USE STATIONARY CART Groove # 62 (Typ) REPEAT STEPS 8-9 OF PAGE 2 F C A R T F R O N T O Torque Bolts to 20-25 ft.lbs Rigid Brake Dolly Caster Caster Swivel Casters L01-169...
- Page 8 FOLLOW STEPS 15-24 OF PAGES 4-5 TO INSTALL I.V. BASKET, DIVIDER, BEAM CAP AND LABEL HOLDER THIS COMPLETES THE ASSEMBLY OF DOLLY MOUNTED CART * Save this document for future application, load rating and/or safety reference. © 2021 InterMetro Industries Corporation, Wilkes-Barre, PA 18705 L01-169 REV B 12/21...
