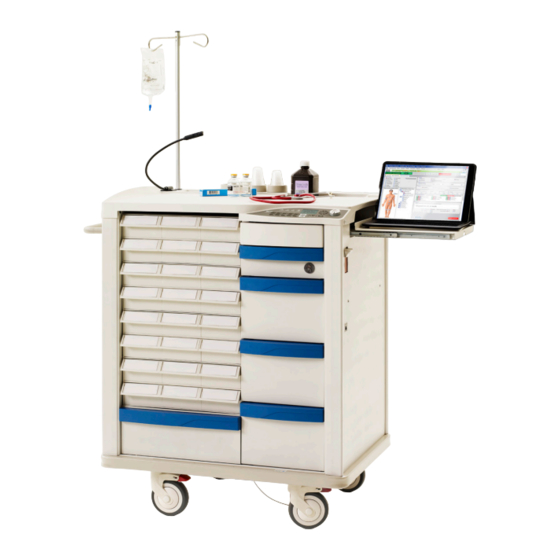

Metro DataVac LIONVILLE Series Quick Start Manual

QUICK START GUIDE
LIONVILLE
TOUCHPADS-BASIC/ADVANCED/WIRELESS
Basic Touchpad
7
8
10

Touchpads for Basic, Advanced and Wireless Models:

1. Override Lock
2. "UP" button
3. "BACK/CANCEL" button
4. Dot matrix LCD
5. "ENTER" button
6. Low battery indicator (yellow LED)
Carts arrive with 2 pre-programmed codes. The following is a review of each:
• The default supervisor code is 1350. Supervisor credentials unlock the cart and can add or delete users and other supervisors.
• The default user code is 0531. User credentials can only unlock the cart.

Unlocking the Cart using the Touchpad or the Card Reader:

PIN CREDENTIAL:
1. Enter a valid PIN (between 4 - 14 digits).
2. Press "ENTER."
• If the code is VALID, system will automatically unlock unit.
• If the code is INVALID, system will not unlock unit (red LED indicator on keypad (callout 6) will blink 3 times and 3 beeps will be
heard). Re-enter correct code.
• If enabled, the Access Denied mode will be triggered if a certain number of INVALID CODES are entered within a set number of
minutes. If the Access Denied mode is activated, the unit will lock out the touchpad for a set number of minutes, and no access
will be granted via the touchpad until the timeout has expired. A valid card credential will still be accepted. The settings for the
Access Denied are accessed via the LockView software.
CARTS WITH KEYLESS ENTRY
®
1
5
6
11
7. Access Denied indicator (red LED)
8. Unlocked Cart indicator (green LED)
9. Network activity indicator (blue LED)
10. Numeric keypad
11. "LOCK/CLEAR" button
12. "+" button
Advanced & Wireless Touchpad
5 4
7 6
9 8
12 13 14 15 16 17
10
11
13. "-" button
14. "SYNC" button
15. "DOWN" button
16. "Menu" button
17. "NEXT/SELECT" button
3 2 1
