- Page 1 WM500 V.01-2022...
-
Page 2: Table Of Contents

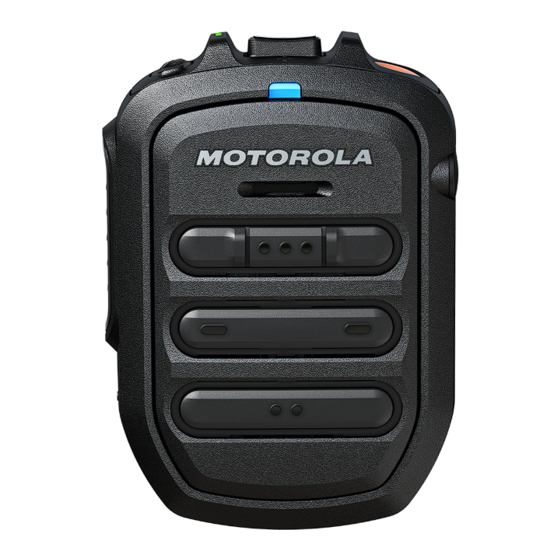

WM500 WIRELESS REMOTE SPEAKER MICROPHONE TABLE OF CONTENTS WM500 OVERVIEW | PAIRING Update Software Later Primary Flow of Language Pack Upgrade 16-17 PMMN4127A Language Pack Upgrade Product Overview Language Pack Upgrade Later Charging the Battery Language Pack Upgrade for Multiple WM500s... -
Page 3: Wm500 Overview | Pairing
100m line of sight Belt Clip 4205823V01 (Inbox) LEX L11, BYOD Android, TLK 100, TLK 150 and SLN 1000 ION (Requires WM500 firmware R03.00.00 and beyond) CB000756A01 (Inbox) USB-C Cable (1m) Compatible Radios MXP600 and R7 (Requires WM500 firmware R04.00.00... -
Page 4: Product Overview
WM500 WIRELESS REMOTE SPEAKER MICROPHONE PRODUCT OVERVIEW DESCRIPTION DESCRIPTION Volume toggle P3 button Power Indicator Function configured on the host but not the WAVE application. WAVE default function: Channel Up Power button P4 button Push-To-Talk (PTT) button Function is set by the host: PTT call can be either transmitted to a talkgroup Function configured on the host or the WAVE application. -
Page 5: Charging The Battery
WM500 WIRELESS REMOTE SPEAKER MICROPHONE CHARGING THE BATTERY GETTING STARTED Before you start, fully charge the RSM. To charge, connect When RSM is not charging, read the following table to the USB charging cable to the RSM and plug it to the USB understand the indication. -
Page 6: Led Status Indication
WM500 WIRELESS REMOTE SPEAKER MICROPHONE LED STATUS INDICATION Read the following table to understand the audio and Short press the Power button to determine the details Bluetooth status indication status of the RSM. TABLE 5: AUDIO AND BLUETOOTH STATUS TABLE 6: STATUS INDICATION... -
Page 7: Rsm Button Operations
WM500 WIRELESS REMOTE SPEAKER MICROPHONE RSM BUTTON OPERATIONS WM500 BUTTON BUTTON BUTTON BUTTON STATE SHORT PRESS LONG PRESS (>1.5s) VERY LONG PRESS (>3s) Power on Enter pairing Power RSM turns on Power off Connected PTT for Kodiak Group Call Not connected... -
Page 8: Pairing To Devices
“Ring” tone indicating Host is requesting for connection. Note: The WM500 supports various pairing methods depending on the compatible device. If you are using TLK100 or TLK150, refer to Wave Portal User Guide for bluetooth pairing process. If you are... -
Page 9: Wm500 Firmware Upgrades
ACCESSORY MANAGER APPLICATION... -
Page 10: Accessory Manager App - For Future Sf Upgrades
ACCESSORY MANAGER APP ICON & APP NAME Note: Install Accessory Manager application to upgrade WM500 firmware to the latest version for the first time before use. The URL will redirect user to Google Play Store or Apple App Store upon clicking Google Play or App Store. -
Page 11: Opening The App
WM500 WIRELESS REMOTE SPEAKER MICROPHONE OPENING THE APP... -
Page 12: Primary Flow When Device Is Connected
WM500 WIRELESS REMOTE SPEAKER MICROPHONE PRIMARY FLOW WHEN DEVICE IS CONNECTED... - Page 13 WM500 WIRELESS REMOTE SPEAKER MICROPHONE PRIMARY FLOW WHEN DEVICE IS CONNECTED Note: Notification will show on phone once transfer progress is 100% when app is minimized Note: Notification will show on phone when app is minimized...
-
Page 14: Update Software
WM500 WIRELESS REMOTE SPEAKER MICROPHONE UPDATE SOFTWARE Note: WM500 software version updated to 4.0.0... -
Page 15: Update Software Later
WM500 WIRELESS REMOTE SPEAKER MICROPHONE UPDATE SOFTWARE LATER Select OK If select update LATER... -
Page 16: Primary Flow Of Language Pack Upgrade
WM500 WIRELESS REMOTE SPEAKER MICROPHONE PRIMARY FLOW OF LANGUAGE PACK UPGRADE Note: Default on the apps will always show English irrespective of WM500 preset language. - Page 17 WM500 WIRELESS REMOTE SPEAKER MICROPHONE PRIMARY FLOW OF LANGUAGE PACK UPGRADE Note: Notification will show on phone once transfer progress is 100% when app is minimized...
-
Page 18: Language Pack Upgrade
WM500 WIRELESS REMOTE SPEAKER MICROPHONE LANGUAGE PACK UPGRADE... -
Page 19: Language Pack Upgrade Later
WM500 WIRELESS REMOTE SPEAKER MICROPHONE LANGUAGE PACK UPGRADE LATER Select OK If select update LATER... -
Page 20: Language Pack Upgrade For Multiple Wm500S
LANGUAGE PACK UPGRADE FOR MULTIPLE WM500s Accessory Manager application is able to support language upgrade for multiple units of WM500 To upgrade multiple units of WM500 to the same language (e.g.: French), please use the ‘RESET’ function & choose French again ●... -
Page 21: Wm500 Language Upgrades
CONNECTING TO WAVE AND NITRO DEVICES... -
Page 22: Pairing To Devices Via Wave And Nitro Portals
WM500 WIRELESS REMOTE SPEAKER MICROPHONE PAIRING TO DEVICES via WAVE and NITRO PORTALS BLUETOOTH STATUS AT RADIO BLUETOOTH ACCESSORY CONFIGURATION IN WAVE PORTAL “Bluetooth 1. From Wave On Cloud portal, select desired WAVE or SLN1000 Device Searching” 2. Select “Actions” > “Bluetooth Accessories”... -
Page 23: Programing Buttons Via Wave And Nitro Portals
WM500 WIRELESS REMOTE SPEAKER MICROPHONE PROGRAMMING BUTTONS via WAVE and NITRO PORTALS 1. From Wave On Cloud portal, select desired WAVE or SLN1000 Device. 2. Select “Accessory Button” configuration. 3. Configure desired button functions. 3. Once done, click “SAVE.”... - Page 24 UPGRADING WM500 TO SUPPORT MXP600 AND R7...
-
Page 25: Compatibility With Mxp600 And R7
WM500 WIRELESS REMOTE SPEAKER MICROPHONE COMPATIBILITY WITH MXP600 and R7 ● WM500 v4.0.0 onwards is compatible with MXP600 and R7. Should your WM500 is not v4.0.0 (or R04.00.00), please upgrade the RSM with Accessory Manager application (click here) ●... -
Page 27: Faq
WM500 prompts a bad bonk audio when button is pressed. d. WM500 prompts “Disconnected” audio notification. Recovery method: Power off WM500, power cycle R7 radio and clear WM500 pairing info from R7 radio. Perform a fresh pairing between WM500 and R7 radio. - Page 28 THANK YOU...
