Summary of Contents for Voltask SB-EA

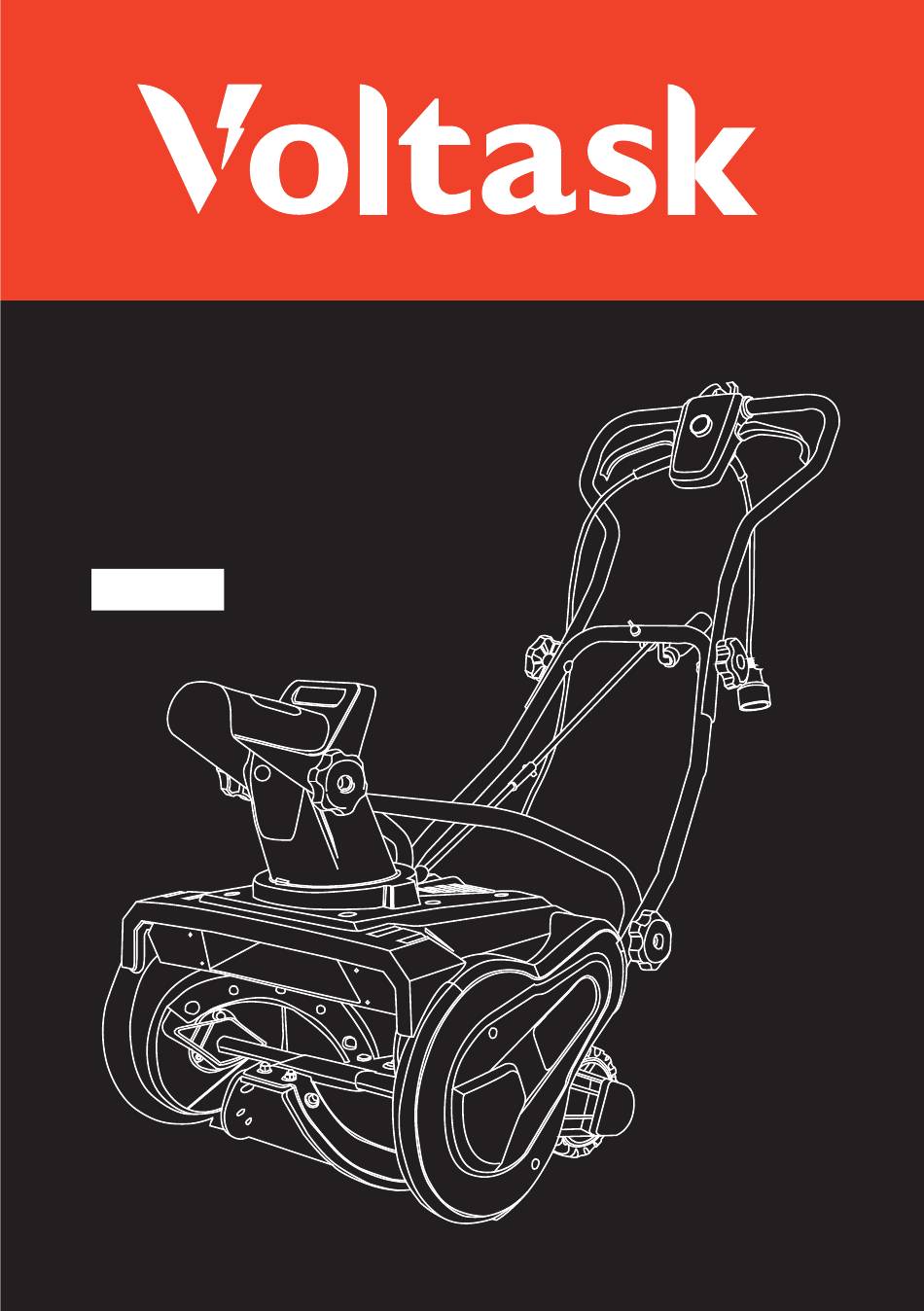

- Page 1 20-INCH/13-AMP Electric Snow Thrower SB-EA...
- Page 2 Thank you for purchasing our Voltask 20-Inch Electric Snow Thrower. This snow thrower has been engineered and manufactured to meet Voltask's high standards in product reliability, ease of use and safety. When properly used, it will give you years of powerful trouble-free performance.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION PACKAGE CONTENTS SYMBOLS GENERAL SAFETY INSTRUCTIONS KNOW YOUR ELECTRIC SNOW THROWER PRODUCT OVERVIEW TECHNICAL SPECIFICATIONS ASSEMBLY OPERATION MAINTENANCE AND STORAGE TROUBLESHOOTING WARRANTY... -
Page 4: Introduction
INTRODUCTION -This power tool may only be used with the accessory parts listed under accessories. -This product is not intended for commercial use, Generally acknowledged accident prevention regulations and endorsed safety instructions must be observed. -Only perform work described in these instructions for use. Any other use is improper. -The manufacturer will not assume responsibility for damage resulting from such use. -
Page 5: Symbols
SYMBOLS DANGER! Direct danger to life and risk of injury! Directly dangerous situation that may lead to death or severe injuries. WARNING! Probable danger to life and risk of injury! Generally dangerous situation that may lead to death or severe injuries. CAUTIONI Possible risk of injury! Dangerous situation that may lead to injuries. -
Page 6: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS IMPORTANT! All Operators Must Read These Instructions Before Use Read all instructions before using this electric snow thrower. Basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. General Safety WARNINGS! WARNING! Read all instructions. - Page 7 ● Never operate the snow thrower near glass enclosures, automobiles, window wells, offs, etc; without proper adjustment of the snow discharge angle. Keep children and pets away. ● Do not overload the machine capacity by attempting to clear snow at too fast a rate. ●...
- Page 8 8. In case of the following conditions, please turn off the machine and pull out the power plug: 9. When not used, being repaired, replaced of some parts, being cleaned and checked as well as any other conditions in which dangerous factors exist. If the cord is damaged in manner while plugged in, pull the extension cord from the wall receptacle.
- Page 9 Keep hands away from the moving parts of the snow thrower. The rotating parts will hurt you. Keep foot way from the moving parts of the snow thrower. The rotating parts will hurt you. To reduce the risk of electric shock, disconnect from supply mains and replace damaged cord immediately.
-
Page 10: Know Your Electric Snow Thrower
KNOW YOUR ELECTRIC SNOW THROWER Read the owner’s manual and safety rules carefully before operating your snow thrower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. PRODUCT OVERVIEW ①... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Rated Voltage 120V~ 60Hz Power No Load Speed 3000 rpm Clearing Width 20 in (50 cm) Clearing Depth 10 in (25 cm) Max Throwing Distance 30 ft (9 m) Directional Control 180º adjustable chute Net weight 30 lbs（13.6 kg） TECHNICAL SPECIFICATIONS... -
Page 12: Assembly
ASSEMBLY The snow Thrower is to be assembled before Operation. To assemble the snow thrower, follow the instructions below. Upper, Middle and Lower Frame Assembly 1. Loosen and remove the four sets of joint fixing T-bolts, washers, and joint fixing knobs to separate the upper frame from the lower frame. - Page 13 Fig. 4 Fig. 5 3. Connect the upper frame with the middle frame in the same way as described in step 2. Use the joint fixing T-bolts, washers and knobs to secure the connection on both sides. Fig. 6 Fig. 7 Fig.
- Page 14 4. Locate the cable clips in the parts bag. Secure the power cord to the frame of the unit by clipping them onto the frame at evenly spaced intervals. Fig. 9 Discharge Chute and Chute Crank Assembly 1. Lift the chute deflector so that it snaps and locks securely onto the discharge chute. Discharge chute Chute deflector Chute deflector knob...
- Page 15 3. Locate the low and upper chute crank in the parts bag. Loosen the screw and nut located on the upper chute crank with the screwdriver and wrench. NOTE: You may be able to unfasten the screw and nut by hand. Fig.
- Page 16 5. Slide the lower crank into the chute base hole. Slide into chute base hole Fig. 15 6. Remove the washer and nut from the eye bolt with a rubber grommet found on the upper chute crank. Position the chute crank so that the eye bole with rubber grommet inserts into the center hole of the middle frame.
-
Page 17: Operation
OPERATION NOTE: Before using the machine, please make sure the power source you will use is in accordance with the specifications shown in this manual. Before inserting the plug into the socket, make sure the machine’s roll shaft and the snow thrower’s rubber plates are all fixed firmly with screws, and the rubber plates are facing to the correct direction. - Page 18 Moving the Machine and Plowing the Snow WARNING! Foreign objects, such as rocks, broken glass, nails, wire, or string, can be picked up and thrown by the snow thrower, causing serious personal injury. Remove all foreign objects from the area to be plowed before operating the snow thrower.
- Page 19 2. The chute deflector on the top of the discharge chute controls the height of the snow stream. Loosen both chute deflector knobs to raise or lower the deflector to the desired height of snow you wish to throw. Tighten the knobs to secure the deflector.
-
Page 20: Maintenance And Storage
MAINTENANCE AND STORAGE WARNING! Make sure to turn off the switch and disconnect the extension cord before performing any maintenance task on your snow thrower. Lifetime Lubrication Lubrication is not necessary and may damage the unit. The snow thrower is lubricated for lifetime use at the factory before shipment. - Page 21 Replacing the Scraper The scraper is located at the base of the snow thrower beneath the rotor housing. Fig. 26 1. Detach the worn scraper from the snow 2. Install the new scraper and fasten it securely to thrower by removing the 3 screws that hold it the snow thrower with 3 screws.
- Page 22 Replacing the Belt NOTE: Determine the left and right hand sides of the snow thrower by standing behind the unit in the normal operating position. 1. Remove the screws from the left panel of the snow thrower. 2. Lift the belt tension and roll the large belt off the big pulley. Fig.
-
Page 23: Troubleshooting
TROUBLESHOOTING When Something lsn' Working DANGER! Risk of injury! Improperly performed repairs can lead to the device not functioning safely. This can endanger yourself and the environme Problem Possible Cause Possible Solution • Unit not plugged in. • Plug in the unit. •... -
Page 24: Warranty
3-year limited warranty on Voltask equipment. Voltask warrants to the original owner that each new product and service part is free from defects in materials and workmanship. Voltask agrees to repair or replace any defective product or part for the warranty period as stated above from the original date of purchase, except for the conditions and circumstances listed below: 1. - Page 25 Webside: www.voltask.com Email: support@voltask.com FB: @voltasktools IG: @voltasktools...
