Angelcare AC527 Manual

AC527: How to install the Movement Sensor
Pad
You're now ready to install your Angelcare Movement Sensor Pad. Here is the procedure to
install and set the sensitivity:
1. Remove the battery cover of the Sensor Pad with a coin and insert the battery face with +
face up
2. Replace the battery cover, align 2 dots and click to secure
3. Remove the mattress from the crib, place Sensor Pad - Angelcare® logo side up - on base
in the approximate centre of the mattress.
o If your crib does not have a solid, stationary, completely flat, firm surface
including a spring base, place a hardboard between the crib base and the Sensor
Pad, to ensure correct operation. The hardboard support must measure at least 30
x 30 cm (12" x 12") and 6 mm (1/4") thick. This hardboard support must be larger
than the Sensor Pad surface area. The hardboard maintains a constant pressure on
the Sensor Pad, enabling it to detect the baby's movements even when the baby is
at the edges of the crib

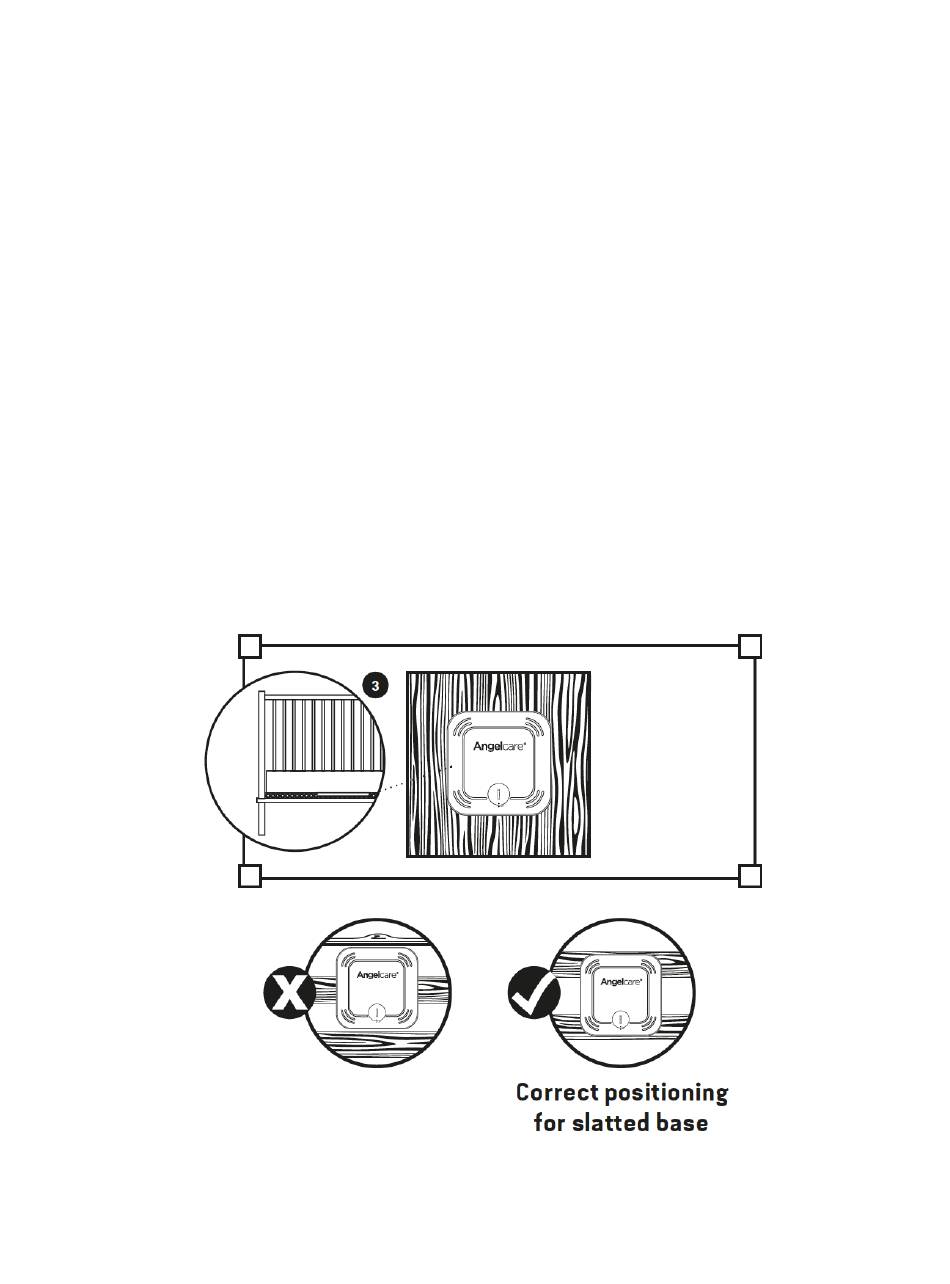

o If your crib has a slatted base, make sure the edges of your Sensor Pad are placed
a held over 2 slates.
4. Replace the mattress
