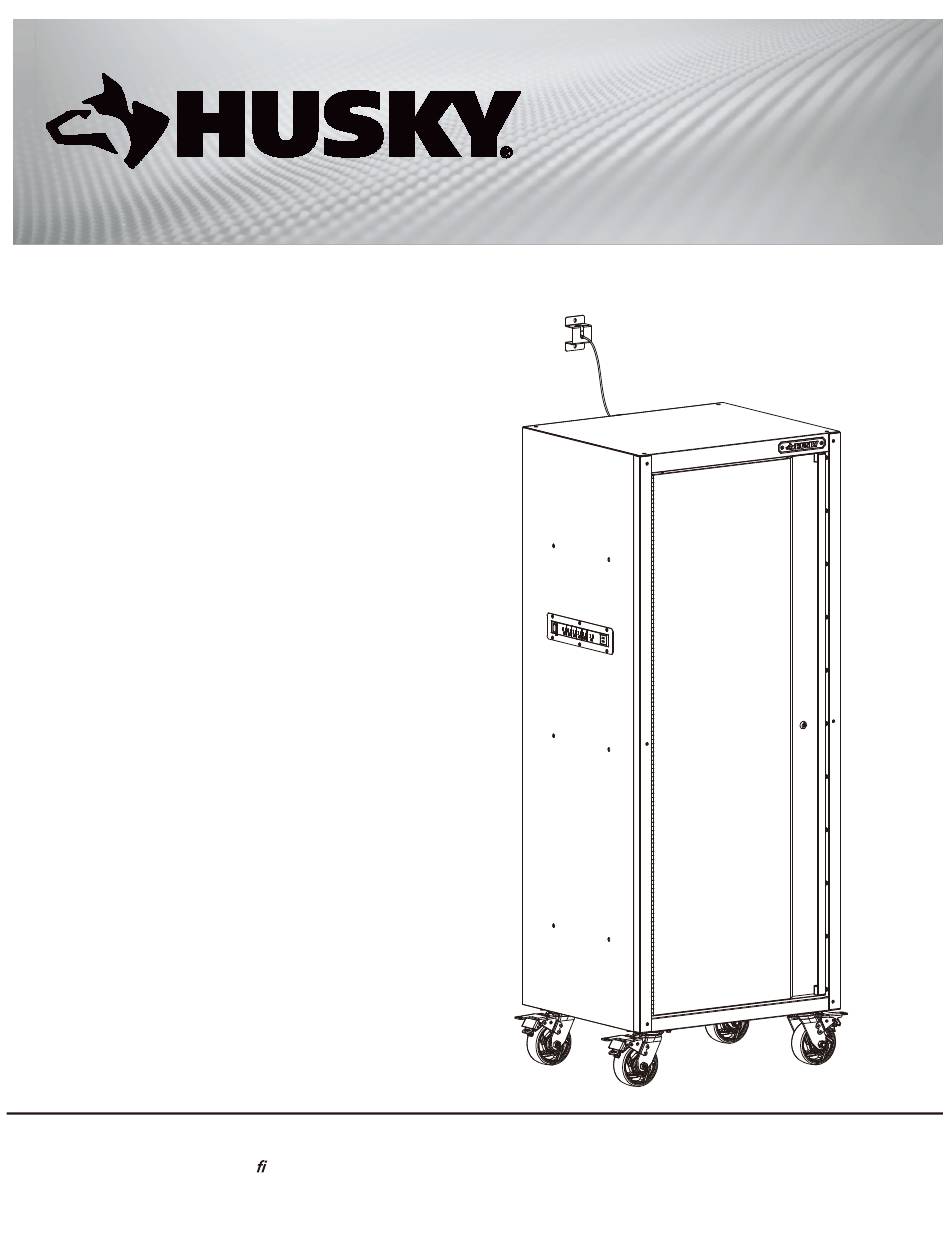

USE AND CARE GUIDE
Husky 27 in. Side Locker
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m – 7 p.m., EST, Monday-Friday
9 a.m – 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
We appreciate the trust and con dence you have placed in Husky through the purchase of this
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
THANK YOU
improvement needs. Thank you for choosing Husky!
Item # 1000000000
Model # H27LOCKER4
side locker.
We strive to continually
Advertisement
Table of Contents
Related Manuals for Husky H27LOCKER4
Summary of Contents for Husky H27LOCKER4
- Page 1 THANK YOU side locker. We appreciate the trust and con dence you have placed in Husky through the purchase of this We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..........2 Assembly ............... 6 Safety Information ..........2 Cordless Power Tool Battery Chargers ....11 Warranty ..............4 .... - Page 3 CAUTION: RISK OF ELECTRICAL SHOCK: This unit has one power supply cord. Make sure the cord is unplugged before any servicing or cleaning. HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance.
-
Page 4: Warranty
This warranty shall not apply to ar purpose, consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product. Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com. Specifications shelf 150 lbs. - Page 5 Package Contents (continued) NOTE: Locker keys are attached to door. Part Description Quantity Locker Swivel caster Power outlet Outlet panel cover Blank plate Adjustable Shelf HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance.
-
Page 6: Assembly
Assembly Two people are recommended for assembly. CAUTION: Locker door orientation To ip the door to the Locker (A), rst secure the door in the “open” position on a small block to help keep the door level. Remove the door by removing the 11 Phillips head bolts inside the hinge of the Locker (A). Then re-install the door with the 11 Phillips head bolts along the hinge located on the right side of the Locker (A). - Page 7 Attach the swivel casters (B) to the outer side of the Locker (A), by inserting insert bolts (AA) and washer (BB) through the swivel caster (B). Use the Hex Key (EE) to tighten the 16 bolts (AA) to the bottom frame. HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance.
- Page 8 Attach the storage hooks 1. Install the Storage Hooks (CC) on the back of the Side Locker with 4 pcs Hexagon socket button cap bolts (DD). Inserting the shelves Determine the desired height of your Shelves (F) and secure by inserting shelf edges into the tabs anges on the right and left panels.
- Page 9 Closet Rod Closet Rod Inserts (not included) Connecting to the wall Install the Locker safety bracket (FF) on the back of the Side Locker with 2 pcs Hexagon socket button cap bolts (DD). HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance.
- Page 10 Measure and mark 2 locations (two hole distance is 75mm ) for the holes on the wall into 2 wall studs and use the Wall Anchor (KK) for the third attachment. Use the ST6.3x70 Screws (LL) and Washers (MM) to attached Wall safety bracket (JJ) into the wall studs.
-
Page 11: Cordless Power Tool Battery Chargers
Do NOT place or attempt to charge lead acid, car type batteries in Side Locker. Maintenance Caster maintenance □ Grease the casters annually using high-quality bearing grease. □ Periodically clean the cabinet, shelves, and other surfaces with a mild detergent and water. □ HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance. -
Page 12: Replacement Parts
Replacement Parts For assistance with replacement parts please call 1-888-HD-HUSKY. Part Description Quantity Badge Lock Outlet Outlet Panel Cover Blank Plate Rubber Grommet Storage Hook Storage Hook Bolt Adjustable Shelf Door Handle Cap Swivel Caster Caster Washer Caster Bolt Locker Safety Bracket... - Page 13 Questions, problems, missing parts? Before returning to the store call Husky Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday 9 a.m. - 6 p.m., EST, Saturday 1-888-HD-HUSKY HUSKYTOOLS.COM Retain this manual for future use.
