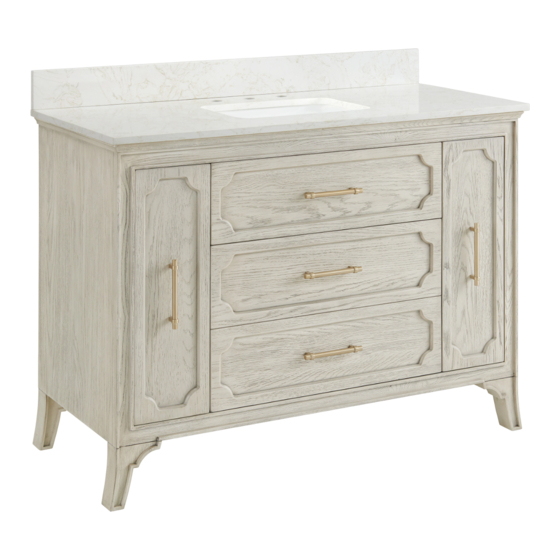

• sophisticated • inspiring ALLEN + ROTH and logo design are trademarks or registered ITEM #2694499 trademarks of LF, LLC. All rights reserved. 48-IN VANITY WITH TOP MODEL #1605VA-48-279-926 Español p. 11 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-439-9800, 8 a.m.
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions ....................4 Care and Maintenance........................9 Warranty............................9 Replacement Parts List........................10...
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Vanity Top (preassembled to vanity (A)) Backsplash Left Door (preassembled to Vanity (A)) Right Door (preassembled to Vanity (A)) Shelf HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen Qty. 1 SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product.
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 35 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit Helpful Tools (not included): Measuring tape, level...
Page 5
INSTALLATION INSTRUCTIONS 2. To remove drawers preassembled in vanity (A), fully extend drawers. Locate plastic levers on metal glide tracks at left and right sides of drawer box. To disengage drawer box from glides, push on plastic levers. Then, gently lift drawer up to remove it from vanity (A).
Page 6
INSTALLATION INSTRUCTIONS Note: A t this stage it may be easier to install the faucet and drain kit (not included) to top (B) per the manufacturer’s instructions, before moving on to Step 4. 4. Apply stain free silicone caulk (not included) to the top edge of vanity (A).
Page 7
INSTALLATION INSTRUCTIONS 6. To reinstall drawers into vanity (A), fully extend metal glide tracks. Gently lower and slide drawer box into rear glide catch. Next lower drawer box down to completely rest on extended glides. Then, push plastic levers to lock the drawer box in place.
Page 8
INSTALLATION INSTRUCTIONS 8. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •...
1605VA-48-279-SHELF Touch-up pen M-1108 Shelf Pin B1044 Pull (with screw) 1605VA-279-CB HANDLE Drawer glide set PUDTC-14X3-HANDLE Printed in Vietnam Hinge C-90-108-5 ALLEN + ROTH and logo design are trademarks or registered Leveler T-1007 trademarks of LF, LLC. All rights reserved.
Page 11
• sophisticated • inspiring ALLEN + ROTH y el diseño del logo son marcas comerciales ARTÍCULO #2694499 o marcas registradas de LF, LLC. Todos los derechos reservados. 121,92-CM TOCADOR CON CUBIERTA MODELO #1605VA-48-279-926 ADJUNTE SU RECIBO AQUÍ Número de serie__________________ Fecha de compra__________________ ¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro Departamento...
Page 12
ÍNDICE Contenido del paquete........................13 Aditamentos........................13 Información de seguridad......................13 Preparación..........................14 Instrucciones de ensamblaje o instalación...................14 Cuidado y mantenimiento......................19 Garantía............................19 Lista de piezas de repuesto......................20...
CONTENIDO DEL PAQUETE PIEZA DESCRIPCIÓN CANTIDAD Tocador Cubierta (preensamblado al tocador [A]) Protector contra salpicaduras Puerta izquierda (preensamblado al tocador [A]) Puerta derecha (preensamblado al tocador [A]) Estante ADITAMENTOS ( NO SE MUESTRAN EN TAMAÑO REAL Aplicador de retoque Cant. 1 INFORMACIÓN DE SEGURIDAD Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto.
PREPARACIÓN Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las piezas con la lista del contenido del paquete y la lista de aditamentos. No intente ensamblar el producto si falta alguna pieza o si estas están dañadas. Tiempo de instalación estimado: 35 minutos (24 horas para que seque la masilla de calafateo de silicona).
Page 15
INSTRUCCIONES DE INSTALACIÓN 2. Para retirar las gavetas preensambladas al tocador (A), extiéndalas completamente. Coloque las palancas de plástico en los rieles de deslizamiento metálicos a los costados izquierdo y derecho de la caja de la gaveta. Para desconectar la caja de la gaveta de los deslizadores, presione las palancas de plástico.
Page 16
INSTRUCCIONES DE INSTALACIÓN Nota: en esta etapa puede resultar más sencillo instalar el grifo y kit de drenaje (no se incluye) en la cubierta (B) según las instrucciones del fabricante, antes de continuar con el paso 4. 4. Coloque masilla de calafateo de silicona que no mancha (no se incluye) en el borde superior del tocador (A).
Page 17
INSTRUCCIONES DE INSTALACIÓN 6. Para reinstalar las gavetas en el tocador (A), extienda los rieles de deslizamiento metálicos por completo. Baje con cuidado la gaveta y deslícela hasta el cerrojo posterior de los rieles deslizantes. A continuación, baje la caja de la gaveta para que se asiente por completo sobre los rieles deslizantes extendidos.
Page 18
INSTRUCCIONES DE INSTALACIÓN 8. Si necesita ajustar las puertas, hágalo de la siguiente manera. Para ajustar las puertas hacia arriba o abajo, afloje los tornillos (a) en ambas bisagras, ajuste la puerta y vuelva a apretar los tornillos. Para ajustar las puertas hacia la derecha o la izquierda, gire los tornillos en ambas bisagras (b) hacia adentro y afuera.
CUIDADO Y MANTENIMIENTO • Limpie el tocador regularmente con un paño suave que no deje pelusas o con un producto de limpieza doméstico. • Puede limpiar el tocador con un limpiador doméstico suave no abrasivo. • Asegúrese de secar la madera inmediatamente con un paño o una toalla suave. •...
B1044 Tirador (con tornillo) 1605VA-279-CB HANDLE Juego de deslizadores de gaveta PUDTC-14X3-HANDLE Impreso en Vietnam Bisagra C-90-108-5 ALLEN + ROTH y el diseño del logo son marcas comerciales o marcas registradas de Nivelador T-1007 LF, LLC. Todos los derechos reservados.
