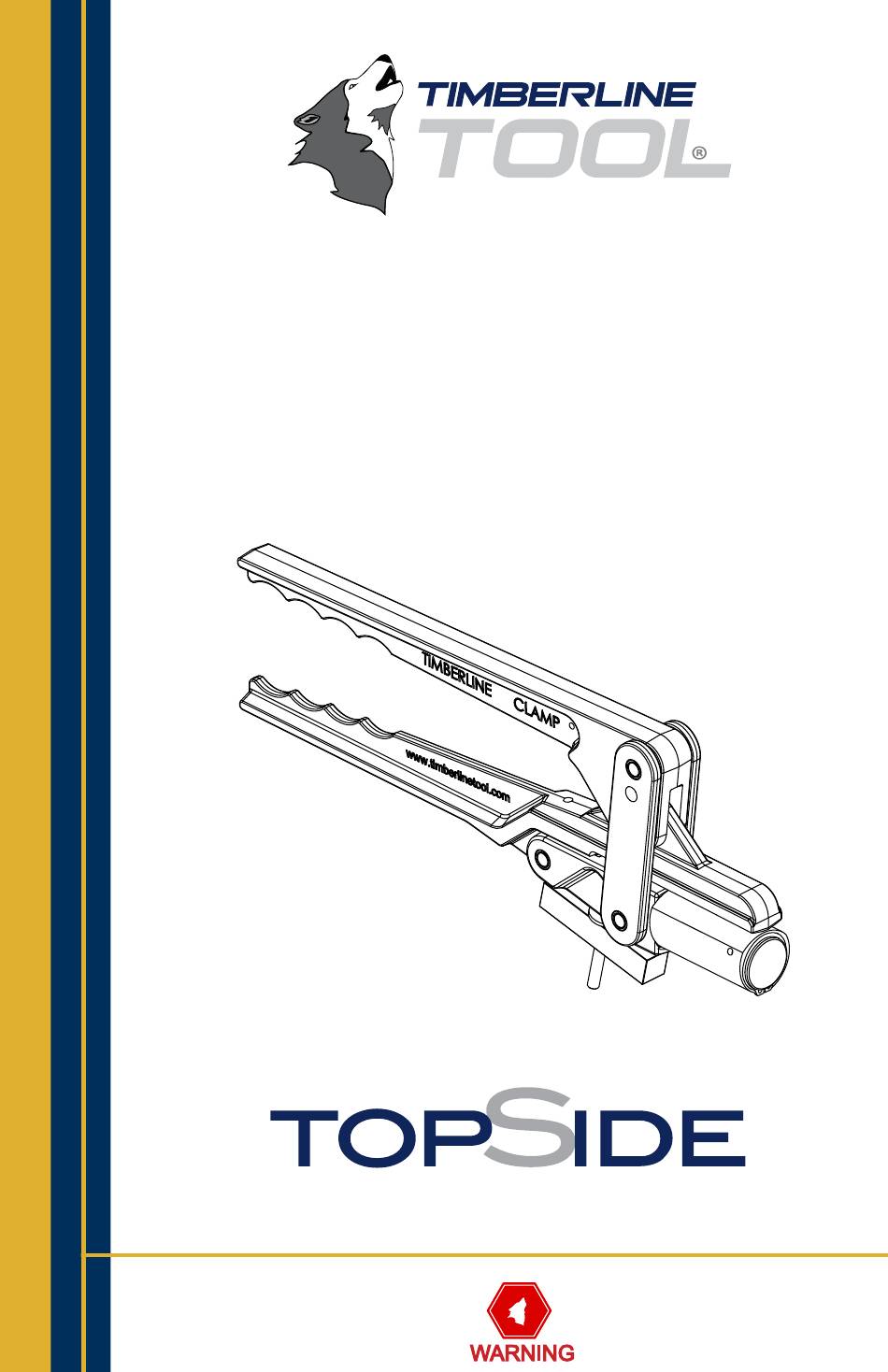

- Page 1 Instruction Manual Model TC1-SR TopSide Clamp top • side • clamp For your personal safety SAVE these instructions READ and UNDERSTAND for future reference. instructions before using tools.
-
Page 2: Specifications
A5 – Rotating Jaw Sleeve A6 – Safety Locking Bar A7 – Safety Locking Thread Rod Familiarize yourself with all parts, names, and numbers. Refer to this diagram for the assembly and operation procedures that follow. © 2008 Timberline Tool All Rights Reserved. -
Page 3: General Safety Rules
TIMBERLINE TC1-SR INTRODUCTION Timberline squeeze-off tools are designed to temporarily stop the pressurized fl ow of liquid or gas in polyethylene (PE) pipe. Squeeze-off is a technique used to control the fl ow of gas or liquid in polyethylene pipe by compressing the pipe between parallel bars until the inside surfaces make contact. -
Page 4: Safety Instructions
In addition to the potential for pipe damage due to static discharge, the build up of a static charge represents an ignition source. Timberline Tool recommends that you follow all of your company grounding techniques and that all personnel involved in squeeze-off operations receive training on those grounding procedures so that they understand the hazards involved. - Page 5 TIMBERLINE TC1-SR Specifi c Tool Safety If you have used other Timberline products please be aware that the operation of this tool may differ from others and that you may need to follow different rules. Always consult the manual to insure you are following the correct safety instructions to avoid personal injury.
-
Page 6: Operating Procedure
Make sure the pipe is clear of any debris, rock, dirt, etc. Open the tool and place over the pipe until the Tool Links are tight against the pipe. (Fig 4) Fig 4 © 2008 Timberline Tool All Rights Reserved. - Page 7 TIMBERLINE TC1-SR Make sure the tool is perpendicular to the pipe during squeeze-off. Close the handles until the tool goes over center to the self-locking position and the fl ow is con- Fig 5 trolled. (Fig 5) Squeeze-off is complete when the tool hits its’...
- Page 8 Mark the location to avoid a future squeeze at the same location. TC1SR Extension handles are available to ease squeeze-off off large diameter and/or thick-walled pipe. They are sold separately in 12”, 24’, and 36” lengths. © 2008 Timberline Tool All Rights Reserved.
- Page 9 TC1SR ACCESSORIES Any accessories or attachments recommended for use with your Timberline Tool are specifi ed in this manual. The use of any other accessories or attachments might present the risk of injury. Only use accessories or attachments for their stated purpose.
- Page 10 800.735.6845 to obtain return authorization for repair. If inspection shows the trouble is caused by defective workmanship or material, Timberline Tool will repair or, at our option, replace the product without charge.
- Page 11 TIMBERLINE TC1-SR This page intentionally left blank...
- Page 12 (406)755-4258 (406)257-2711 www.timberlinetool.com 90 Conestoga Ct. Kalispell, MT 59901 USA...
