For your personal safety
READ and UNDERSTAND
instructions before using tools.
Instruction

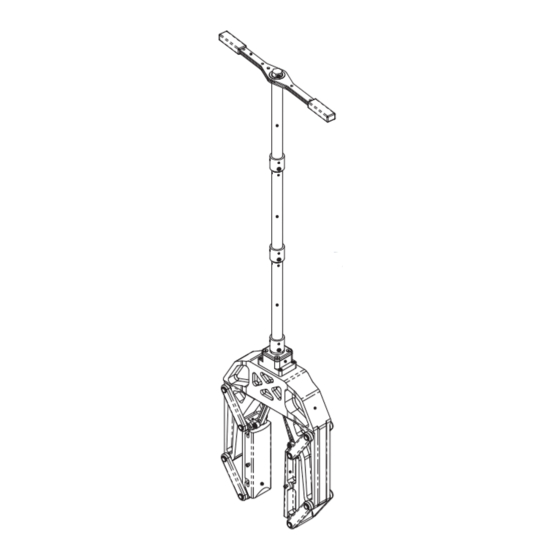

Model TR650
TopReach Clamp
Manual
SAVE these instructions
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Timberline Tool TR650

Summary of Contents for Timberline Tool TR650

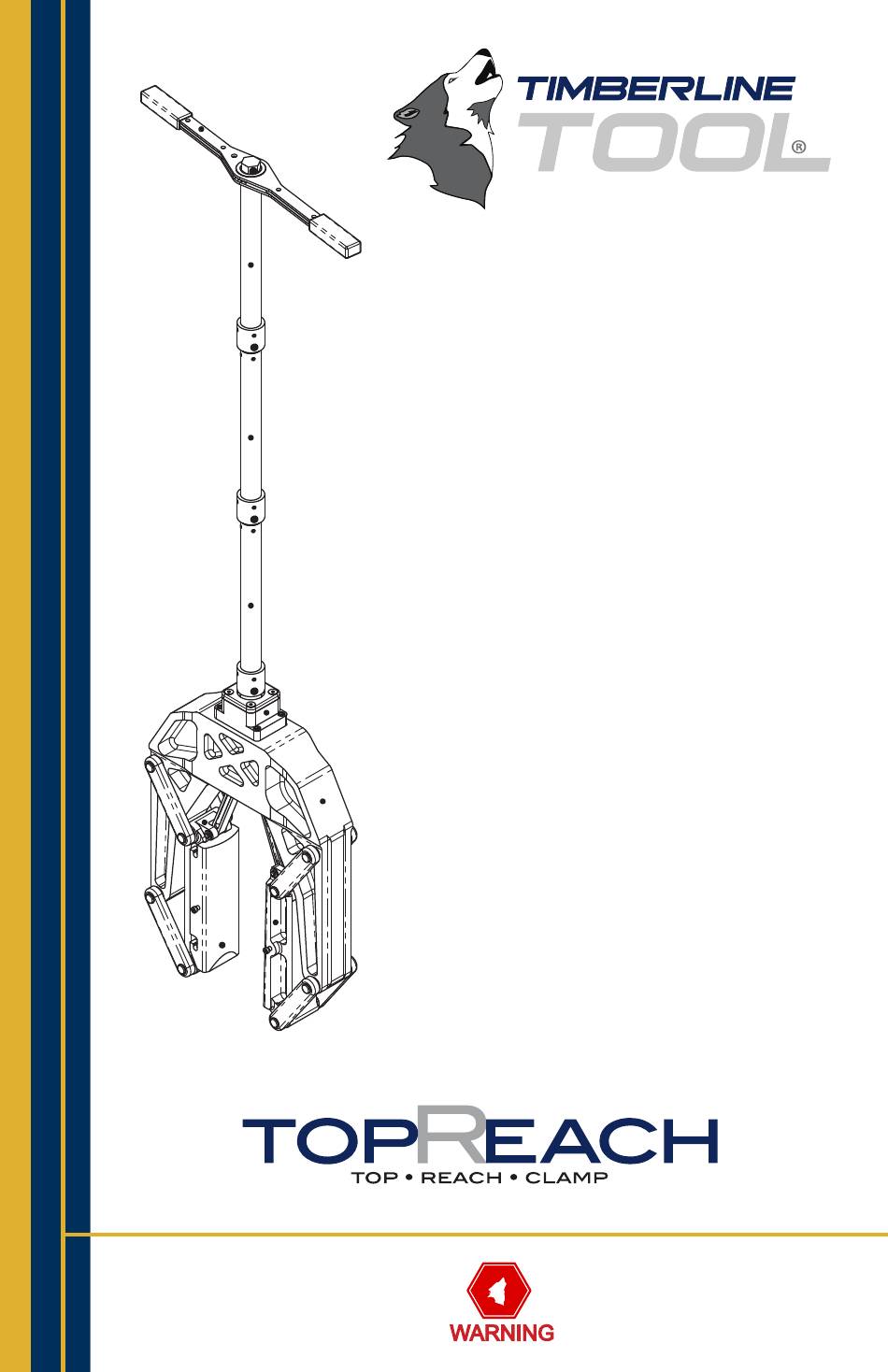

  • Page 1 Instruction Manual Model TR650 TopReach Clamp For your personal safety SAVE these instructions READ and UNDERSTAND for future reference. instructions before using tools.

  • Page 2: Specifications

    Seconds ASTM Specifi cations 3-Inch 11.0 4-Inch 6-Inch * Manufacturer reserves the right to change specifi cations without notice ** Additional handle extensions may be added to increase the reach of the tool. © 2008 Timberline Tool All Rights Reserved.

  • Page 3: General Safety Rules

    TIMBERLINE TR650 INTRODUCTION Timberline squeeze-off tools are designed to temporarily stop the pressurized fl ow of liquid or gas in polyethylene (PE) pipe. Squeeze-off is a technique used to control the fl ow of gas or liquid in polyethylene pipe by compressing the pipe between parallel bars until the inside surfaces make contact.

  • Page 4: Safety Instructions

    In addition to the potential for pipe damage due to static discharge, the build up of a static charge represents an ignition source. Timberline Tool recommends that you follow all of your company grounding techniques and that all personnel involved in squeeze-off operations receive training on those grounding procedures so that they understand the hazards involved.
  • Page 5 Accessories specifi c for one tool may be hazardous if used on a dif- ferent tool. Failure to use the TR650 in the manner specifi ed in this manual may result in injury and/or permanent damage to the tool.
  • Page 6 B9 – Slap-On Jaw (2 cables attached) B10 – Ground Rod Strap Holder Familiarize yourself with all parts, names, and numbers. Refer to this diagram for the assembly and operation procedures that follow. © 2008 Timberline Tool All Rights Reserved.

  • Page 7: Assembly Procedure

    TIMBERLINE TR650 ASSEMBLY PROCEDURE Ground Rod Strap Holder Remove parts A1-A4, B6, and B9 from the case. Grounding Bearing House Handle Yoke Extension Slap-On Jaw Post Fixed Jaw Bottom Extensions Slap-On Jaw Quick Release Pins on Lanyards Attach the Top Hex Head Extension with the Quick Release Pin.

  • Page 8: Operating Procedure

    Fig 10 Ground the tool with the grounding rod. Open the TR650 just enough to fi t over the pipe. The cables will not be tight. (Fig 10) If the cables are tightened and the...
  • Page 9 TIMBERLINE TR650 Lower the TR650 onto the pipe until both cables are resting on the pipe. Keep the tool perpendicu- lar to the pipe during squeeze off. (Fig 13) Fig 13 Fig 13 Turn the Ratchet Handle clockwise until the pipe is squeezed-off.
  • Page 10 ACCESSORIES Any accessories or attachments recommended for use with your Timberline Tool are specifi ed in this manual. The use of any other accessories or attachments might present a risk of injury. Only use accessories or attachments for the stated purpose.

  • Page 11: Warranty Policy

    800.735.6845 to obtain return authorization for repair. If inspection shows the trouble is caused by defective workmanship or material, Timberline Tool will repair or, at our option, replace the product without charge.
  • Page 12 (406)755-4258 (406)257-2711 www.timberlinetool.com 90 Conestoga Ct. Kalispell, MT 59901 USA...
