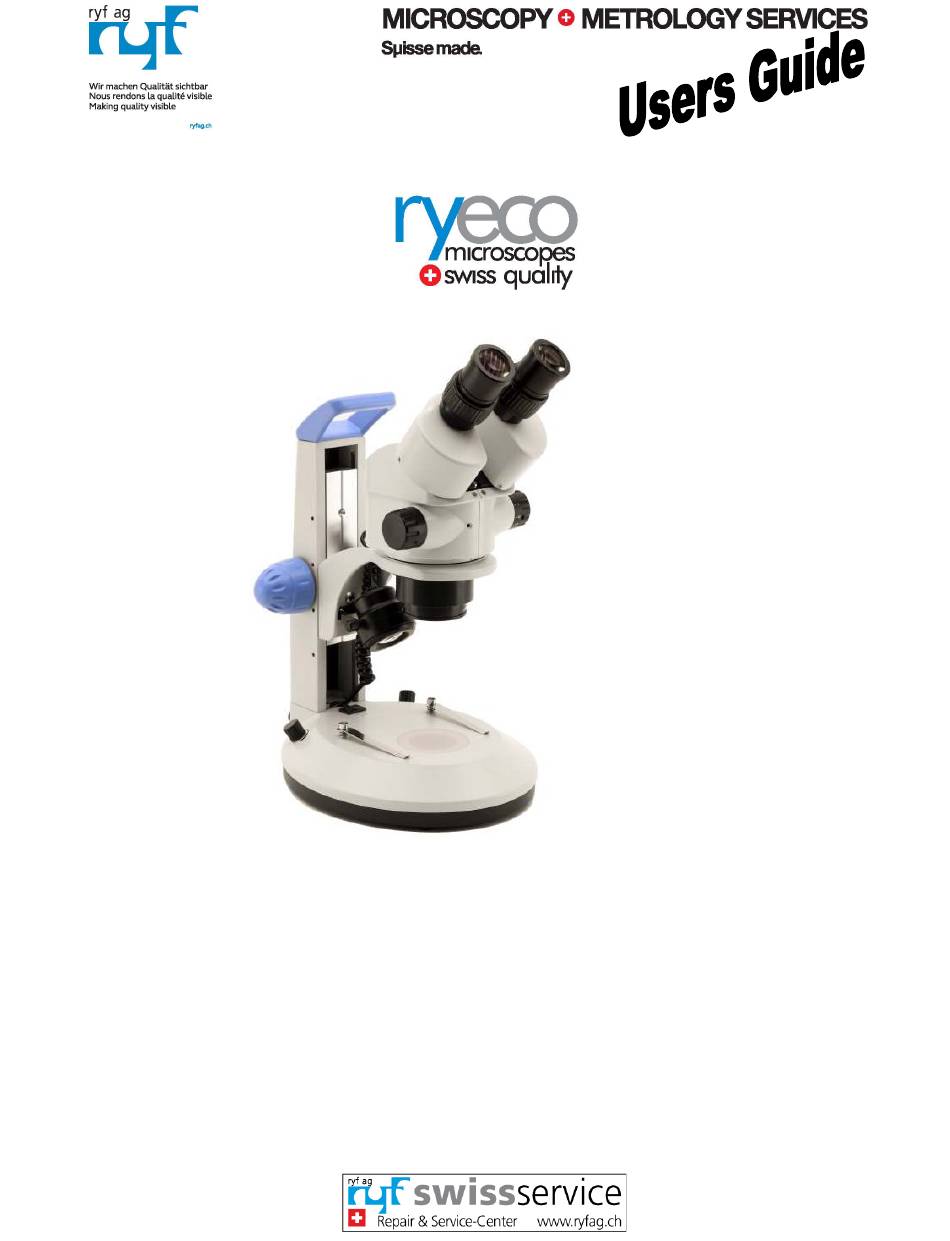

- Page 1 Ryeco LAB-10 // LAB-20 Stereo-microscope ecoline Instruction Manual Ryeco LAB-10 / LAB-20...
- Page 2 Ryeco LAB-10 // LAB-20 Stereo-microscope ecoline INTRODUCTION Ryeco Stereomicroscopes series STEREO, LAB10 and LAB20 are high level shool stereomicroscopes with objectives 2x-4x (LAB10) or zoom 1x4x (LAB20). The magnification is from 5x to 12Ox by using additional lens (optional).These stereomicroscopes are the good choose for the professional user.
- Page 3 Ryeco LAB-10 // LAB-20 Stereo-microscope ecoline Alignment and operation Interpupillary distance Move the two eyepiece tubes until only one circular field can be seen through the two eyepieces. lf two circles appear the interpupillary distance is too big, and if 2 overlapped circles appear the interpupillary distance is too small.
- Page 4 Ryeco LAB-10 // LAB-20 Stereo-microscope ecoline Cleaning and care of the microscope Changing the bulb Before changing the bulb, make sure that the power switch is off and the CH Power cord has been disconnected from the main supply. For Incident light, unscrew the lamp collector piece out, remove the old light bulb from the socket, and carefully plug the new bulb in, screw the collector piece back after changing the bulb.
