INSTALLATION MANUAL
AD-I-MAADIN-6 MedRx Avant Audiometer Installation Manual
1
Effective Date: 09/07/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVANT and is the answer not in the manual?

Questions and answers

Summary of Contents for MedRx AVANT

  • Page 1 INSTALLATION MANUAL AD-I-MAADIN-6 MedRx Avant Audiometer Installation Manual Effective Date: 09/07/07...
  • Page 2 This Page Intentionally Left Blank AD-I-MAADIN-6 MedRx Avant Audiometer Installation Manual Effective Date: 09/07/07...
  • Page 3: Table Of Contents

    Contents Getting to Know your AVANT™ Audiometer ..........Transducers and Accessories ………………………………………………………………………………. Software Installation ….……………….…............Driver Installation …................. Loading the Calibration ………………………………………………………………………………………… Limited Warranty ……................#0086 www.medrx-usa.com 1200 Starkey Rd., #105, Largo FL 33771 Toll Free: (888) 392-1234 • (727) 584-9600 Fax: (727) 584-9602 •...
  • Page 4: Getting To Know Your Avant Audiometer

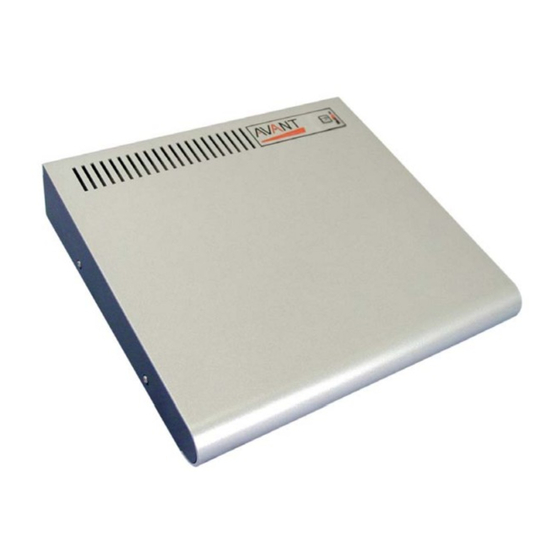

    Getting to Know your AVANT Audiometer The AVANT Audiometer represents a new era of ultra compact diagnostic audiometry for your office. Compact yet rugged, this PC-Based system is USB powered and performs all required ANSI and IEC audiometric tests. The following section of this manual will familiarize you with the physical features and accessories of the system.
  • Page 5: Transducers And Accessories

    TDH-39 Earphones HDA200 NOTE: The Avant Audiometer supports ER 3A Insert earphones, TDH earphones and HDA200 extended high frequency earphones. The standard configuration includes either ER3A or TDH earphones. HDA200 earphones must be ordered with the High Frequency Option upgrade...
  • Page 6: Software Installation

    Software Installation Do Not Plug in the AVANT Audiometer USB Cable yet! 1. Insert the AVANT Audiometer CD-ROM into the CD drive. Wait until the Setup program starts. • If the Setup program does not automatically start, click: • Start •...
  • Page 7 To change the location of the files (advanced users or system administrators only) click Browse. 6. This screen summarizes the installation configuration. • To continue, click Next. To make changes, click Back. • AD-I-MAADIN-6 MedRx Avant Audiometer Installation Manual Effective Date: 09/07/07...
  • Page 8: Driver Installation

    7. When the installation is complete, click Finish. Driver Installation Connect the USB cable from the AVANT Audiometer to your computer as shown below. Wait for the system to copy and install default drivers. During this process, you will see the following prompts in your system tray (lower right corner of the screen).
  • Page 9 1. After the Window drivers have been installed, click Install Drivers. When this screen appears, click OK. When the driver signature check screen appears, click Continue Anyway. AD-I-MAADIN-6 MedRx Avant Audiometer Installation Manual Effective Date: 09/07/07...
  • Page 10 Select “Install the software • automatically (recommended)”. • Click Next. When the driver installation is complete, this screen will appear. • Click Finish. Exit the Setup screen when the driver installation is finished. AD-I-MAADIN-6 MedRx Avant Audiometer Installation Manual Effective Date: 09/07/07...
  • Page 11: Loading The Calibration

    These files are supplied on a CD bearing the same serial number as your device. The final step before using your Avant to evaluate hearing is to load these device-specific calibration files onto the computer used to control the device.
  • Page 12: Limited Warranty

    Congratulations Your Avant Audiometer system is now set up and ready to use to perform comprehensive hearing evaluations. Please consult the Avant Audiometer Training Manual and the Interactive Help within the software for instructions and procedures. The Training Manual is included in the Avant Audiometer packaging in both paper and PDF format.
