Summary of Contents for MedRx Avant Series

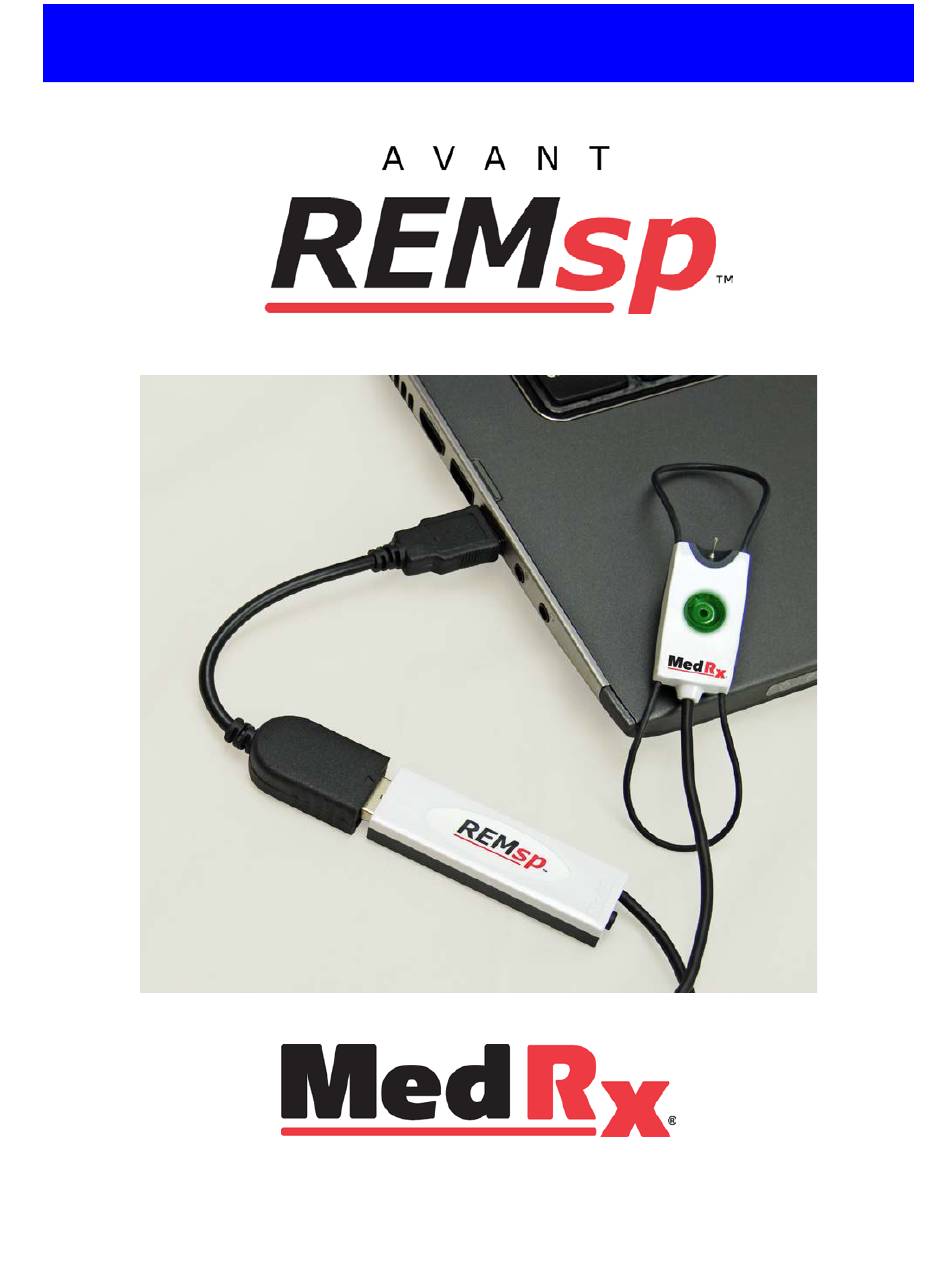

- Page 1 INSTALLATION MANUAL www.medrx-usa.com...
-
Page 2: Table Of Contents
#0086 www.medrx-usa.com 1200 Starkey Rd., #105, Largo FL 33771 U.S.A. Toll Free: (888) 392-1234 • (727) 584-9600 Fax: (727) 584-9602 • Email: medrx@medrx-usa.com MedRx's Authorized Representative in Europe (Regulatory affairs only) Emergo Europe, Molenstraat 15 2513 BH The Hague, The Netherlands... -
Page 3: Getting To Know Your Avant Remsp

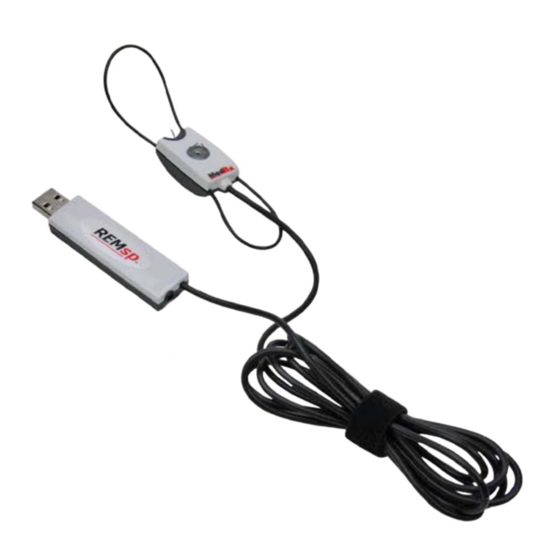

Getting to Know Your AVANT REMsp Intended Use Statement: The Avant series of REM (Real Ear Measurement) devices measure sound levels directly in patient’s ears. They are used in the measurement and fitting of hearing aids for adults and children. These measurements can be done with or without the hearing instrument being worn. -
Page 4: Connecting The Speaker
The Bluetooth option is not used. The speaker’s power cable is a USB “male A to micro-B type”, connected to the power adapter. Powering the speaker via a computer USB port is not recommended. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016... -
Page 5: Software Installation
• Press OK to start the Setup. 3. Wait for the program to setup the InstallShield Wizard. 4. This is the Welcome screen. • To continue, click Next. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016... - Page 6 This screen indicates the location of the program files. • Click Next. Note: You can install the Software to a different location, but it is not recommended. 7. Choose desired language and locale. • Click Next. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016...
- Page 7 8. Ready to Install Program. • Click Install. 9. Wait while the InstallShield Wizard installs the Avant program. 10. When the installation is complete, click Finish. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016...
-
Page 8: Driver Installation
3. When this screen appears or a message in the bottom right corner appears “New Hardware is ready to use”, click Close. 4. On the Avant REM Main screen, click Advanced Options. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016... - Page 9 7. If this window appears and all devices are “Ready to use”, click Close. • Drivers installed successfully. 8. If this warning screen appears, click Install this driver software anyway. Driver Installation Successful. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016...
- Page 10 5. Click Audio Properties. 6. In Windows Sound control panel, make sure the MedRx Audio Device is not set as default. If it is default, change this by clicking on your system (non-MedRx) audio device and then choose Set Default.
-
Page 11: Emc Precautions
Floors should be wood, (ESD) concrete or ceramic tile. If +/- 8 kV air +/- 8 kV air floors are covered with synthetic material, the relative humidity should be IEC 61000-4-2 at least 30%. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016... - Page 12 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Avant REMsp Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016...
- Page 13 At 80 MHz and 800 MHz the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016...
-
Page 14: Safety
• All repairs should be sent to MedRx for evaluation and / or repair. However, necessary diagrams and repair instruction will upon request be provided to authorized repair personnel. -
Page 15: Cleaning
6. Let all components that have been cleaned, thoroughly dry before use. 7. Cleaning of the computer should be performed using the methods suggested in the computer’s manual. ASP-I-MASPI-9 MedRx AVANT REMsp Installation Manual Effective Date: 10-21-2016... -
Page 16: Limited Warranty
MedRx, Inc is not responsible for problems resulting from installation of unapproved software or hardware. In the event of unapproved software or hardware installed on the system causing a conflict, MedRx will service the product for a fee to be determined at the time of service.
