This manual contains important safety information
concerning the maintenance, use and operation
of this product. Failure to follow the instructions
contained in this manual may result in serious
injury. If you are unable to understand the
contents of this manual, please bring it to the
attention of your supervisor. Do not operate this
equipment unless you have read and understood
the contents of this manual.

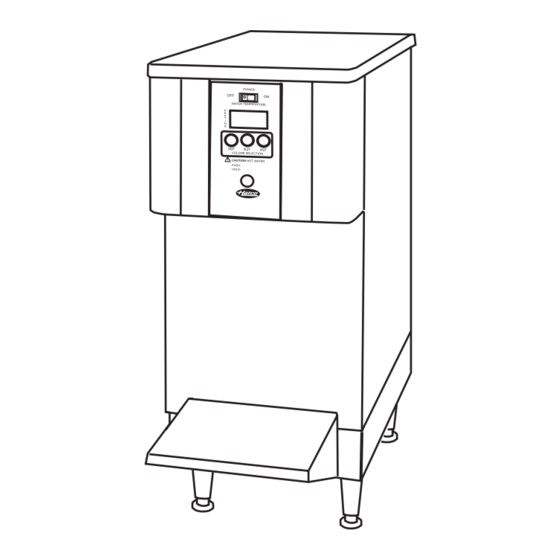

ATMOSPHERIC
Hot Water Dispenser
AWD-12 Series
Installation &
Operating Manual
I&W #07.05.126.00
Este manual contiene importante información
sobre seguridad concerniente al mantenimiento,
uso y operación de este producto. Cualquier
falla en el seguimiento de las instrucciones
contenidas en este manual puede resultar
en un serio daño. Si usted no puede entender
el contenido de este manual por favor pregunte
a su supervisor. No opere este equipo al menos
que haya leído y comprendido el contenido
de este manual.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatco ATMOSPHERIC AWD-12 Series
Summary of Contents for Hatco ATMOSPHERIC AWD-12 Series
- Page 1 Do not operate this equipment unless you have read and understood the contents of this manual. AWD-12 Series Installation & I&W #07.05.126.00 Este manual contiene importante información sobre seguridad concerniente al mantenimiento, uso y operación de este producto.
-
Page 2: Table Of Contents
Serial No. ________________________________ Voltage __________________________________ Date of Purchase __________________________ INTRODUCTION Hatco Atmospheric Hot Water Dispensers are designed to deliver pre-measured quantities of hot water for food preparation or cleaning. A 12 gallon (45 liter) stainless steel tank provides up to 8 gallons (30 liters) of continuous, temperature controlled water ranging from 75°–195°F (24°–91°C). -
Page 3: Important Safety Instructions
Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure... -
Page 4: Model Descriptions
MODEL DESCRIPTIONS ALL MODELS Hatco Atmospheric Hot Water Dispensers are equipped with an electronic temperature controller, an On/Off switch, a digital temperature display, preset dispensing push-buttons, including a manual dispense function. Electric heating elements are metal sheathed and controlled by a submersed thermistor. The units are protected with a high-temperature limit switch and low-water cut-off. -
Page 5: Electrical Rating Chart
Kilowatts Model Voltage (kW) AWD-12 NEMA L6-30P is optional † Unit weight, filled to 12 gallon (45 liters) capacity is 180 lbs. (82 kg). DIMENSIONS Width Depth Model AWD-12 13-3/8" 23-1/2" (340 mm) (597 mm) (699 mm) (714 mm) WATER TEMPERATURE RECOVERY TABLE Model 60°F... -
Page 6: Installation
1. Connect a flexible water supply line to the inlet on the unit using 1/4" NPT adapter with flare connection (or by using optional 1/4" inlet tubing supplied by Hatco). See Figure 4. NOTE: Water inlet and drain connections must be made with flexible hose. -
Page 7: Operation
START-UP NOTE: Make sure manual drain lever is in the horizontal (closed) position. See Figure 9. 1. Place power switch in the ON position The electronic display will light up to indicate power is supplied to the unit. See Figure 5. 2. -
Page 8: Error Codes
OPERATION ERROR CODES There are four error codes that may show in the display: E1: Indicates that the display temperature is out of range or display temperature probe is malfunctioning. E2: Indicates that the control temperature is out of range or control temperature probe is malfunctioning. - Page 9 Changing Dispense Time (Water quantity) 1. Turn the power switch to the OFF position and unplug the unit from the electrical outlet. 2. Remove top red panel. 3. Move dipswitch 1 to the left, (when facing the controls) to enter Programming mode. 4.
-
Page 10: Maintenance
MAINTENANCE GENERAL WARNING To avoid any injury, turn the power switch off at the fuse disconnect switch/circuit breaker or unplug the unit from the power source and allow to cool completely before performing any maintenance or cleaning. CLEANING DISPENSER EXTERIOR To preserve the finish of the Atmospheric Hot Water Dispenser, it is recommended that the exterior surfaces be wiped daily with... -
Page 11: Resetting The High Temperature Safety Switch
200°F (93°C) the safety high limit switch will shut the unit off. Setting the setpoint temperature over 195°F (91°C) may cause nuisance tripping of this safety switch. Hatco does not recommend adjusting the setpoint temperature above 195°F (91°C). To reset the safety high limit switch follow these steps: 1. -
Page 12: Hatco Limited Warranty
Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. - Page 13 NOTES Form No. AWDM-0704...
- Page 14 NOTES Form No. AWDM-0704...
- Page 15 NOTES Form No. AWDM-0704...
-
Page 16: Authorized Parts Distributors
Acme American Repairs, Inc. Indianapolis 317-545-9655 Brooklyn P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. Parts & Service Fax (800) 690-2966 Printed in U.S.A. July 2004 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK (continued) Alpro Service Co. 319-323-1823 Brooklyn Appliance Installation 515-262-8308 Buffalo Northern Parts Dist.
