Page 1: Table Of Contents

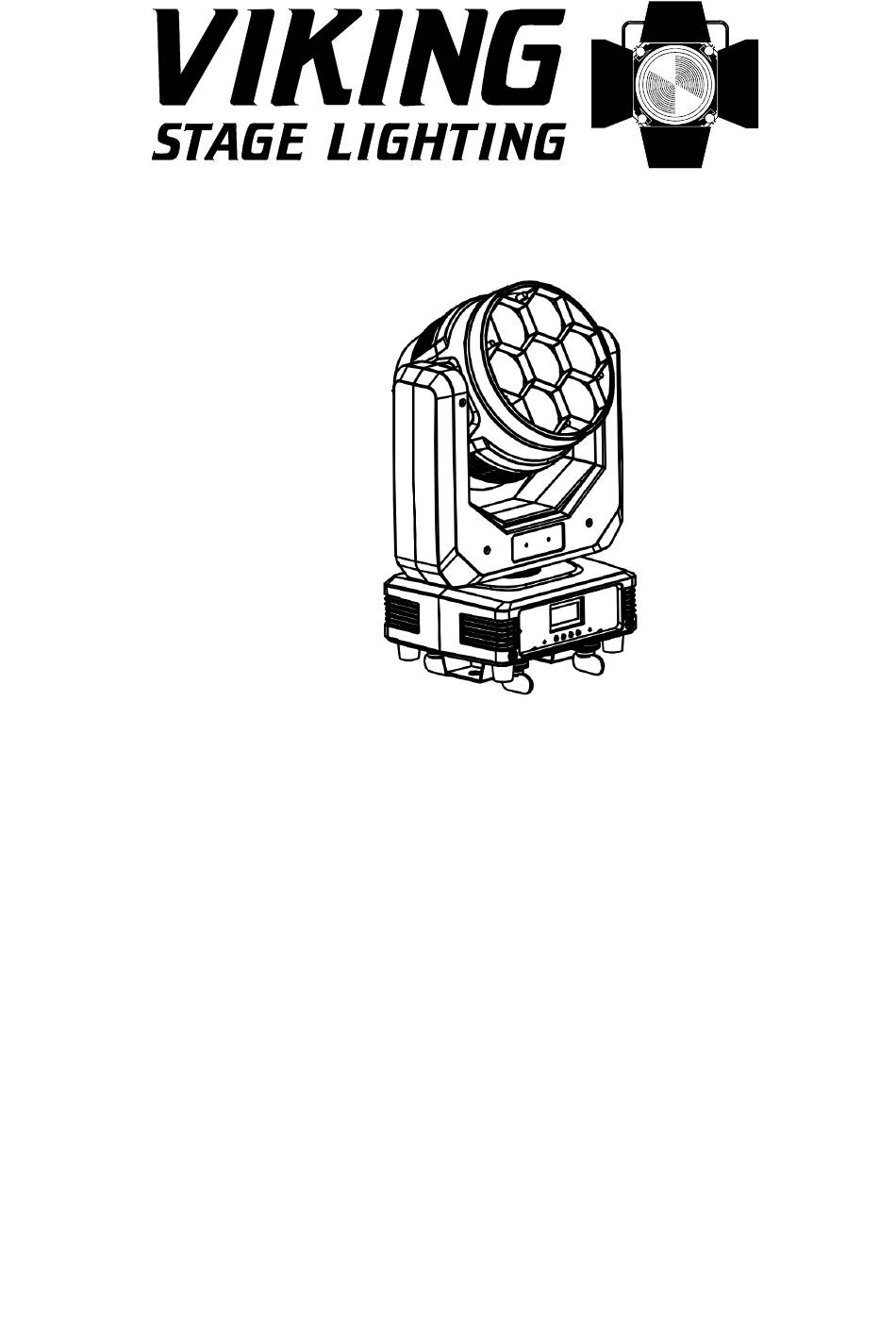

VK740 MK2 User Manual TABLE OF CONTENTS 1. Safety Instructions ........2-4 2. Technical Specifications ......... 3-5 3. How To Control The Unit ........ 5-8 4. DMX Channels ........8-10 5. shape ..........10 6. Fixture Cleaning ......... 10... -
Page 2: Safety Instructions
1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ִ Unpack and check carefully there is no transportation damage before using the unit. ִ... -
Page 3: Technical Specifications
Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. -
Page 4: How To Control The Unit
3. LUX Data: 4. How To Control The Unit: DMX512 is widely used in intelligent lighting control, with a DMX 512 controller you can connect several lights together via dmx in and dmx out sockets to from a ring. 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) Display:... - Page 5 MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address: 1) Press “Menu” to set DMX Address, and press “ENTER” 2) LCD Display will show show“SET DMX Address:001”...
-
Page 6: Dmx Channels
1.Pan Invert 1.NO,2.YES Invert 2.Tilt Invert 1.NO,2.YES Sound 0-100 Sound sensitivity Degree 1.540, 2.360 No signal 1.black out 2.hold Fan set 1.auto, 2.high, 3.low 1.NO Reset Reset 2.YES 3.Yes Factory setting Default 4.No 1.Soft V1.0 Show the version number Inform 2.Temp / ℃... - Page 7 mode 2 50----99 mode 3 100----149 mode 4 150----255 Ch 9 Zoom From near to far 0----255 Ch 10 from dark to bright 0----255 Ch 11 from dark to bright 0----255 Ch 12 from dark to bright 0----255 Ch 13 from dark to bright 0----255 No function...
- Page 8 22 Channel Mode: 22 Channel Mode includes 16bit fine adjustments plus 4 different dimming modes of the Dimmer. Channel Function Description Value Ch 1 pan adjustment pan adjustment 0----255 Pan fine Ch 2 Pan fine adjustment 0----255 adjustment Ch 3 Tilt adjustment Tilt adjustment 0----255...
- Page 9 Channel Function Description Value No function 0----15 R100%，G up,B0% 16----35 R down,G100%,B0% 36----55 R0%,G100%,B up 56----75 R0%,G down,B100% 76----95 R up,G0%,B100% 96----115 R100%,G up,B down 116---135 R 100%down,G Up,B Up 136---155 R down,G down,B100% 156---175 R100%,G100%,B100%, 176---195 W100% Ch 19 Static color 2800K 196---200...
-
Page 10: Shape
6.Shape 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on 8.
