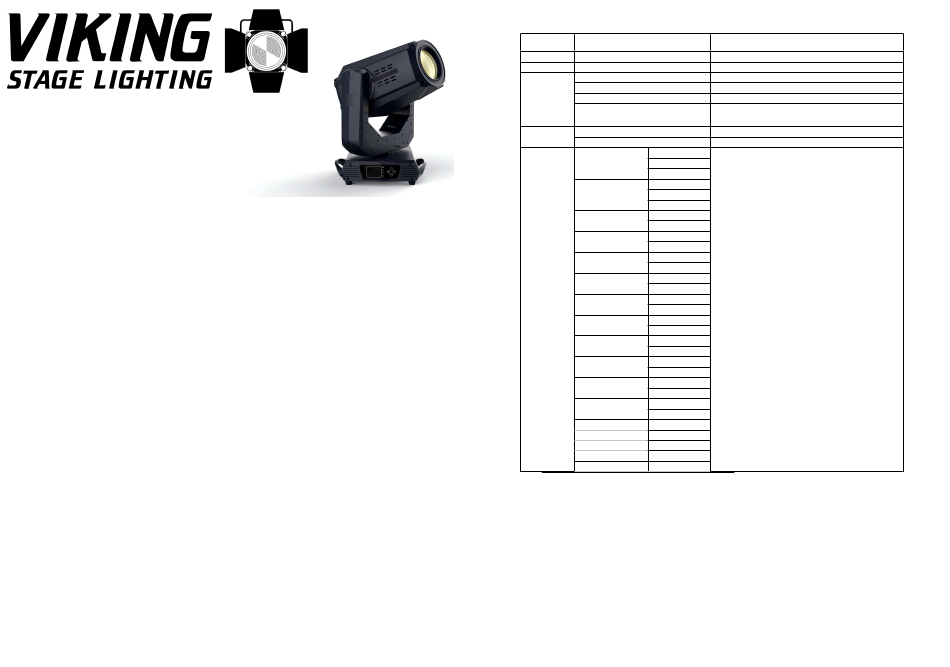

Viking Stage Lighting VK301 Vivid Instructions

VK301 Vivid
Instructions
LCD Display
Press the <UP> or <DOWN> button repeatedly until you reach the desired
Menu function. Press the <ENTER> button to select the menu function
Currently displayed, or to enable the menu option. To return to the previous option
Or menu without changing the value press the <MODE/ESC> button.
Ensure the transit locks on the head and arm are released before powering up the light and that
the head can move freely.
The unit can be hung using the omega style clamps provided (Gold Dot) and a 35kg safey bond.
If in any doubt, please contact Viking on (01603) 401982 prior to use.
LCD Display Menus
Top Menu Sub Menu
1.ADDRESS 1～512
2.TEST
DMX 512
Mic
Demo
3.RUNMODE
Program 1~8
English
4.LANGUAGE
Chinese
X RESET
X SCAN X REVERSE
X ADJ
Y RESET
Y SCAN Y REVERSE
Y ADJ
COLOUR1 RST
COLOUR1
COLOUR1 ADJ
COLOUR2 RST
COLOUR2
COLOUR2 ADJ
GOBO1 RST
GOBO1
GOBO1 ADJ
GOBO2 RST
GOBO2
GOBO2 ADJ
GOBOR RST
GOBO ROTATE
5.SETTING GOBOR ADJ
PRISM RST
PRISM
PRISM ADJ
ZOOM RST
ZOOM
ZOOM ADJ
FOCUS RST
FOCUS
FOCUS ADJ
IRIS RST
IRIS
IRIS ADJ
FROST RST
FROST
FROST ADJ
CMY CTO RESET
Cyan ADJ
Magenta ADJ
Yellow ADJ
LAMP LAMP ADJ
Instruction for use
Set DMX address
Test fixture
Control by DMX512
Run demo or program by mic
Run demo or program
Run manually edit the program,total 8 kinds, such as no
manual editing of the program does not display
All fine adjustment and reverse items are used in plant
trial in factory, and non-professionals no allowed to
operate the project. Improper operation may
permanently break the use of lighting effects. Fine tuning
operation must be entered pas sword is valid
