Viking Stage Lighting VK ST8be LED STROBE User Manual

With quicklock design
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

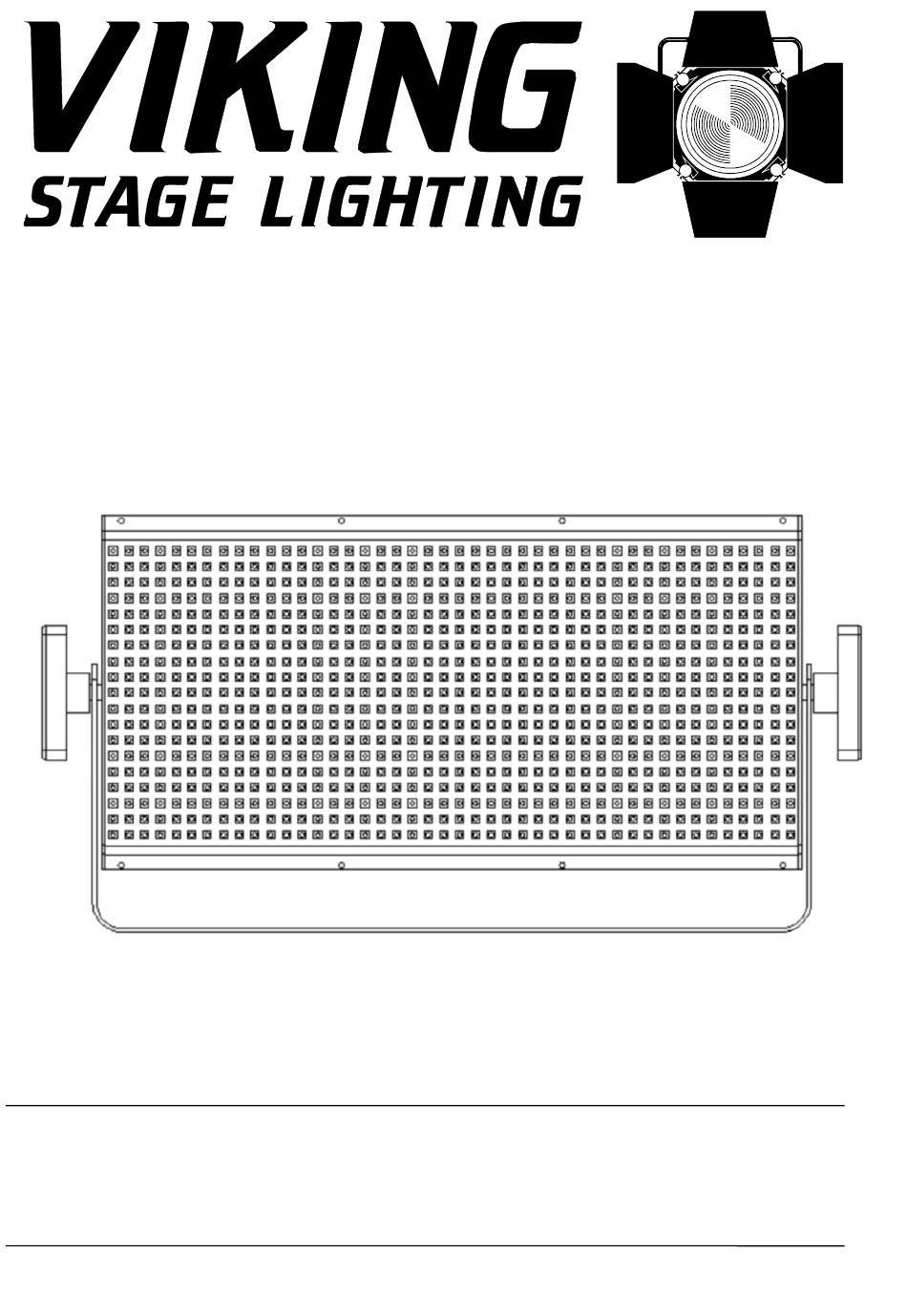

VK ST8be LED STROBE
with quicklock design
USER MANUAL
Rev 2.02 RGB & White Versions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK ST8be LED STROBE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viking Stage Lighting VK ST8be LED STROBE

Summary of Contents for Viking Stage Lighting VK ST8be LED STROBE

  • Page 1 VK ST8be LED STROBE with quicklock design USER MANUAL Rev 2.02 RGB & White Versions...
  • Page 2 VK ST8be LED Strobe / Panel Light The VK ST8be is a new sort of LED Strobe Light with a brand new concept in design that enables the unit to be used individually or built into larger modules up to a full LED wall for incredible White Blinding Effects or using the RGB version, a stunning wall of coloured pattens and Strobe effects.

  • Page 3: Safety Information

    Safety Information WARNING! ！ This product is for professional use only! It is not for household use Strobe lights are known to trigger epileptic seizures in persons who are photosensitive. This product must be installed by a competent person familiar with the construction and operation of the product and the hazards involved.

  • Page 4: Preparation For Use

    Preparation for Use Preparation for Use Unpacking • Strobe Light Fixture • User manual • DMX cable • Mains power cable • Trunion Arm Bracket, 2 Arm Knobs, Half Coupler Bracket & Hex Screws, Safety Eye The packing material protects the fixture during shipment, please retain for future transportation of the fixture.

  • Page 5: Controller Operation

    Controller Operation This section describes how to operate the light with a DMX controller. Data Connection The light provided 3-Pin 、 5-pin XLR connectors for data connection. The pin-out on all connectors is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.
  • Page 6 Function set - Menu Map Press MENU button to view the menus，press ENTER button to choose the menu ， press UP/DOWN button to view the function， press ENTER button to choose 。 To go back to main menu, please press MENU button。 Menu chart：...

  • Page 7: Dmx Protocol

    DMX Protocol RGB version 3 Channel mode Channel Function Value Percent Master Dimmer 0 -255 0-100 RGB and RGB mix 0 -255 0-100 0 -255 0-100 Strobe speed 0.5 to 25 times / sec 8 Channel mode Channel Function Value Percent Master Dimmer 0-255...
  • Page 8 29 Channel mode Channel Function Value Percent Master Dimmer 0-255 0-100 0-255 0-100 Segment 1 Red Segment 1 Green 0-255 0-100 0-255 0-100 Segment 1 Blue Segment 2 Red 0-255 0-100 0-255 0-100 Segment 2 Green Segment 2 Blue 0-255 0-100 Segment 3 Red 0-255...
  • Page 9 8 Channel mode Channel Function Value Percent 0-255 0-100 Seg 1 and seg 2 dimmer 0-255 0-100 Seg 3 and seg 4 dimmer 0-255 0-100 Seg 5 and seg 6 dimmer Seg 7 and seg 8 dimmer 0-255 0-100 Strobe speed 0.5 times / sec-25 times / sec 0-255 0-100 Strobe frequency...
