Appendix A Technical Specifications
Note

DC Power Entry Module

OL-11636-01
Connect each AC PEM to a separate AC power source.
A power factor corrector (PFC) allows the PEM to accept AC power source
voltage from an AC power source nominally operating between 100 to 120 VAC,
15-Amp service in North America; and a range of 185 to 264 VAC, 10-Amp
service, in an international environment.

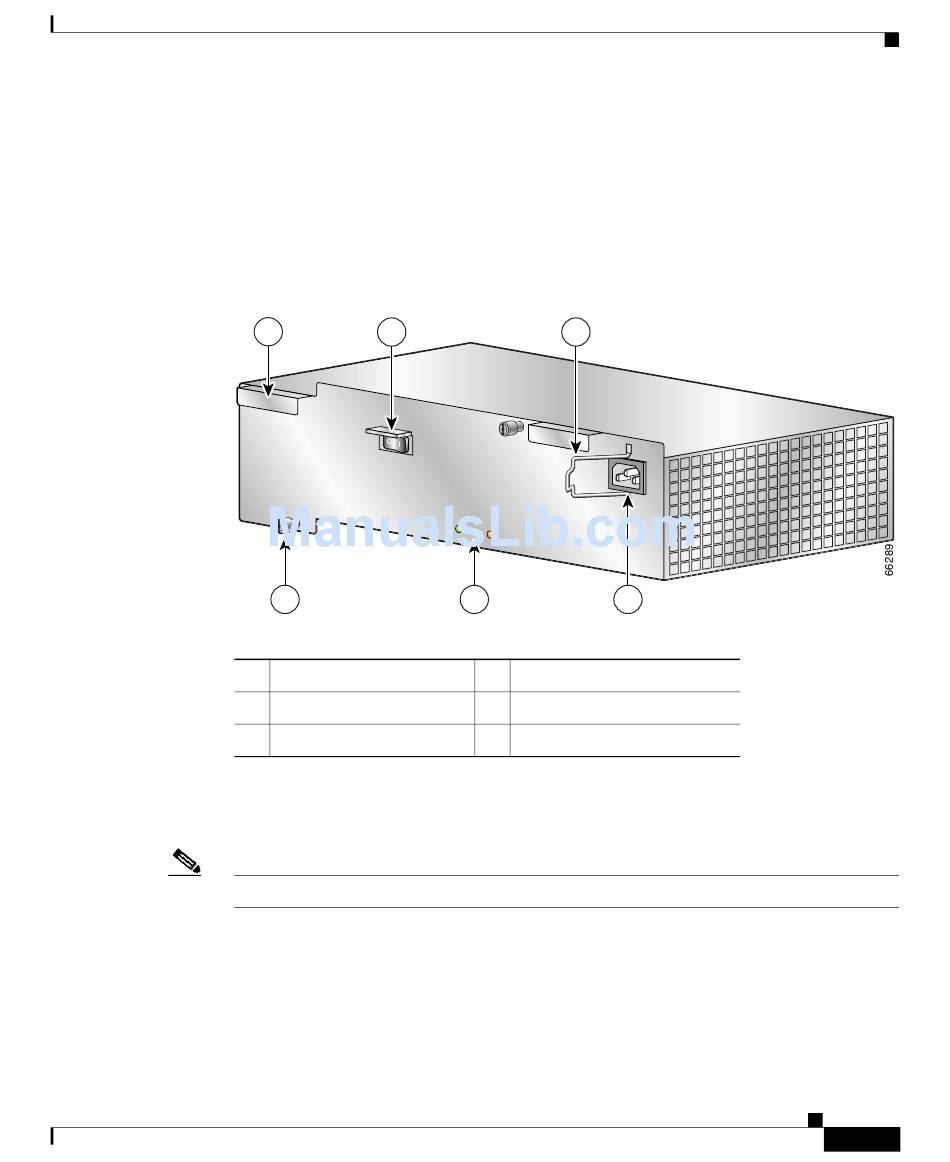

Figure A-6 AC PEM
1 2
6
1 AC PEM handle
2 On/Off switch
3
Bail Latch
A 14 ft. (4.3 m) AC power cord is supplied to connect the AC PEM to the power
source.
Install an uninterruptable power source (UPS) as a safeguard against power loss.
The DC PEM and DC PDU is a 2-part unit, which measures 6.60 inches
(16.76 cm) deep by 14.30 inches (36.32 cm) wide by 3.50 inches (8.89 cm) high
and weighs 14.0 lbs (6.35 kg). Refer to
Cisco 12404 Internet Router Installation and Configuration Guide
3
IN PU T
O UT PU IN PU T
T
O UT PU
O K
T
O K 10 0- 24 0V
FA IL
12 A
50 /8 0H Z
5 4
4 Power cord receptacle
5 LEDs
6
Captive screws
Figure A-7.
Product Architecture
A-23
