9.122003*
LASER
MARKED
Technical Data:
• Inlets - 3/4" NPT
• Working pressures: 15 psi Min - 75 psi Max.
• Shut off supply failure: <1 Second.
Performance:
• Factory temperature setting: 100°F (38°C)
• Temperature range: 52-118°F (11-48°C)
• Temperature Hot supply: 149-180°F (65-82°C)
• Temperature Cold supply: 50-72°F (10-22°C)
• Temperature Stability: ±32°F
• Ideal performance obtained with equal hot & cold pressures.
Issue 1
The Transitional Bathroom Collection
Installation & User Guide

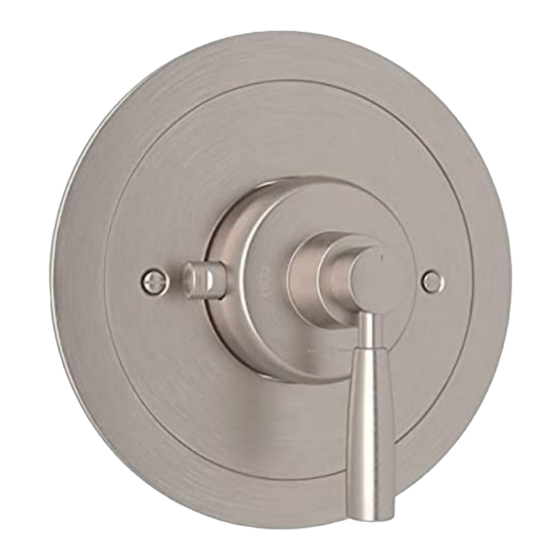

• U.5886TX
TRANSITIONAL CONCEALED THERMOSTATIC
SHOWER (TRIM ONLY)
USED WITH: U.5585R
• U.5885T LS
Advertisement
Related Manuals for Rohl Transitional Bathroom U.5886TX
Summary of Contents for Rohl Transitional Bathroom U.5886TX
- Page 1 arable alternative The Transitional Bathroom Collection Installation & User Guide required to keep the not use any products our guarantee. • U.5886TX • U.5885T LS TRANSITIONAL CONCEALED THERMOSTATIC SHOWER (TRIM ONLY) USED WITH: U.5585R 9.122003* LASER MARKED Technical Data: 9.21850* •...
- Page 2 The Transitional Bathroom Collection Installation & User Guide Congratulations on the purchase of your Perrin & Rowe bathroom tapware. Correctly installed and with sensible care, this product will give you many years of trouble free service. INSTALL TRIM IMPORTANT INFORMATION •...
- Page 3 lled and with sensible INSTALL TRIM • When finished tiling the wall, remove the plaster guard mber to install this (A) by removing x2 screws, and turn off water supply. • Fit fixing plate onto in-wall rough. carefully read and •...
- Page 4 All products supplied by ROHL carry warranties against manufacturing defects. Perrin & Rowe products carry a Limited Lifetime Warranty. ROHL LLC will provide free of charge, as its options, replacement part(s) or product (or a comparable alternative product) to replace those which have proven defective in materials or workmanship.
