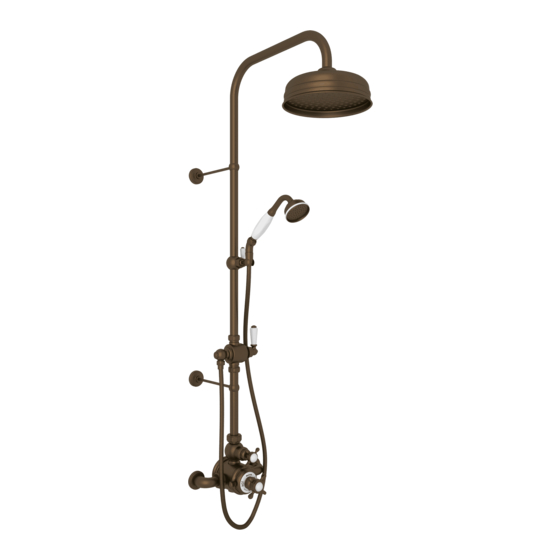

Edwardian exposed shower package
Hide thumbs

Advertisement

Quick Links

Download this manual
FEATURES
• Shower package components:
- U.5550L or U.5552X - Exposed Therm Mixer
- U.5373N -
Diverter, Handshower,
Parking Bracket & therm outlet
- U.5393
31" Riser
- U.5205
8" Showerhead
U.KIT1L
U.KIT1X
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
PERRIN & ROWE® EDWARDIAN EXPOSED SHOWER PACKAGE
Perrin & Rowe® Bath
U.KIT1NL (Lever Handles)
U.KIT1NX (Cross Handles)
COLORS/FINISHES
• Polished
Chrome
• Polished Nickel
• Satin Nickel
• English Bronze
• English Gold
U.5550L
U.5393
U.5205
www.rohlhome.com
WARRANTY
• See individual
component specs for
warranty
U.5373N
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PERRIN & ROWE U.KIT1NL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohl PERRIN & ROWE U.KIT1NL

Summary of Contents for Rohl PERRIN & ROWE U.KIT1NL

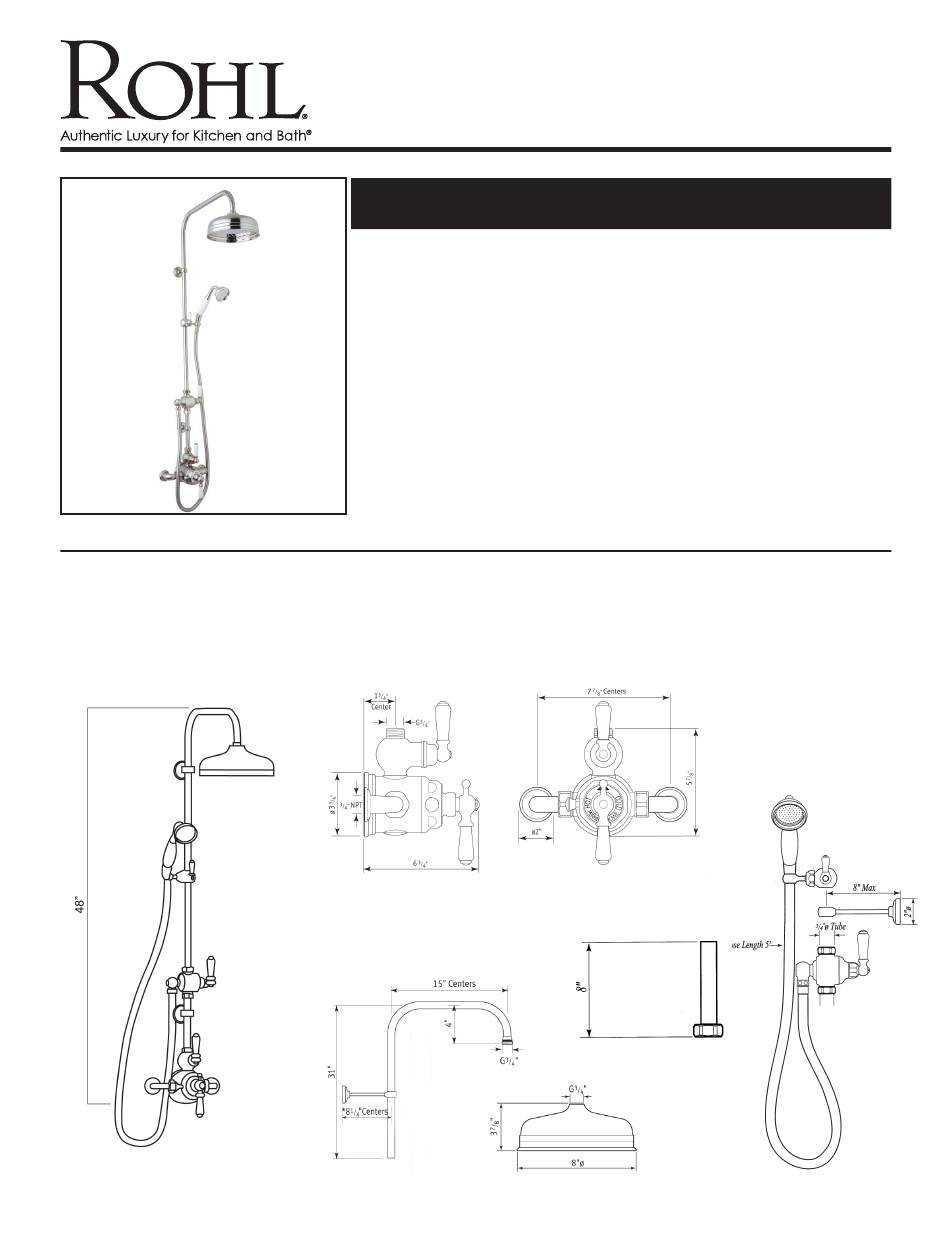

  • Page 1 31” Riser • English Bronze - U.5205 8” Showerhead • English Gold U.5550L U.KIT1L U.KIT1X U.5393 U.5205 U.5373N Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

  • Page 2: Warranty

    Additional functions should go off top with U.5397 • 14-16 GPM • Lever handle design • Includes both porcelain and metal lever inserts Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 3 U.5550L Spare Parts Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 4 • Additional functions should go off top with U.5397 • 14-16 GPM • Cross handle design Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 5 U.5552X Spare Parts Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 6 • Polished Nickel • 59" flexible metal • Satin Nickel • English ronze • English Gold Hose length 59” Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 7 U.5373N Spare Parts 9.24193* 9.26410 9.16538* 9.212337 9.30384* 9.11383* 9.14379* 9.13378 9.12600* 9.15402 Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 8 Rigid Riser Shower Outlets ROHL Perrin & Rowe Bath U.5381 (63” riser) U.5391 (40” riser) U.5393 (31” riser) U.5391 picured FEATURES COLORS/FINISHES WARRANTY • For use with exposed therm mixers • Polished • Limited Lifetime • Direct connection to outlet of shower or...
  • Page 9 www.rohlhome.com Riser Spare Parts...
  • Page 10 • English Gold • 3/4” NPSM connection • English ronze • Flow rate 2.0 GPM Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

  • Page 11: Installation Instructions

    E xp o s e d T he r mo s t a ti c Sho we r M ix e r s 905550U/2 01/08 Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 12 8 Elbow Unions x 2 8 Elbow Unions x 2 9 Rosettes x 2 9 Rosettes x 2 Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 13 Do not use any products with ammonia bleach or limescale everse of the removal remover. You will damage the plated finish and void your guarantee. Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 14 Section 1 of the Override Troubleshooting Guide on the following pages. Stop Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

  • Page 15: Flow Problems

    Override Locking Nut continued over ... Alignment Pin Stop using a 3mm AF Allen key. Do Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 16 Grub Scew out when the non-return valve 2.5mm opens. AF Allen Key Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 17 9.13501 Porcelain 9.09422* 9.01562* 9.24193* 9.01561 9.26411* Solid 9.12556* 9.245554 9.12556* 9.24193* 9.26410 Porcelain 9.26411* Solid 9.20556* 9.20556* Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
  • Page 18 INSTALLATION INSTRUCTIONS Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
