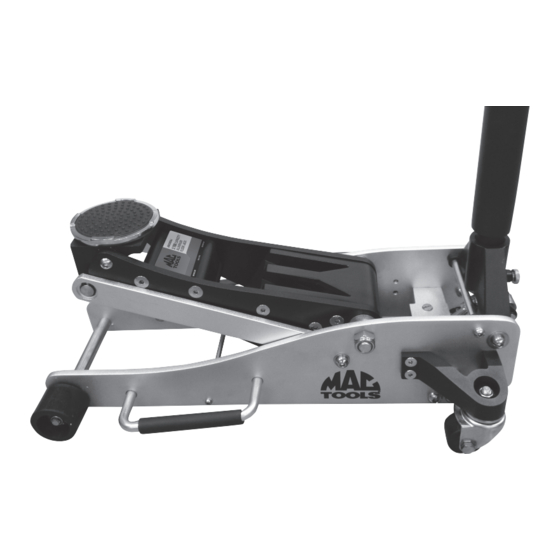

JSA300AJ
3 TON
CAPACITY ALUMINUM
FLOOR JACK
OWNER'S MANUAL
SPECIFICATIONS
Maximum Capacity ............................................................3 TONS
Minimum Height ...................................................................3.75"
Maximum Height .................................................................19.29"
Overall Length .....................................................................29.13"
Overall Width ......................................................................13.39"
Handle Length .....................................................................47.83"
Saddle Diameter ...................................................................4.57"
Shipping Weight ............................................................55.12 Lbs.
Copyright © Professional Tool Products, 2014
All rights reserved
JSA300AJ
01/13/14
Advertisement
Table of Contents
Related Manuals for MAC TOOLS JSA300AJ
Summary of Contents for MAC TOOLS JSA300AJ
- Page 1 JSA300AJ 3 TON CAPACITY ALUMINUM FLOOR JACK OWNER'S MANUAL SPECIFICATIONS Maximum Capacity ............3 TONS Minimum Height ..............3.75" Maximum Height ..............19.29" Overall Length ..............29.13" Overall Width ..............13.39" Handle Length ..............47.83" Saddle Diameter ..............4.57" Shipping Weight ............55.12 Lbs. Copyright © Professional Tool Products, 2014...
-
Page 2: Warning Information
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not legible, contact Mac Tools for replacements. - Page 3 JSA300AJ 3 TON CAPACITY ALUMINUM FLOOR JACK INSPECTION Visual inspection should be made before each use of the jack, checking for leaking hydraulic fluid and damaged, loose or missing parts. Any jack which appears to be damaged in any way, is found to be badly worn, or operates abnormally MUST BE REMOVED FROM SERVICE until necessary repairs are made. Handle Handle Socket Handle Socket Bolt...
-
Page 4: Preventive Maintenance
3. Every jack owner is responsible for keeping the jack labels clean and readable. Use a mild soap solution to wash external surfaces of the jack but not any moving hydraulic components. Contact Mac Tools for replacement label if your jack label is not readable. 4. Inspect the jack before each use. Do not use the jack if any component is cracked, broken, bent, shows sign of damage or leaks hydraulic fluid. Do not use the jack if it has loose or missing hardware or components, or is modified in any way. -
Page 5: Regular Maintenance
JSA300AJ 3 TON CAPACITY ALUMINUM FLOOR JACK HYDRAULIC MAINTENANCE gUIDE IMPORTANT: Service jacks are designed for lifting purposes only; always support raised load with jack stands. REgULAR MAINTENANCE MONTHLY or as necessary (depending on usage) #1 Using a grease gun, add grease to grease fitting in the lift arm pivot shaft. (Use a multi-purpose NLGI type grease only.) #2 Lubricate all linkages and pivot points. -
Page 6: Proper Storage
This warranty does not cover damage to equipment or tools arising from alteration, abuse, misuse, damage and does not cover any repairs or replacement made by anyone other than Mac Tools. The foregoing obligation is Mac Tools sole liability under this or any implied warranty and under no circumstances shall we be liable for any incidental or consequential damages. -
Page 7: Parts List And Diagram
PARTS LIST AND DIAgRAM JSA300AJ 3 TON CAPACITY ALUMINUM FLOOR JACK Item No. Part No. Description Qty. Item No. Part No. Description Qty. 1 RSALJ3T38 Rubber Saddle Pad 14 RSALJ3T62BK Upper Handle 2 RSALJ3T37 Saddle Bolt 15 RSALJ3T60BK Lower Handle RSALJ3T36 Saddle 16 RS300AJHB Handle Bumper...
