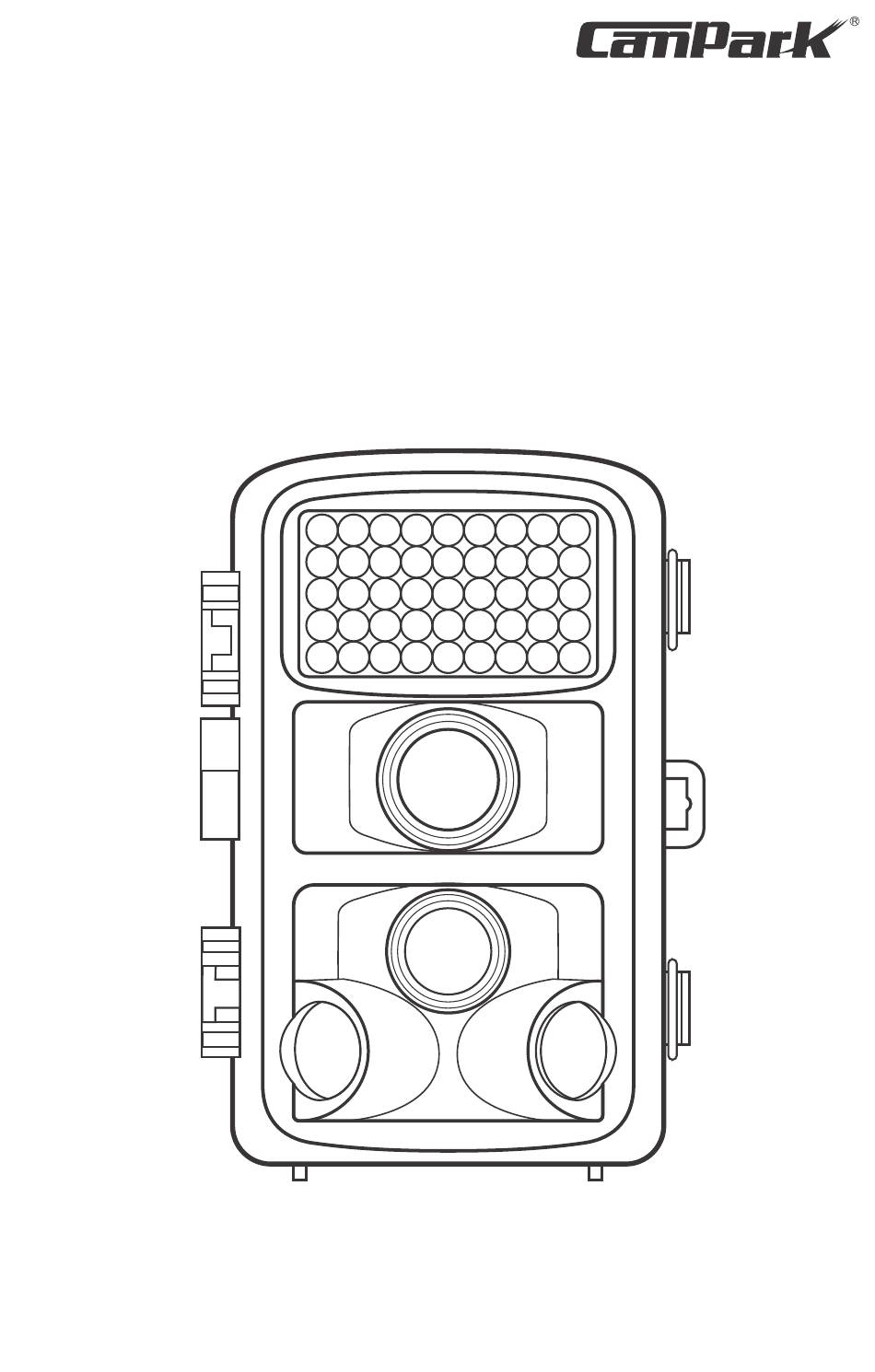

  • Page 1 T45 A Trail Camera Instruction Manual...
  • Page 3 Nous vous répondrons rapidement et avec autorité dans les 24 heures et ferons de notre mieux pour résoudre votre problème dès que possible avec la garantie plus sûre de Campark! Si vous n'êtes pas satisfait de notre produit, dites-le nous s'il vous plaît. Ce sera très apprécié.

  • Page 5: Table Of Contents

    Contents 1.PACKING LIST ................0 1 2.INSTRODUCTION ................0 1 3.STRUCTURE ................02 ............04 4.PREPARING THE CAMERA 5.USING THE CAMERA AND SETUP MENU ........06 5.1 Using the camera ..............06 ................07 5.2 Setup menu 6.ENTERING AUTOMATIC MONITORING ........1 3 6.1 Adjusting and installing the camera ..........1 3 6.2 Setting up the live mode .............1 5...

  • Page 7: Packing List

    1. PACKING LIST Please carefully unpack camera and check that below accessories are contained in the box. 1.Wildlife Camera x 1 2.USB Cable x 1 3.Instruction Manual x 1 4.Mounting Belt x 1 5.Wall Mount x 1 6.Screws x 3 2.

  • Page 8: Structure

    5.Full automatic IR filter. 6.Trigger speed: Approx. 0.3 second. 7.Setup Serial No. to record the position. 8.Time, date, temperature, phase and Serial No. will be stamped on the photo. 9.Password protection. 10.Power indicating. 11.Built-in test function about environmental temperature. 12.Built-in microphone and speaker. 13.Mini USB 2.0 interface.
  • Page 9 4.Display screen 14.AV jack 5.Up  button 15.USB jack 6.Menu button 16.ON 7.Left button 17.SETUP 8.Replay button 18.OFF 9.Shot button 19.Battery compartment 10.Right button 20.Seal ring 11.OK button 21.DC connection 6V/1.5A 12.Down button 22.1/4" Tripod thread 13.TF Slot...

  • Page 10: Preparing The Camera

    23.Locking brackets 24.Slot for mounting belt ▲ 1.The monitor is only switched on in the SETUP mode for changing menu settings or viewing existing photos and videos. 2.A micro SD memory card must have been inserted into the memory card slot to save photos and videos. 3.Using the mini USB connection (USB 2.0), the camera can be connected to a computer to download photos and videos.
  • Page 11 2.Instead of type LR6 (AA) batteries with the same specification (with 2000 mAh or higher) may be used. We recommend NiMh batteries with low self discharge (not supplied). 3.The camera must be inserted 4 or 8 x 1 .5V AA batteries . Do not use new and old batteries together.

  • Page 12: Using The Camera And Setup Menu

    (this step can be skipped)—choose to setup system time. Open the battery cover ► Insert 8pcs batteries. Battery model: AALR6 > Ensure that the lateral write protection on the memory card has not been activated > Insert CLASS6 or above Micro SD memory card in the memory card slot before switching on the camera and select SETUP mode to adjust settings Assembly With Strap...

  • Page 13: Setup Menu

    2.Mode Switch 2.1 Shift the switches to choose work mode: ON-SETUP-OFF SETUP -OFF SETUP -OFF Power off (OFF) Setup system (SETUP) Live mode (ON) 2.2 Press Up/Down key to switch modes between Video and Photo mode. 2.3 Press the MENU key to open setting menu.Press OK to confirm the setting changes.
  • Page 14 2.Photo Resolution 20M/16M/12M/8M/5M Select the desired resolution for photos. We recommend the resolution 8M. A higher resolution produces a somewhat better photo quality but results in larger files requiring more space on the memory card 12M and 8M resolution are generated by interpolation which can also affect quality. Taking 16GB memory card for example: Photo Size(Mb)
  • Page 15 5.Video Length ▲ Default 5 seconds, optional 3s-59s, 1-10Minutes Specify the duration of a video recording when the camera is trigged automatically. The recording period for videos is not limited in the SETUP mode. 1. In the SETUP mode in daytime and at night. >...
  • Page 16 7.Shot lag ▲ Defaulted 1 MIN. optional from 5 seconds-60 minutes. Select the shortest period for the camera to wait before it reacts to the successive triggering of the main sensor after an animal has first been detected. The camera does not record any photos or videos during the selected interval.
  • Page 17 11.Language Select the desired menu language. The following languages are available: English, German, French, Spanish, Chinese, etc. 12.Time&date Pr e s s "MENU" t o f i n d T i m e & D a t e". Press "OK",then sel e c t "ON" to sel th e s e t t ings.
  • Page 18 17.Serial NO. Press "OK", and then select "ON" to set the serial number for the camera. You can use a combination of 4 digits to documents the location on the photos. When using several cameras, this makes it easier to identify the location when viewing photos.

  • Page 19: Adjusting And Installing The Camera

    21.Write pro t e c tion >This function can be used to protect individual recordings of all saved recordings from accidental deletion. >Select "Write-protect current file" to protect the currently selected recording from accidental deletion. >Select "Write-protect all files" to protect all saved recordings from accidental deletion.
  • Page 20 The red LED will flash and counts down for 5 seconds when you just switch to Live Mode(ON), and then the camera works automatically and enters the Standby Mode. Also check that the camera is set to the correct height in line with the point to be observed.

  • Page 21: Setting Up The Live Mode

    6.2 Setting Up The Live Mode The standard application of the Wildlife Camera is the Live mode. In this mode , photos are either triggered by movement sensors or at intervals according to the respective setting. To set up the Live mode , switch mode switch to ON position. The red LED will flash and counts down for 5 seconds when you just switch to Live Mode(ON), and then the camera works automatically and enters the Standby Mode.

  • Page 22: Connection To Computer

    7. Connection to computer Please shift Mode to “SETUP ” , and connect the camera to computer with USB cable, the camera LCD will show " MSDC prompt .This indicates connecting successfully. And then read or copy the data in SD card to the computer.

  • Page 23: Techincal Specification

    8. TECHNICAL SPECIFICATION Element Macintosh Image sensor 20 Megapixel CMOS sensor 20M/16M/12M/8M/5M Photo resolution 6.1cm (2.4”) color TFT LCD; Screen 320x240 pixels Supports Micro SD memory cards Recording medium up to 32 GB (optional) Video resolutions 4K lite/2.7K/1080P/720P/480P F2.5, f=3.6mm Lens The distance of night version Triggering distance...

  • Page 24: Simple Trouble Shooting

    9.SIMPLE TROUBLE SHOOTING 1.Please check whether the batteries are installed in proper way. 2.Check if the battery capacity is low The camera will not turn on or exhausted. If so, please replace by new batteries. 1. Please check whether the battery capacity is low or exhausted.

  • Page 25: Care

    9.1 Care Do not use any corrosive cleaners, such as methylated spirits, thinners, etc. to clean the camera housing and supplied accessory. When required, the clean system components with a soft dry cloth. 9.2 Storage Always remove the battery from the housing if the camera is not being used for some time and store the battery separately.
