Summary of Contents for Continental Refrigerator TCAM1NA2

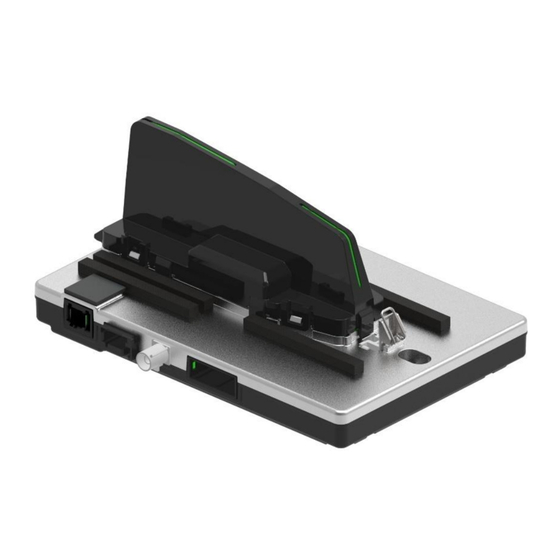

- Page 1 User Manual Document: TCAM Product: Telematics and Connectivity Antenna Module Model: TCAM1NA2 Date: 15. Oct 2021 Number of pages:...
-
Page 2: Table Of Contents
ATEWAY ODULE DESCRIPTION OF THE TCAM MODULE ..................... 8 ............................8 RODUCT FEATURES : ............................9 IRELESS SERVICES : ..............................10 NTERFACES TCAM1NA2 : ......................10 INTERNAL NTENNAS TECHNICAL DATA ............................11 ........................11 TORAGE TEMPERATURE ANGE ....................... 11 PERATING TEMPERATURE ANGE ............................ -
Page 3: Scope Of Document
1 Scope of Document The aim of this document is to provide a short overview on the TCAM module model TCAM1NA2 and to describe the TCAM. 2 General Product Information Product type: Telematics and Connectivity Antenna Module (TCAM) Manufacturer, Applicant:... -
Page 4: System Overview
The TCAM is connected to the power supply via a four-pin battery connector, and to the vehicle interfaces via a 20 pin connector and a BroadR-Reach connector. 4 North America (NA) Variant Model number: TCAM1NA2 Model number TCAM Variant SIM Variant / MNO... -
Page 5: Mechanical Design
OHC (Overhead Compartment) with built-in microphones • Backup speaker • IHU (Infotainment Head Unit) • CEM (Central Electronic Module) • OBC (On Board Charger) USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 5 / 15 nicht gefunden werden. -
Page 6: Ohc (Overhead Compartment) - By Volvo
The OHC acts as the operation panel of the system. It consists of the following: • Volvo onCall button (Road Assistance call) • Call status indicator LED • Microphone • Slot for private SIM card Figure: Overhead Compartment USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 6 / 15 nicht gefunden werden. -
Page 7: Backup Speaker- By Volvo
The DIM is the Volvo driver information display on the dashboard. Fault messages will be displayed there. VGM (Vehicle Gateway Module) The VGM from Continental handles the interconnection between TCAM, IHU and DIM. USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 7 / 15 nicht gefunden werden. -
Page 8: Description Of The Tcam Module
7 Description of the TCAM module Product features The TCAM1NA2 main parts are: • Antennas for cellular, WLAN, BLE, ISM receiver (RKE), SDARS with LNA • GNSS with LNA for Navigation: Beidou, Galileo, GPS, Glonass • Antenna selection via RF switches •... -
Page 9: Wireless Services
Car Access, Tire pressure Monitoring: o Contains an FCC tested ISM RF receiver module • WLAN a/b/g/n/ac • Access point • Station/client • • Data Services USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 9 / 15 nicht gefunden werden. -
Page 10: Interfaces
Interfaces: • • • BroadReach • USB (for development only) TCAM1NA2 internal Antennas: • Tel1 antenna: 2G/3G/LTE1 (outside verhicle) • Tel2 antenna: LTE2 (Rx LTE only), Wi-Fi extern antenna (outside vehicle) • Backup telephone antenna: 2G/3G/LTE (inside vehicle) • Wi-Fi internal antenna (inside vehicle) •... -
Page 11: Technical Data
Typical active current consumption: 350 mA dc (at 12 V) (Cellular, Wi-Fi, BLE, GNSS active) Power Consumption Typical power consumption: 4.2 W dc (cellular, Wi-Fi, BLE, GNSS active) USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 11 / 15 nicht gefunden werden. -
Page 12: Wireless Services
FDD Band 12 (700 LTE): 698-716 / 728-746 MHz, FDD Band 13 (750 LTE): 777-787 / 746-756 MHz Electrical output power: +23.0 dBm (+/- 1dB) USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 12 / 15 nicht gefunden werden. -
Page 13: Gnss Receiver
Electrical output power: 5725 - 5850 MHz: ≤ 24 dBm Bluetooth Low Energy: Wireless service: Frequency bands / range: 2400-2483.5MHz ≤ 4 dBm Electrical output power USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 13 / 15 nicht gefunden werden. -
Page 14: Label Information
10 Label Information 10.1 USA/Canada Continental Model: TCAM1NA2 FCC ID: KR5TCAM1NA2 IC: 7812D-TCAM1NA2 Contains FCC ID: LHJ-BL28NARD1 Contains IC: 2807E-BL28NARD1 11 Owner Manual Statements 11.1 Owner manual USA/Canada Continental Model: TCAM1NA2 FCC ID:KR5TCAM1NA2 IC:7812D–TCAM1NA2 Contains FCC ID: LHJ-BL28NARD1 Contains IC: 2807E-BL28NARD1 This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). - Page 15 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. ND OF OCUMENT USER MANUAL Chap. 0 Version: TCAM1NA2 Fehler! Verweisquelle konnte Page 15 / 15 nicht gefunden werden.
