Continental Refrigerator TCAM1NA0 User Manual

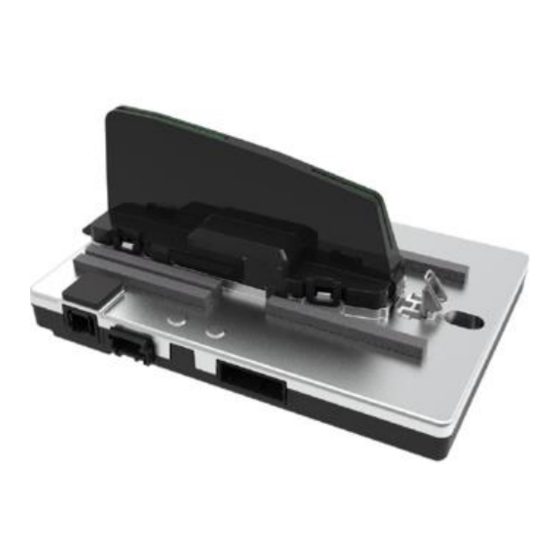

Telematics and connectivity antenna module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Document:
Product:
Model:
Date:
Number of pages:
User Manual
TCAM
Telematics and Connectivity Antenna Module
TCAM1NA0
17. July 2020
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCAM1NA0 and is the answer not in the manual?

Questions and answers

Related Manuals for Continental Refrigerator TCAM1NA0

Summary of Contents for Continental Refrigerator TCAM1NA0

  • Page 1 User Manual Document: TCAM Product: Telematics and Connectivity Antenna Module Model: TCAM1NA0 Date: 17. July 2020 Number of pages:...

  • Page 2: Table Of Contents

    LUETOOTH NERGY LABEL INFORMATION ..........................13 10.1 USA/C ............................... 13 ANADA OWNER MANUAL STATEMENTS ....................... 13 11.1 USA/C ........................13 WNER MANUAL ANADA USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 2 / 14 nicht gefunden werden.

  • Page 3: Scope Of Document

    1 Scope of Document The aim of this document is to provide a short overview on the TCAM module model TCAM1NA0 and to describe the TCAM in order to support the homologation activities. 2 General Product Information Product type: Telematics and Connectivity Antenna Module (TCAM)

  • Page 4: System Overview

    The TCAM is connected to the power supply via a four-pin battery connector, and to the vehicle interfaces via a 20 pin connector and a BroadR-Reach connector. 4 North America (NA) Variant Model number: TCAM1NA0 Model number TCAM Variant SIM Variant / MNO...

  • Page 5: Mechanical Design

    OHC (Overhead Compartment) with built-in microphones • Backup speaker • IHU (Infotainment Head Unit) • CEM (Central Electronic Module) • OBC (On Board Charger) USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 5 / 14 nicht gefunden werden.

  • Page 6: Ohc (Overhead Compartment) - By Volvo

    • Volvo onCall button (Road Assistance call) • Call status indicator LED • Microphone • Slot for private SIM card Figure: Overhead Compartment USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 6 / 14 nicht gefunden werden.

  • Page 7: Backup Speaker- By Volvo

    The DIM is the Volvo driver information display on the dashboard. Fault messages will be displayed there. VGM (Vehicle Gateway Module) The VGM from Continental handles the interconnection between TCAM, IHU and DIM. USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 7 / 14 nicht gefunden werden.

  • Page 8: Description Of The Tcam Module

    7 Description of the TCAM module Product features The TCAM1NA0 main parts are: • Antennas for cellular, WLAN, BLE, ISM receiver (RKE), SDARS with LNA • GNSS with LNA for Navigation: Beidou, Galileo, GPS, Glonass • Antenna selection via RF switches •...

  • Page 9: Wireless Services

    Car Access, Tire pressure Monitoring: o Contains an FCC tested ISM RF receiver module • WLAN a/b/g/n/ac • Access point • • Data Services USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 9 / 14 nicht gefunden werden.

  • Page 10: Interfaces

    Interfaces: • • • BroadReach • USB (for development only) TCAM1NA0 internal Antennas: • Tel1 antenna: 2G/3G/LTE1 • Tel2 antenna: LTE2 (Rx LTE only), Wi-Fi extern antenna • Backup telephone antenna: 2G/3G/LTE • Wi-Fi internal antenna • GNSS antenna •...

  • Page 11: Technical Data

    Typical active current consumption: 350 mA dc (at 12 V) (cellular, Wi-Fi, BLE, GNSS active) Power Consumption Typical power consumption: 4.2 W dc (cellular, GNSS active) USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 11 / 14 nicht gefunden werden.

  • Page 12: Wireless Services

    Glonass band L1: 1602 MHz BeiDou L1 band: 1561 MHz ISM receiver: Wireless service: ISM Receiver Frequency bands / range: ISM Band 434 MHz USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 12 / 14 nicht gefunden werden.

  • Page 13: Wi-Fi

    U-NII-3 without DFS Bluetooth Low Energy: Wireless service: Frequency bands / range: 2400-2483.5MHz 10 Label Information 10.1 USA/Canada Continental Model: TCAM1NA0 FCC ID:KR5TCAM1NA0 IC:7812D-TCAM1NA0 11 Owner Manual Statements 11.1 Owner manual USA/Canada Continental Model: TCAM1NA0 FCC ID:KR5TCAM1NA0 IC:7812D–TCAM1NA0 This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s).
  • Page 14 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. ND OF OCUMENT USER MANUAL Chap. 0 Version: 4.0 TCAM1NA0 Fehler! Verweisquelle konnte Page 14 / 14 nicht gefunden werden.
