Through the connection of 1 remote sensor, the BX180 control unit has been designed and built according to European
regulations to detect the presence of toxic and/or explosive gas flexibly.
A microprocessor is used to create a complete surveillance and control system with maximum flexibility. Thanks to this
and its other features, the BX180 is suitable for civil and industrial applications.
The BX180 control unit has two danger levels:
1
st
LEVEL, 1
st
Pre-Alarm. This was set at 13 % of L.E.L. for all sensors.
2
nd
LEVEL, Main Alarm. This was set at 20% of L.E.L.
Other technical features make this control unit extremely versatile and reliable; for example, by using a series of micro-
switches it is possible to:
Select or disable the probe when not installed or faulty;
Select the type of gas to be detected (toxic or explosive);
Choose the relay functioning mode (pulsed or continuous);
Choose the main alarm relay shut-down time.

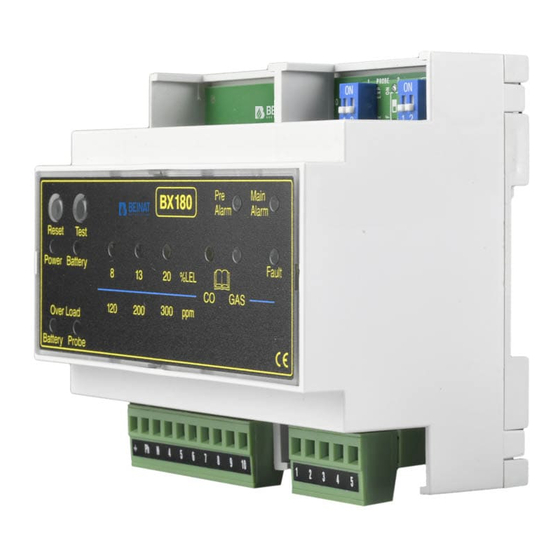

A TEST button checks the efficiency of both the unit and connected probe to ensure total control of the BX180.
Thanks to the Omega-type format both small and large systems can be built by exploiting the modularity of the DIN
rail in the previously set electrical panels.
In addition to the alarm signal light, it is fitted with an internal buzzer.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and keep
it for future reference. It is also recommended to perform the electrical connections correctly as per enclosed
drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
Installation
and user guide

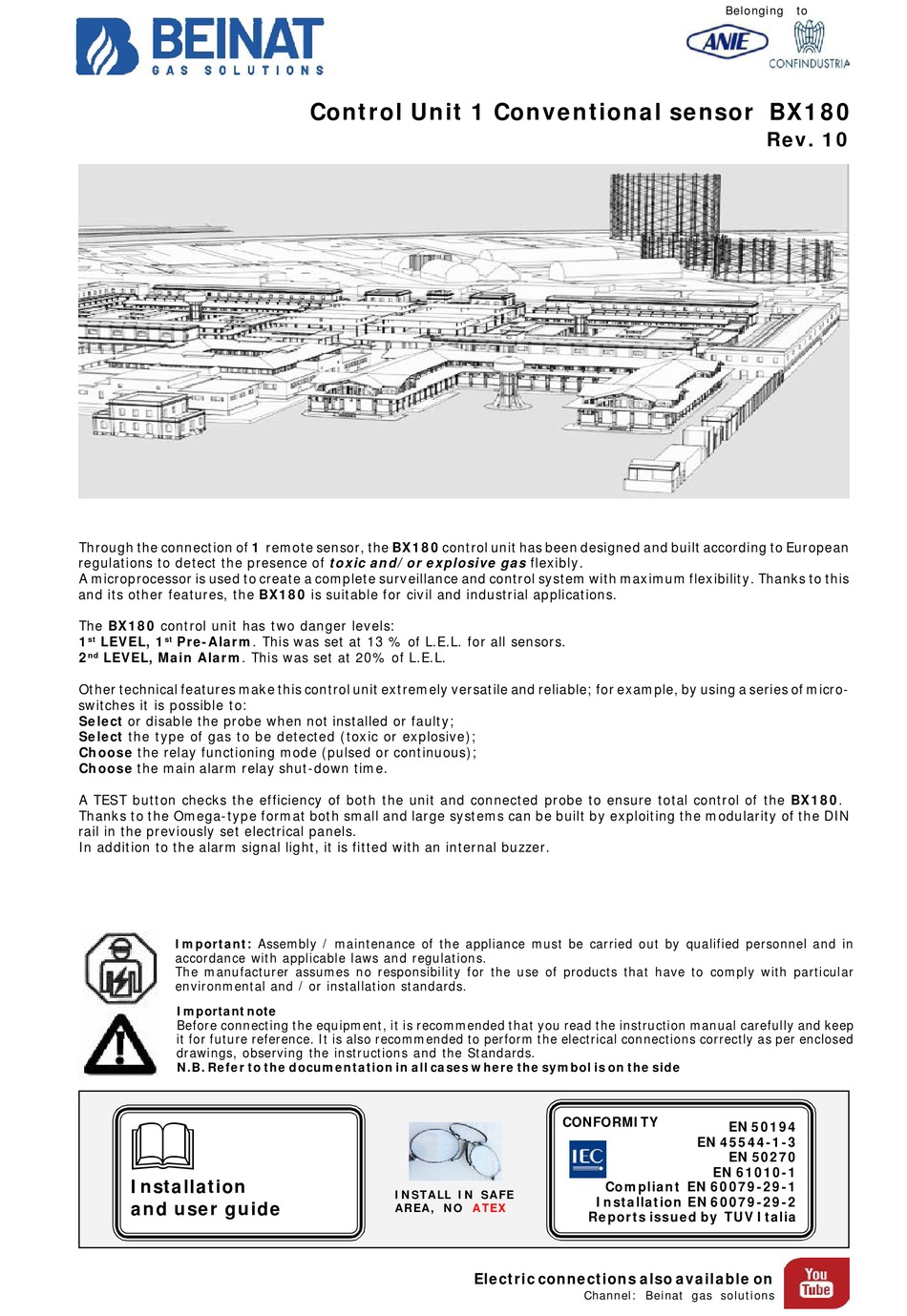

Control Unit 1 Conventional sensor BX180
INSTALL IN SAFE
AREA, NO
ATEX
Electric connections also available on
Belonging
CONFORMITY
EN 50194
EN 45544-1-3
EN 50270
EN 61010-1
Compliant EN 60079-29-1
Installation EN 60079-29-2
Reports issued by TUV Italia
Channel: Beinat gas solutions
to
Rev. 10
Advertisement
Related Manuals for BEINAT BX180
Summary of Contents for BEINAT BX180
- Page 1 Choose the main alarm relay shut-down time. A TEST button checks the efficiency of both the unit and connected probe to ensure total control of the BX180. Thanks to the Omega-type format both small and large systems can be built by exploiting the modularity of the DIN rail in the previously set electrical panels.
-
Page 2: Technical Specifications
When doing the electrical connections, follow the drawing closely. Any use of the detector for purposes other than the intended one is considered improper, and as a result of which BEINAT S.r.l. therefore disclaims any responsibility for possible damages caused to people, animals or objects. - Page 3 Main Compatible Probes Probe Sensor Degree Suitable for Range Output Precis. Calibration Relay Protec. Detected Working Automatic Sensor SG500 Catalytic IP30 Domestic Use CH4-LPG 0÷100% LEL 4÷20 mA ±5 % SG544 Catalytic IP44 Tertiary CH4-LPG 0÷100% LEL 4÷20 mA ±5 % SGM595 Catalytic IP55...
- Page 4 When this LED is blinking the BX180 is not capable of detecting gas. 2) BATTERY LED. This LED lights up when no mains is present and the BX180 is powered by the battery. When this led is blinking the battery is flat.
- Page 5 In the ON position, the intrinsic safety function is enabled. In the OFF position, the intrinsic safety function is disabled. The relay is energized only when the BX180 goes into the mainl alarm Switch 2 - Working mode of the relay and the main alarm.
- Page 6 An automatic cut-off switch (appropriately identified as devicesectioning of the detector) should be incorporated in the electrical system, adequatelylocated and easily accessible. BX180 Ma in Ala rm Ala rm...
- Page 7 Direct connection of 12VDC solenoid valves or sirens to the BX180 is not permitted. An external power unit must always be used. The BX180 gives a max current of 50mA Control unit power supply and connection of one solenoid valve with sirens to 12 VDC trough an alternative source and recharge battery.
-
Page 8: Electrical Connections
Direct connection of 12VDC solenoid valves or sirens to the BX180 is not permitted. An external power unit must always be used. The BX180 gives a max current of 50mA Connections to Positive Safety disabled and an external power supply for... - Page 9 The sensor must be selected with an IP degree depending on the area to be controlled (Kitchens, Boiler Rooms, Laboratory, etc.) by selecting one of the probes from Beinat from IP30 to ATEX. see page 3 Position of the detection sensor You can connect many types of remote probes to this unit.
- Page 10 Check that the 230V mains power is correctly connected. If powered by the battery, check that the 12Vdc power is correctly connected. If the Fault LED lights up. Check that the connecting cables from the BX180 to the probes are intact, that the probes are properly powered, and that the signal cable is correctly connected. Vol tmeter...
- Page 11 N O T E Page 11...
-
Page 12: Control Unit
Dealer stamp Purchase date: Serial number: Beinat S.r.l. following the purpose of improving its products, it reserves the right to modify the technical, aesthetic and functional characteristics at any time and without giving any notice. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) -ITALY Tel.
