BEINAT BX444-Mc Manual

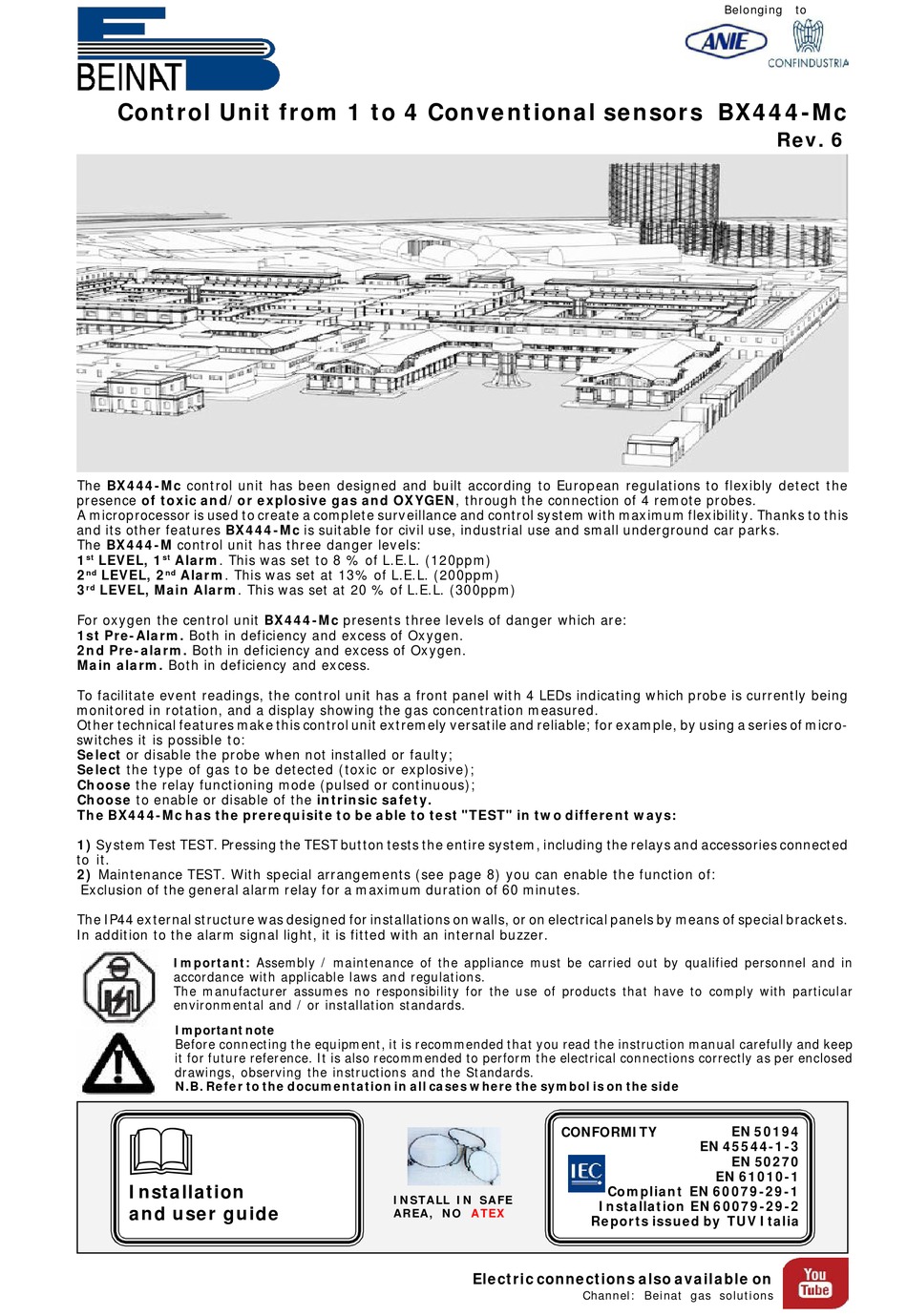

Control Unit from 1 to 4 Conventional sensors BX444-Mc
The BX444-Mc control unit has been designed and built according to European regulations to flexibly detect the
presence of toxic and/or explosive gas and OXYGEN, through the connection of 4 remote probes.
A microprocessor is used to create a complete surveillance and control system with maximum flexibility. Thanks to this
and its other features BX444-Mc is suitable for civil use, industrial use and small underground car parks.
The BX444-M control unit has three danger levels:
st st
1 LEVEL, 1 Alarm. This was set to 8 % of L.E.L. (120ppm)
nd nd
2 LEVEL, 2 Alarm. This was set at 13% of L.E.L. (200ppm)
rd
3 LEVEL, Main Alarm. This was set at 20 % of L.E.L. (300ppm)
For oxygen the centrol unit BX444-Mc presents three levels of danger which are:
1st Pre-Alarm. Both in deficiency and excess of Oxygen.
2nd Pre-alarm. Both in deficiency and excess of Oxygen.
Main alarm. Both in deficiency and excess.

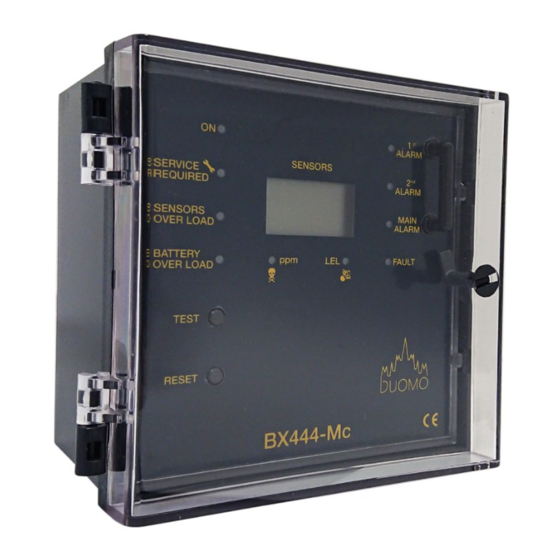

To facilitate event readings, the control unit has a front panel with 4 LEDs indicating which probe is currently being
monitored in rotation, and a display showing the gas concentration measured.
Other technical features make this control unit extremely versatile and reliable; for example, by using a series of micro-
switches it is possible to:
Select or disable the probe when not installed or faulty;
Select the type of gas to be detected (toxic or explosive);
Choose the relay functioning mode (pulsed or continuous);
Choose to enable or disable of the intrinsic safety.
The BX444-Mc has the prerequisite to be able to test "TEST" in two different ways:
1) System Test TEST. Pressing the TEST button tests the entire system, including the relays and accessories connected
to it.
2) Maintenance TEST. With special arrangements (see page 8) you can enable the function of:
Exclusion of the general alarm relay for a maximum duration of 60 minutes.
The IP44 external structure was designed for installations on walls, or on electrical panels by means of special brackets.
In addition to the alarm signal light, it is fitted with an internal buzzer.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and keep
it for future reference. It is also recommended to perform the electrical connections correctly as per enclosed
drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side

Installation
and user guide
CONFORMITY
INSTALL IN SAFE
AREA, NO ATEX
Electric connections also available on
Belonging
EN 50194
EN 45544-1-3
EN 50270
EN 61010-1
Compliant EN 60079-29-1
Installation EN 60079-29-2
Reports issued by TUV Italia
Channel: Beinat gas solutions
to
Rev. 6
